38Manual maxGUARD2526740000/02/03.2018

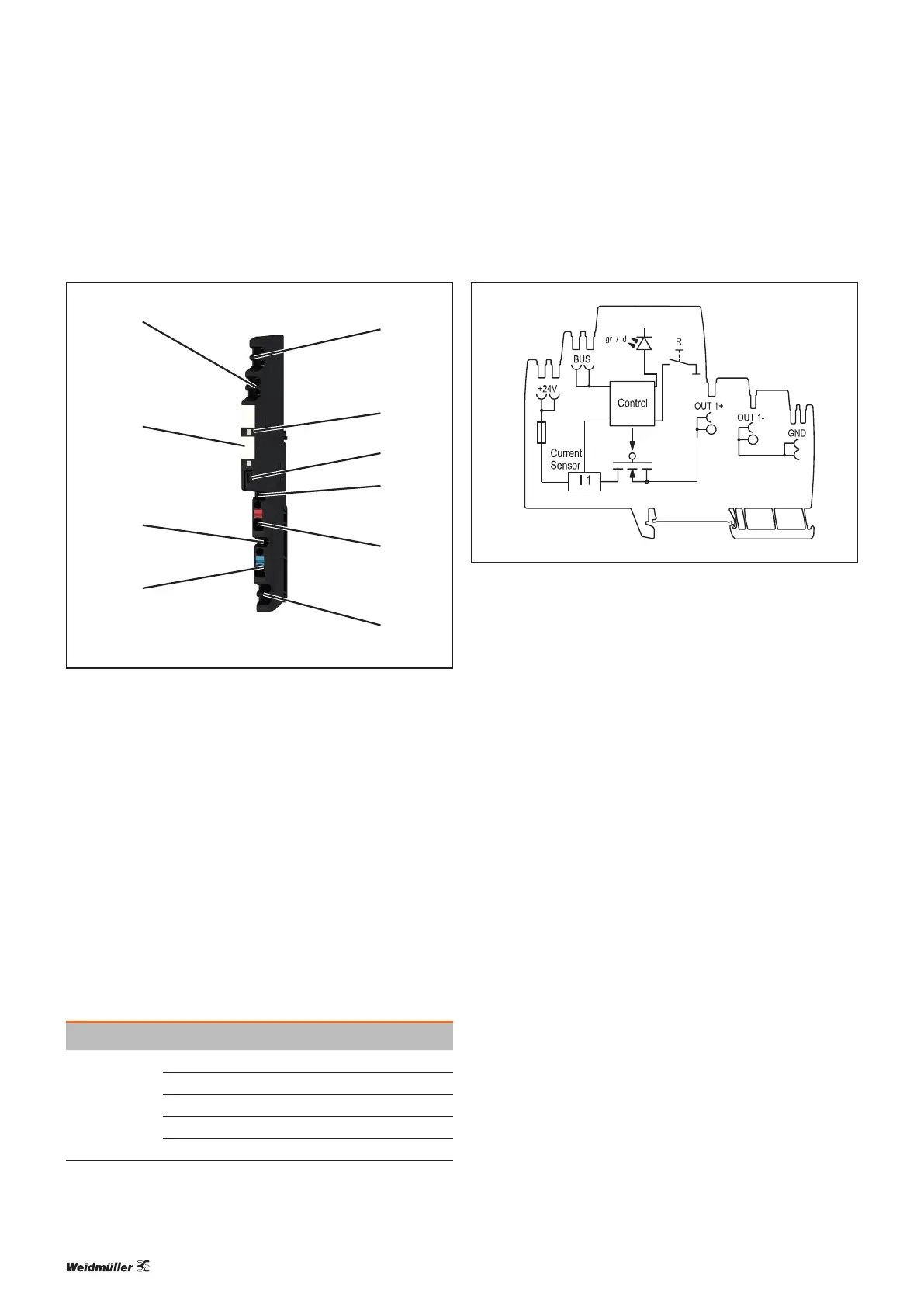

6 Electronicloadmonitors | AMGELM-xF CL2
6.3 AMGELM-xFCL2

AMGELM-1FCL2,AMGELM-2FCL2,AMGELM-4FCL2
1 +24V main strand connection (+24V)
2 LED
3 Reset button “R”
4 PLUS output connection (cross-connector)
5 PLUS output connections (2.5mm
2
)
6 GND main strand connection (0V)
7 MINUS output connections (2.5mm
2
)
8 MINUS output connection (cross-connector)
9 Markers
10 Internal signal line connection
The AMGELM-1FCL2, AMGELM-2FCL2 and AMGELM-
4FCL2 1-channel electronic load monitors monitor individual
load circuits and disconnect them in the event of a short cir-
cuit or overload. They are suited for use in Class 2 circuits ac-
cording to National Electric Code (NEC). The tripping current
and the tripping characteristic are xed.
LED Colour Meaning
LED
Green Fault-free operation
Red Load monitor switched off
Red, ashing Load monitor tripped
Red, ashing fast Internal error
Red, green, alternating Reset button deactivated for 30 seconds
AMGELM--xFCL2blockdiagram
The reset button “R” can be used to individually reset and
switch on/off the load monitors.
