32Manual maxGUARD2526740000/02/03.2018
5 Feed-inmodules,controlmodules,alarmmodules | Control modules AMG CM...

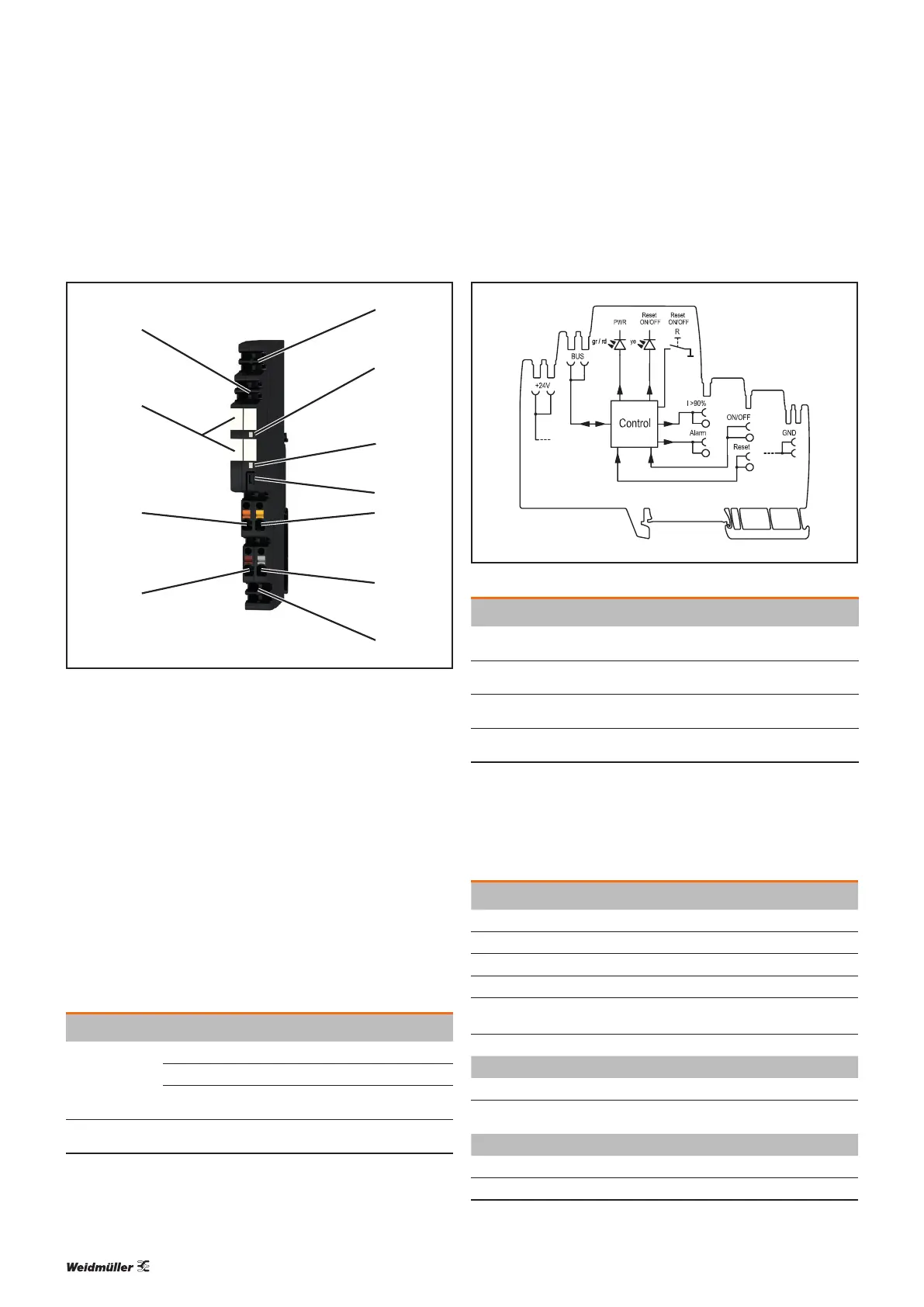

5.3 Control modules AMG CM...
AMG CM...
1 +24V main strand connection (+24V)
2 PWR LED
3 ON/OFF LED
4 Reset key
5 I>90% connection (2.5mm
2
)
6 ON/OFF connection (2.5mm
2
)
7 GND main strand connection (0V)
8 Reset connection (2.5mm
2
)
9 Alarm connection (2.5mm
2
)
10 Markers
11 Internal signal line connection
The AMG ELM electronic load monitors can be controlled
and monitored using control modules. Control modules drive
the internal bus and connect the internal signal line to an ex-
ternal control unit. A control module and the connected load
monitors form a unit concerning the control.
LED Colour Meaning
PWR
Green Fault-free operation
Red, ashing Supply voltage error
Red
Alarm tripped or
internal fault
ON
Yellow
Reset tripped or
ON/OFF tripped
AMG CM... block diagram
Signal Function Type Level
Reset
Resets electronic load monitors Input
LOW: no reset
HIGH: reset
ON/OFF
Switches load monitors on/off Input
LOW: ON
HIGH: OFF
Alarm
Load monitor tripped Output
LOW: alarm
HIGH: no alarm
I>90%
Overload advance warning Output
LOW: I<90%I
T
HIGH: I>90%I
T
The reference point for the signals is the potential of the
GND main strand.
The reset key “R” can be used to manually reset and switch
on/off the connected load monitors.
Technical data AMG CM...
General
Rated voltage
24VDC
Operational voltage range
18 –30VDC
Low voltage detection
Yes (supply voltage<18VDC)
Surge detection
Yes (supply voltage>31.2VDC)
Operating current consumption
(typical)
100mA
Width
12.2mm
Digital inputs
Input resistance
10 kΩ
Input voltage hysteresis
LOW➝HIGH: 15V
HIGH➝LOW:5V
Digital outputs
Active transistor output
24V/ 20mA
Short-circuit-proof
Yes
