10 Disassembly and disposal
10.1 Required tools
To disassemble the maxGUARD station, you will need:
– slotted screwdriver:
– blade 2mm, e.g. Weidmüller SDS0.4X2.0X60
(Order No. 9037160000 )
– blade 3.5mm, e.g. Weidmüller SDS0.6X3.5X100
(Order No.9008330000)
– blade 6.5mm, e.g. Weidmüller SDS1.2X6.5X150
(Order No.9009010000)
10.2 Disassembling a module
WARNING
Explosion risk!
▶ Before starting any work, make sure that
there is not a potentially explosive atmos-
phere!
WARNING
Dangerous contact voltage!
▶ Carry out all disassembly work on the
maxGUARD station only when the power
supply is disconnected.
▶ Make sure that the place of installation
(panel etc.) has been disconnected from
the power supply!



Disassembling a maxGUARD module
▶ Remove all cables and lines connected to the module.
▶ Remove all cross-connectors connected to the module.

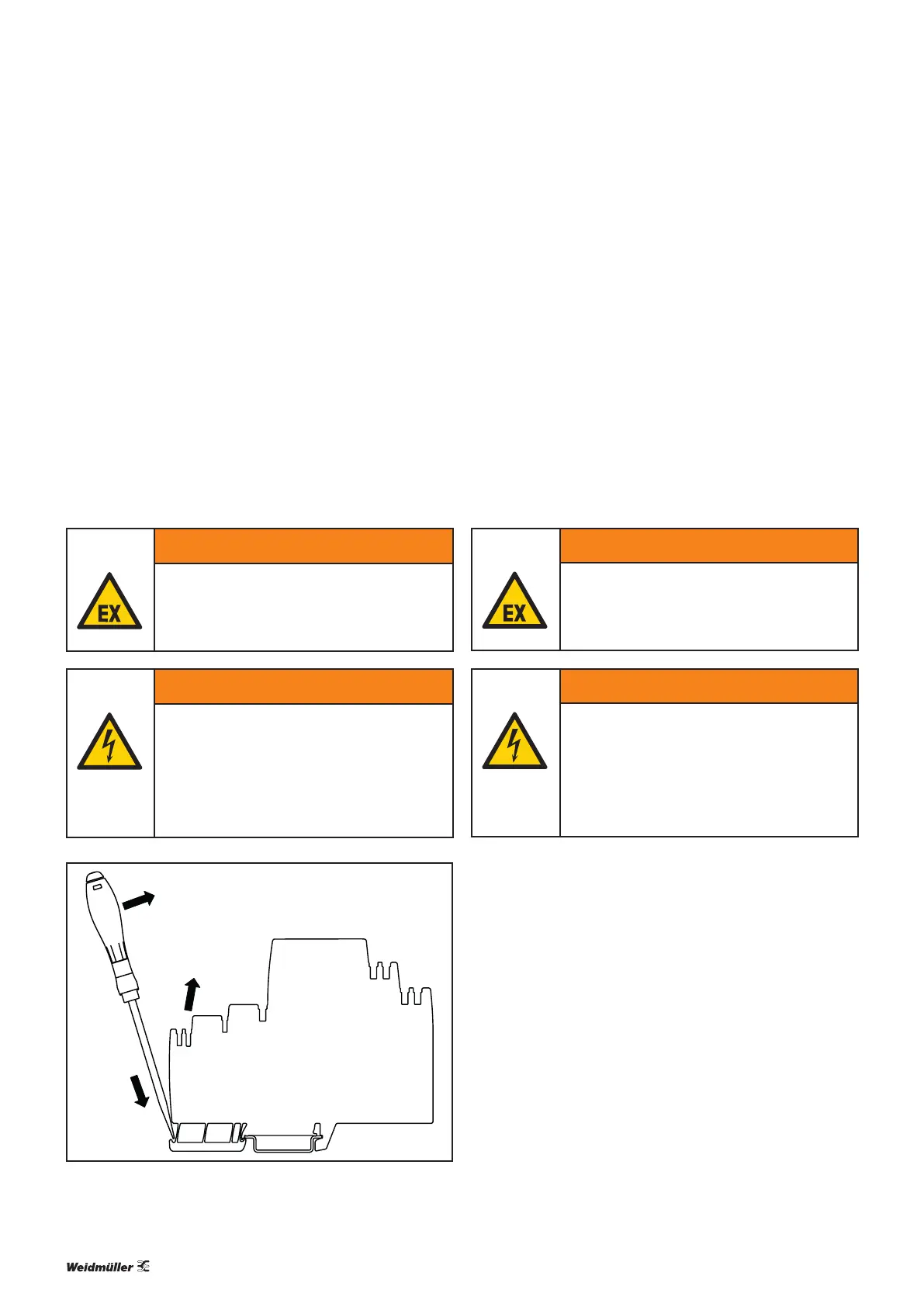

▶ Place a screwdriver in the recess of the clip-in foot.
For feed-in modules we recommend a slotted screwdriver
with a blade width of 6.5mm. For all other modules we
recommend a slotted screwdriver with a blade width of
3.5mm.
▶ Press down the screwdriver in the direction of the module
to release the clip-in foot.
▶ Remove the module.
▶ Please observe the instructions for proper disposal.
10.3 Disassembling a maxGUARD station
WARNING
Explosion risk!
▶ Before starting any work, make sure that
there is not a potentially explosive atmos-
phere!
WARNING
Dangerous contact voltage!
▶ Carry out all disassembly work on the
maxGUARD station only when the power
supply is disconnected.
▶ Make sure that the place of installation
(panel etc.) has been disconnected from
the power supply!
▶ Remove all cables and lines.
▶ Remove all cross-connectors.
▶ Remove the end bracket markers (if present).
▶ Unscrew the mounting screws on both end brackets.
▶ Remove the end brackets from the terminal rail.
You can now disassemble the station.
▶ Disassemble all modules.
▶ Please observe the instructions for proper disposal.
