Annex | Lagged tripping characteristic 3AT
PV
PV
PV
V
$$$
V
Output current
3.3 A < I ≤ 4 A 4 A < I ≤ 5 A 5 A < I ≤ 9 A 9 A < I ≤ 15 A 15 A < I ≤ 18 A I > 18 A
Tripping time
5s 1s 100ms 30ms 10ms 5ms

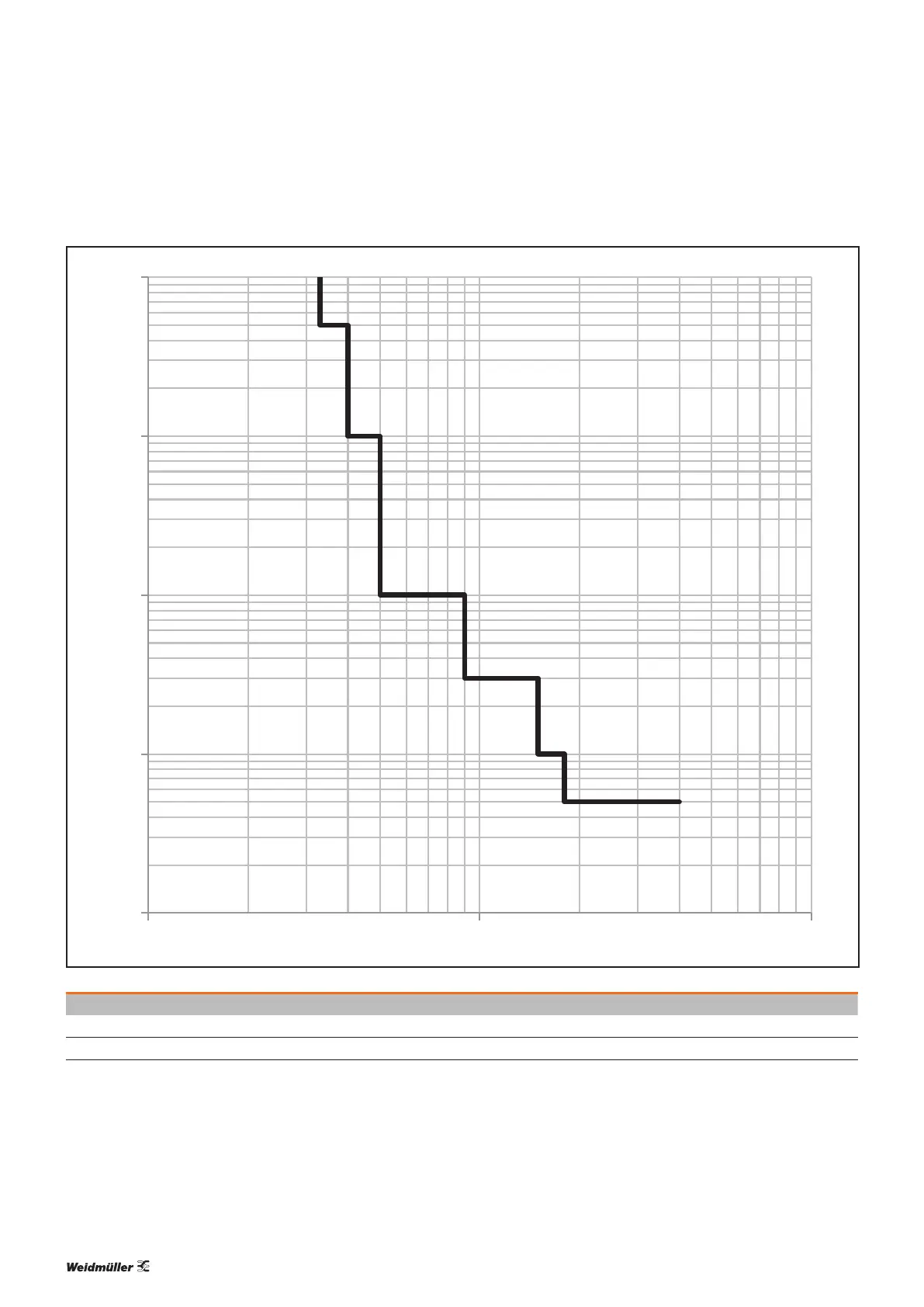

Lagged tripping characteristic 3A
T
