Example: One segment without connection to a control unit
Example: maxGUARD station without connection to a control unit

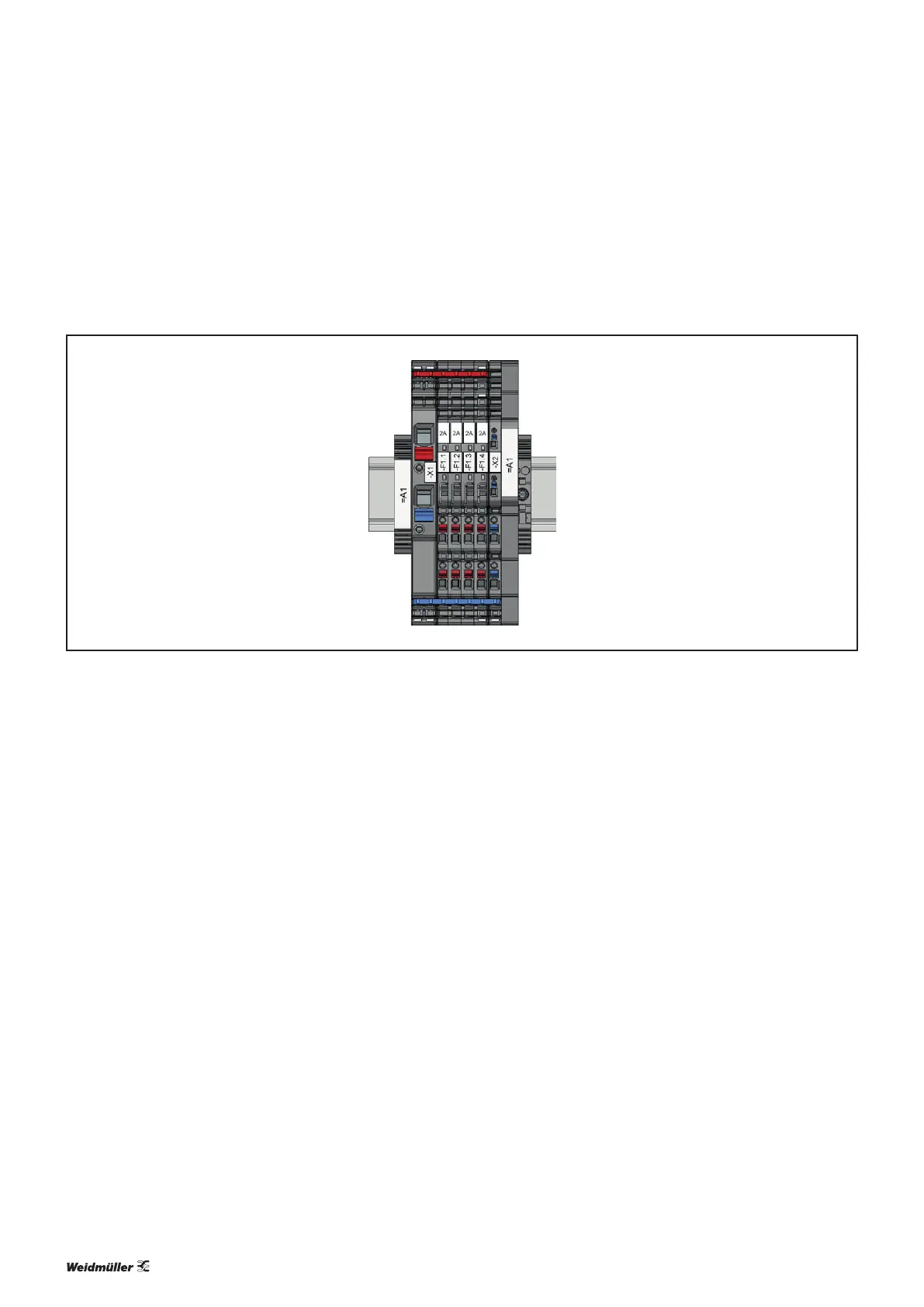

This example shows a control voltage distributor for four se-
lectively fused load circuits without connection to a control
unit.
The following maxGUARD products are used:
– 1xAMGFIM-0
– 1xAMGELM-Q2222
– 1xAMGXMD
– 1xAMGEP
– 2xWEW35/2
– 1xZQV4N/6RD
– 1xZQV4N/7BL
The passive feed-in module feeds in the supply voltage. The
potentials are distributed to individual modules via uncut
cross-connectors (white markings). As the total current ow-
ing through the station is less than 20A, the main strands
are each equipped with only one cross-connector.
The station must be equipped with an end plate at the right
end. Only then will the exposed side of the last potential dis-
tribution terminal be covered.
