Annex | Lagged tripping characteristic 6AT
PV
PV
PV
V
$$$
V
Output current
6.6 A < I ≤ 7.4 A 7.4 A < I ≤ 9 A 9 A < I ≤ 14 A 14 A < I ≤ 18 A 18 A < I ≤ 20 A I > 20 A
Tripping time
5s 1s 100ms 30ms 10ms 5ms

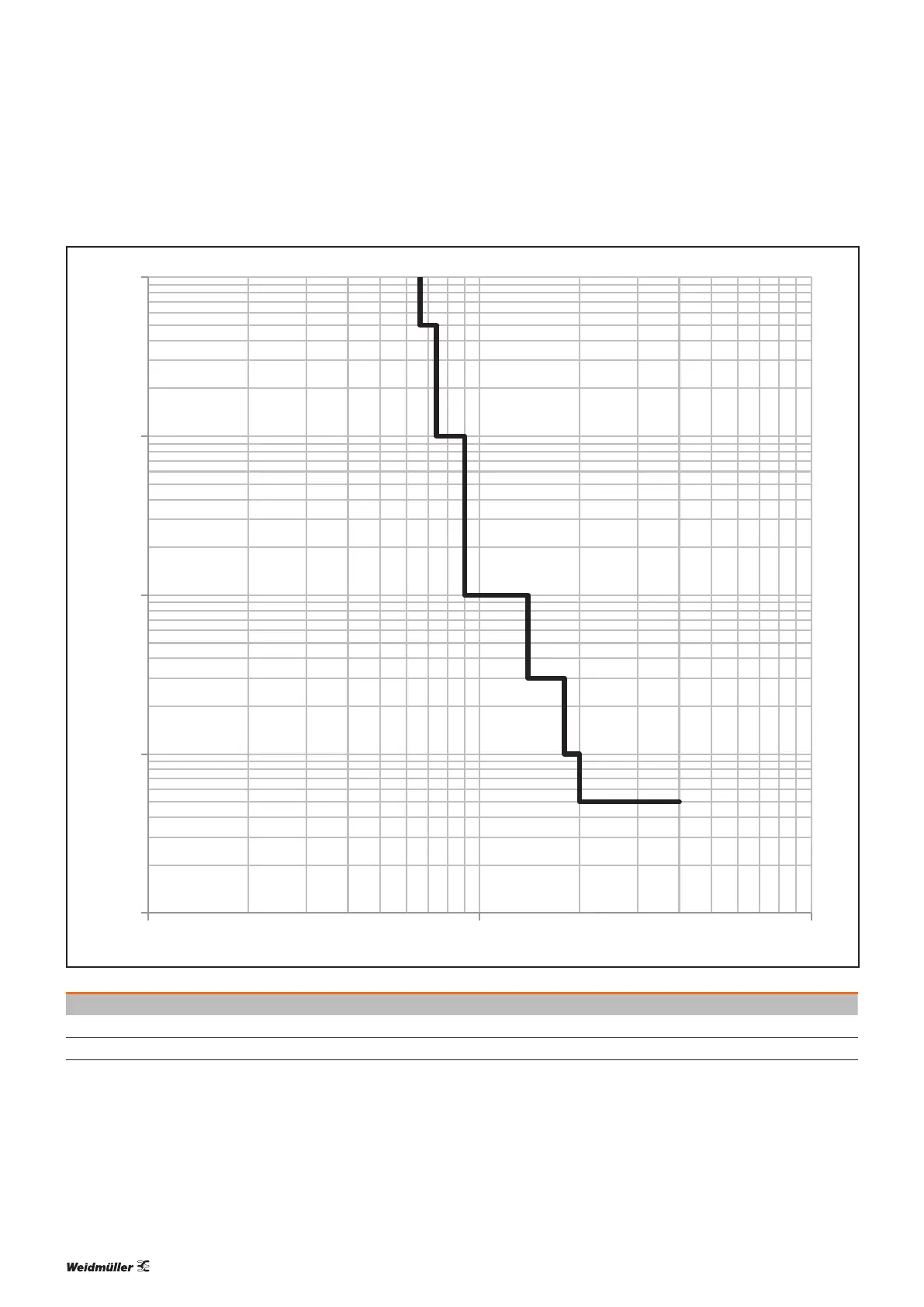

Lagged tripping characteristic 6A
