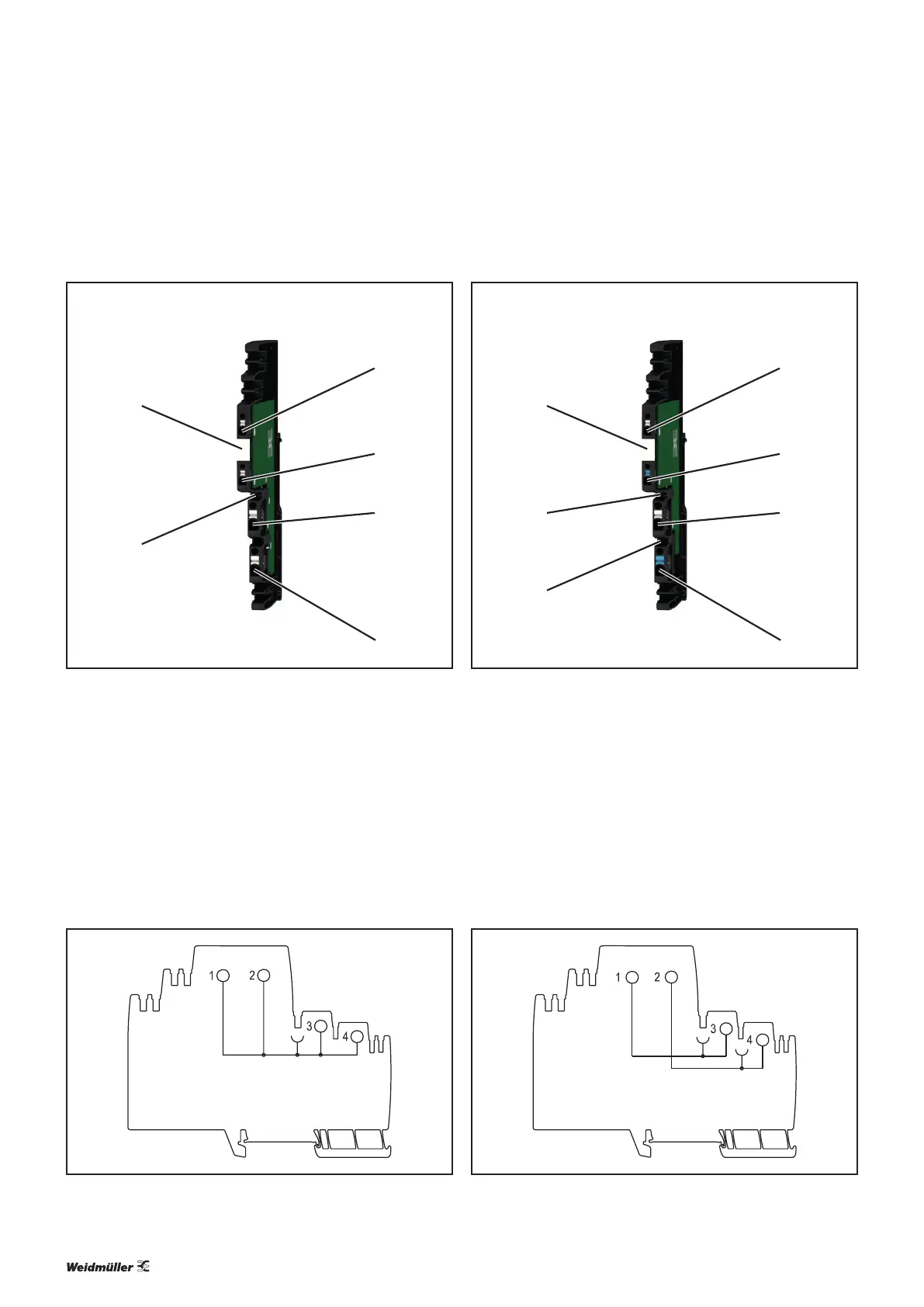

7 Potential distribution terminals
7.1 AMG PD... potential distribution terminal






AMG PD...
1 Connection1 (1.5mm
2
)
2 Connection2 (1.5mm
2
)
3 Connection3 (2.5mm
2
)
4 Connection4 (2.5mm
2
)
5 PLUS output connection (cross-connector)
6 Marker
The AMGPD potential distribution terminal is used to repli-
cate the PLUS output of the AMGELM load monitors. The
potential is fed in exclusively from the PLUS output of the
load monitor via a cross-connector..
AMG PD... block diagram
7.2 AMG OD... potential distribution terminal







AMG OD...
1 Connection1 (1.5mm
2
)
2 Connection2 (1.5mm
2
)
3 Connection3 (2.5mm
2
)
4 Connection4 (2.5mm
2
)
5 MINUS output connection (cross-connector)
6 PLUS output connection (cross-connector)
7 Marker
The AMGOD potential distribution terminal is used to repli-
cate the outputs of the AMGELM load monitors. The poten-
tial is fed in exclusively from the outputs of the load monitor
via cross-connectors.
AMG OD... block diagram
