7 Potentialdistributionterminals | AMG MD... potential distribution terminal
7.3 AMG MD... potential distribution terminal







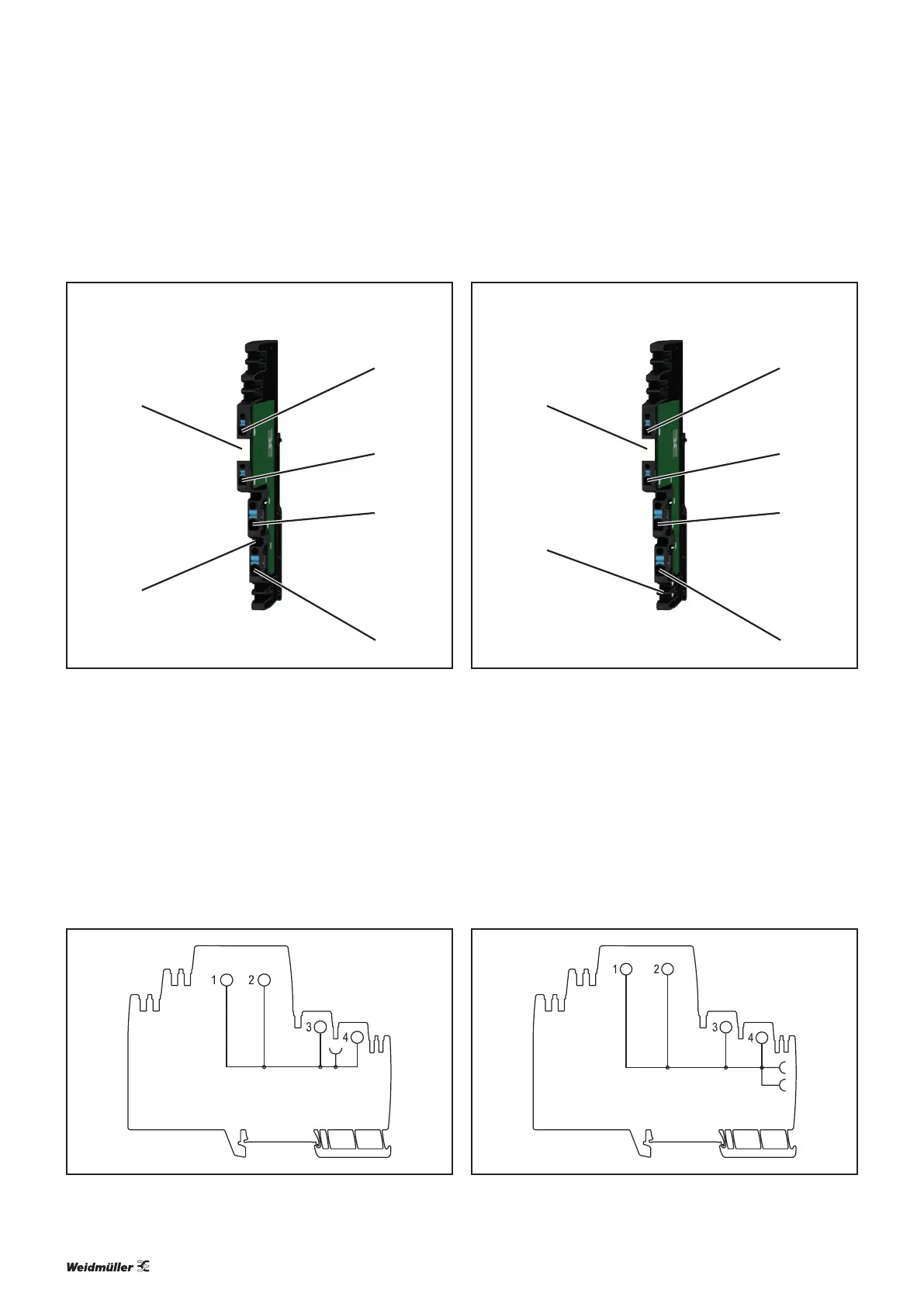

AMG MD...
1 Connection1 (1.5mm
2
)
2 Connection2 (1.5mm
2
)
3 Connection3 (2.5mm
2
)
4 Connection4 (2.5mm
2
)
5 MINUS output connection (cross-connector)
6 Marker
The AMGMD potential distribution terminal is used to repli-
cate the MINUS output of the AMGELM load monitors. The
potential is fed in exclusively from the MINUS output of the
load monitor via a cross-connector.
AMG MD... block diagram
7.4 AMG XMD... potential distribution terminal






AMG XMD...
1 Connection1 (1.5mm
2
)
2 Connection2 (1.5mm
2
)
3 Connection3 (2.5mm
2
)
4 Connection4 (2.5mm
2
)
5 GND main strand connection (0V)
6 Marker
The AMGXMD potential distribution terminal is used to rep-
licate the connections to the GND main strand. The potential
is fed in exclusively from the GND main strand via an internal
connection.
AMG XMD... block diagram
