Annex | Lagged tripping characteristic 2AT
PV
PV
PV
V
$$$
V
Output current
2.2 A < I ≤ 3 A 3 A < I ≤ 4.4 A 4.4 A < I ≤ 8 A 8 A < I ≤ 13 A 13 A < I ≤ 15 A I > 15 A
Tripping time
5s 1s 100ms 30ms 10ms 5ms

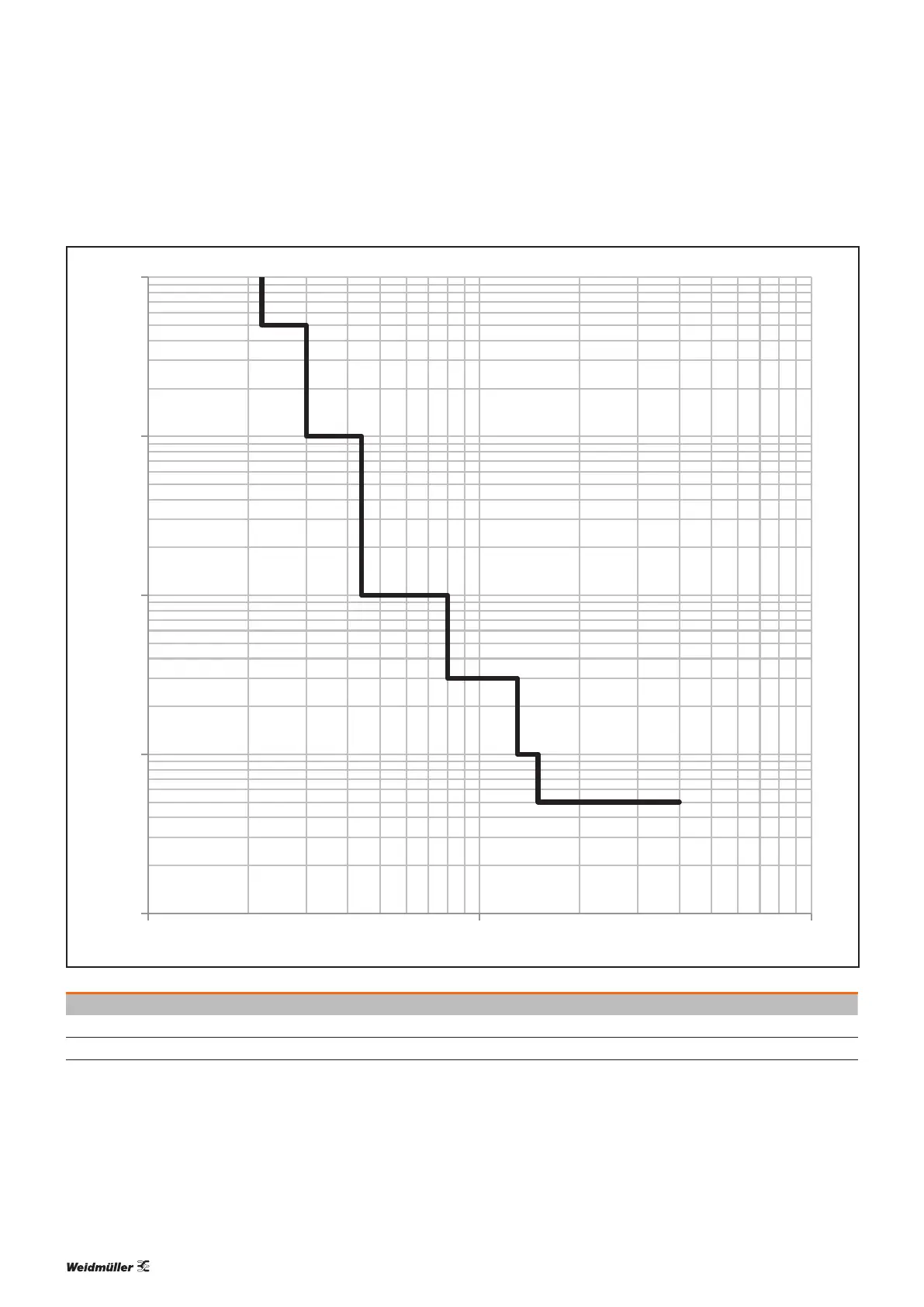

Lagged tripping characteristic 2A
