Installing an end bracket
End brackets must be installed in order to x the
maxGUARD station in place and and ensure fault-
free operation.

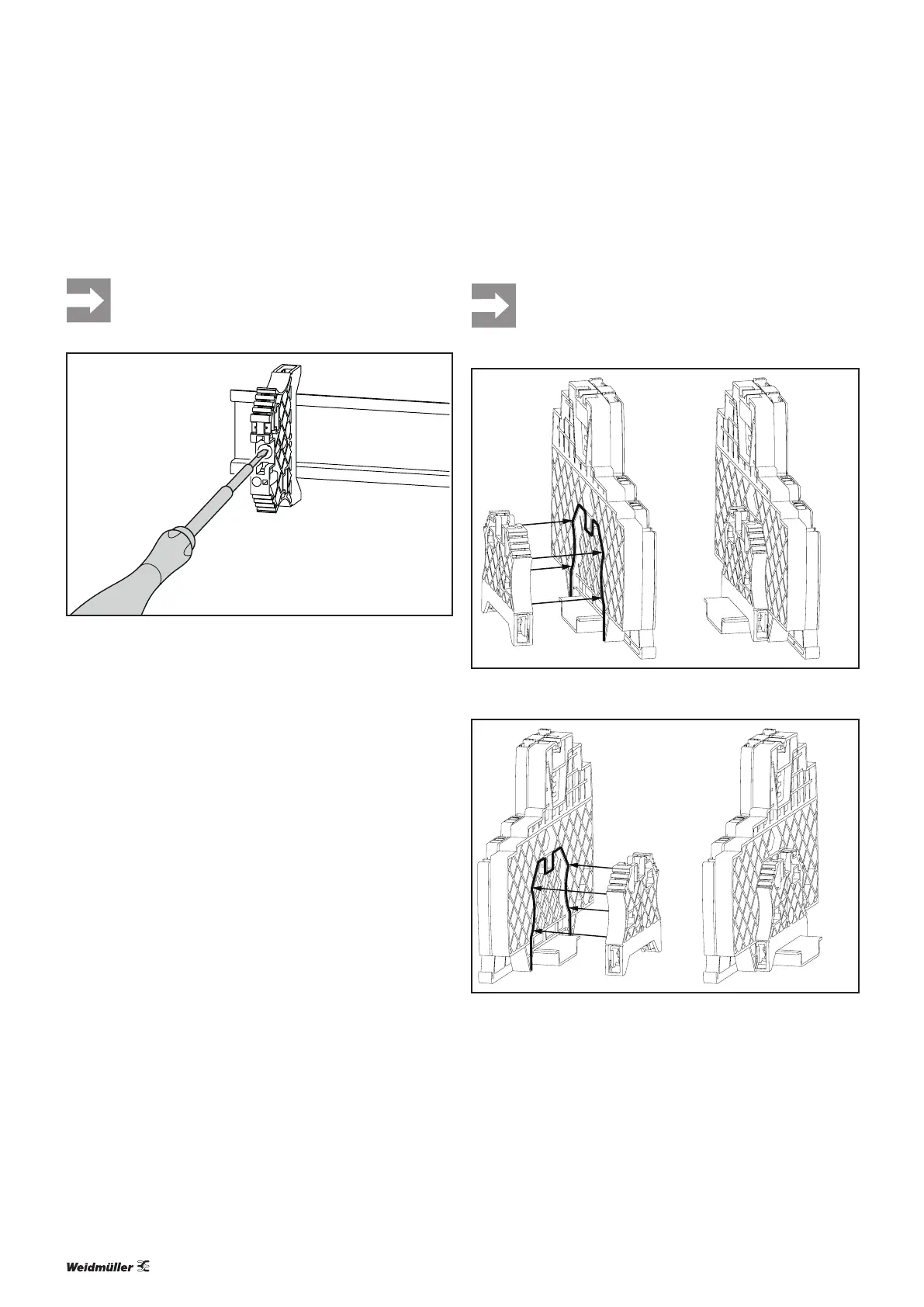

Installing an end bracket
▶ Place the WEW35/2 end bracket on the terminal rail and
screw down tightly (3.5mm screwdriver).
Installing an end plate
To ensure IP20 protection, end plates must al-
ways be used if cut cross-connectors are used
for the main strands or if the maxGUARD station
ends with a potential distribution terminal.
Installinganendbracketwithanendplate(left)
Installinganendbracketwithanendplate(right)
End plates are not snapped on to the terminal rail and must
therefore be installed between a module and an end bracket.
The recess in the end plate is used to accommodate the end
bracket.
▶ Install the end plate as shown in the diagrams.
▶ Screw down the WEW35/2 end bracket on the terminal
rail tightly (3.5mm screwdriver).
