Loading Material
4.5 Setting the Feed Path of the
Transfer Ribbon
Transfer ribbon wrinkling can lead to print image er-

as to prevent wrinkles.
1

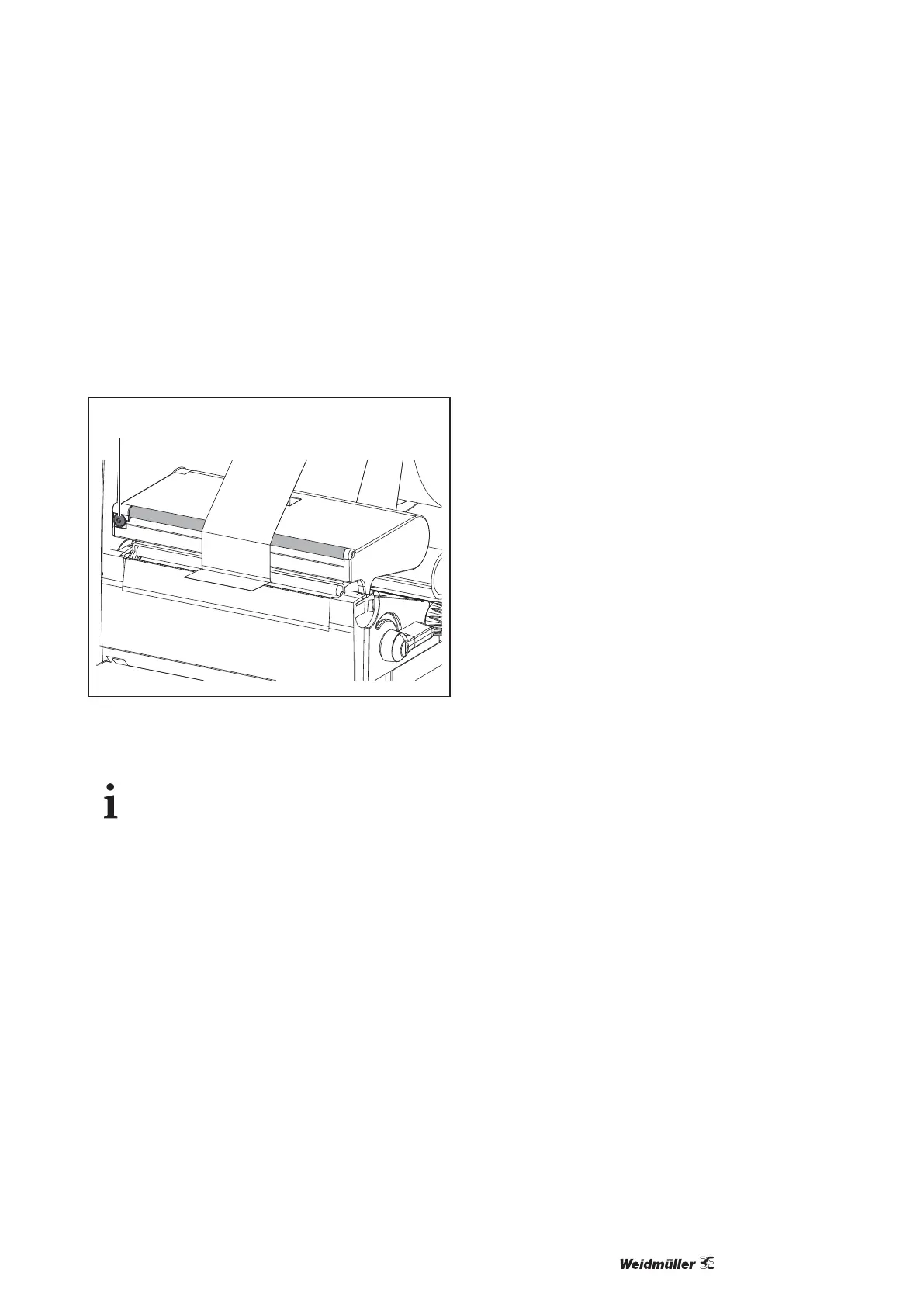

Fig. 12 Setting the Feed Path of the Transfer Rib-
bon
The adjustment is best carried out during
printing.
1 Turn screw (1) with torx wrench TX10 and ob-
serve the behavior of the ribbon.
- By turning it clockwise the outer edge of the
transfer ribbon is tightened.
- By turning it counterclockwise the inner edge
of the transfer ribbon is tightened.
