Circuit Breakers - Reset
The resettable circuit breaker panels are located on operator’s control station, and on inside of engine
compartment on right side of machine.
If a circuit breaker requires frequent resetting, contact your Weiler dealer. Push the button to reset
each circuit breaker. The button will remain depressed if circuit is working properly. Check the
appropriate electrical circuit if button does not stay reset.

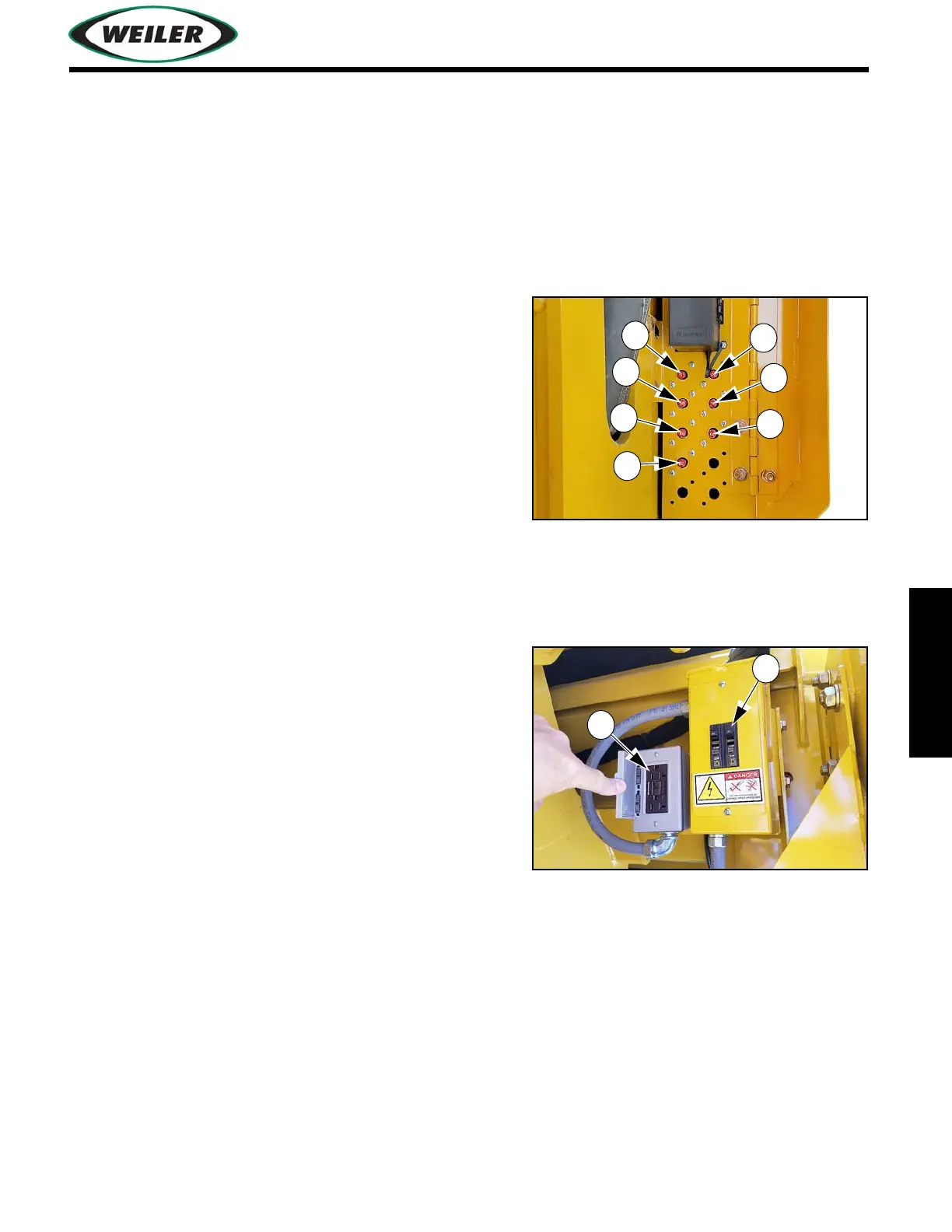

Engine Compartment Circuit Breaker Panel
(1) DPF Soot
(2) PETU
(3) Engine ECU
(4) Work Lights
(5) Glow Plugs
(6) Relay #2
(7) Relay #1
Generator Circuit Breaker Panel
Circuit breakers (1) protect generator from over-current
output demand from electrical accessories plugged into
outlets (2).
4
2
1
5
6
3
7
1
2
