WEILER E1650 REMIXING TRANSFER VEHICLE
2-7
Machine Controls
2
Machine Controls

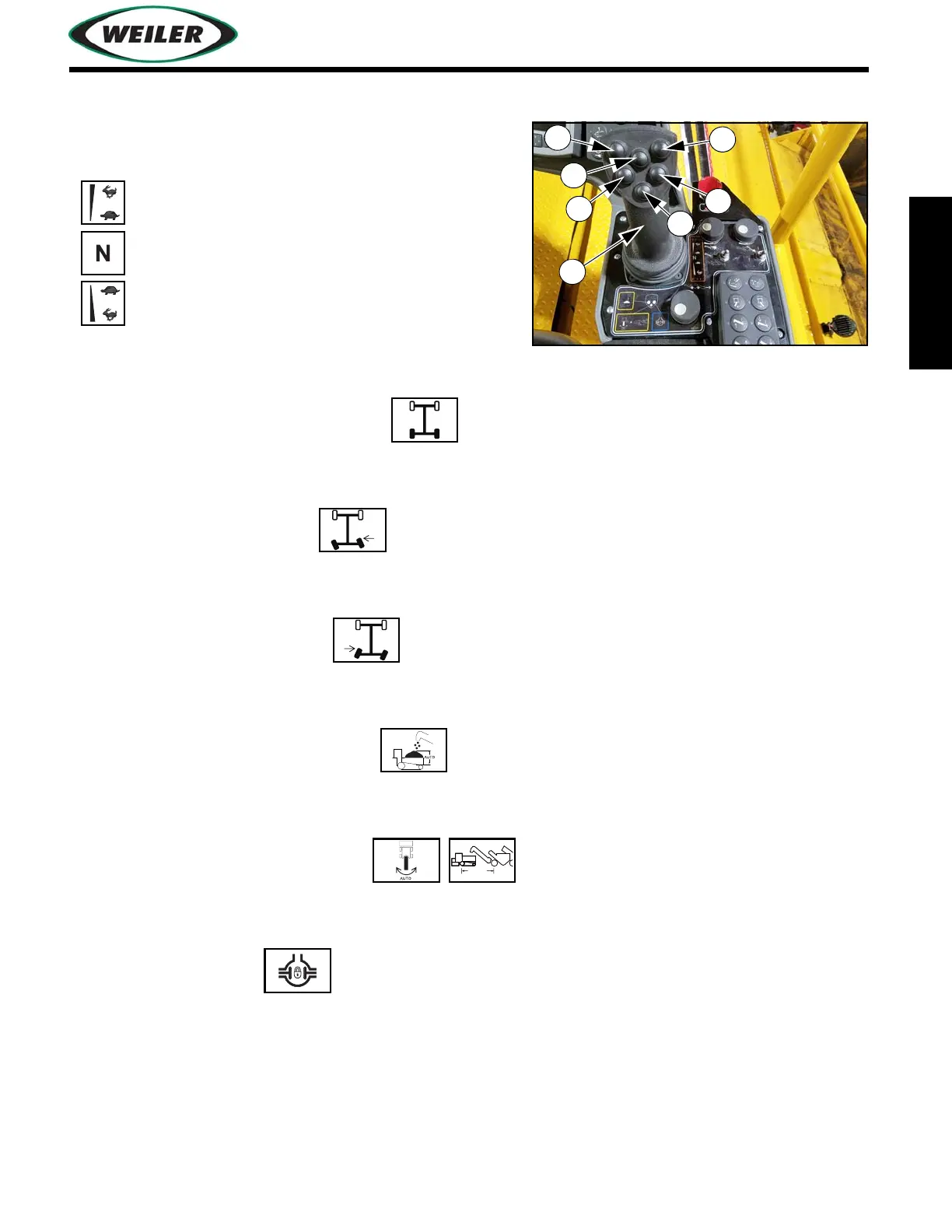

Right Control Panel
(1) Propel Lever
To move Propel Lever out of neutral, squeeze trigger on
underside of lever and move lever in desired direction.
(2) Rear Steer Auto Center Button
Press and release to center wheels for straight tracking.
(3) Rear Steer Left Button
Press and release to steer rear of machine left.
(4) Rear Steer Right Button
Press and release to steer rear of machine right.
(5) Paver Hopper Level Button
Press and release to cycle paver hopper level mode on/off.
(6) Distance-From-Paver Button
Press and release to cycle distance-from-paver mode on/off.
(7) Differential Lock
Press and hold to engage differential lock.
NOTICE: Do not engage differential locks with pump displacement over 425 mA. Machine damage
will occur. Refer to Ground Drive Pump Forward and Reverse parameters on the “View Drive
Diagnostics” screen for pump output / displacement.
Push lever away from operator to move
forward.
Center lever to place ground drive in neutral.
Pull lever toward operator to move in reverse.
3
2
1
4
5
6
7
AUTO
