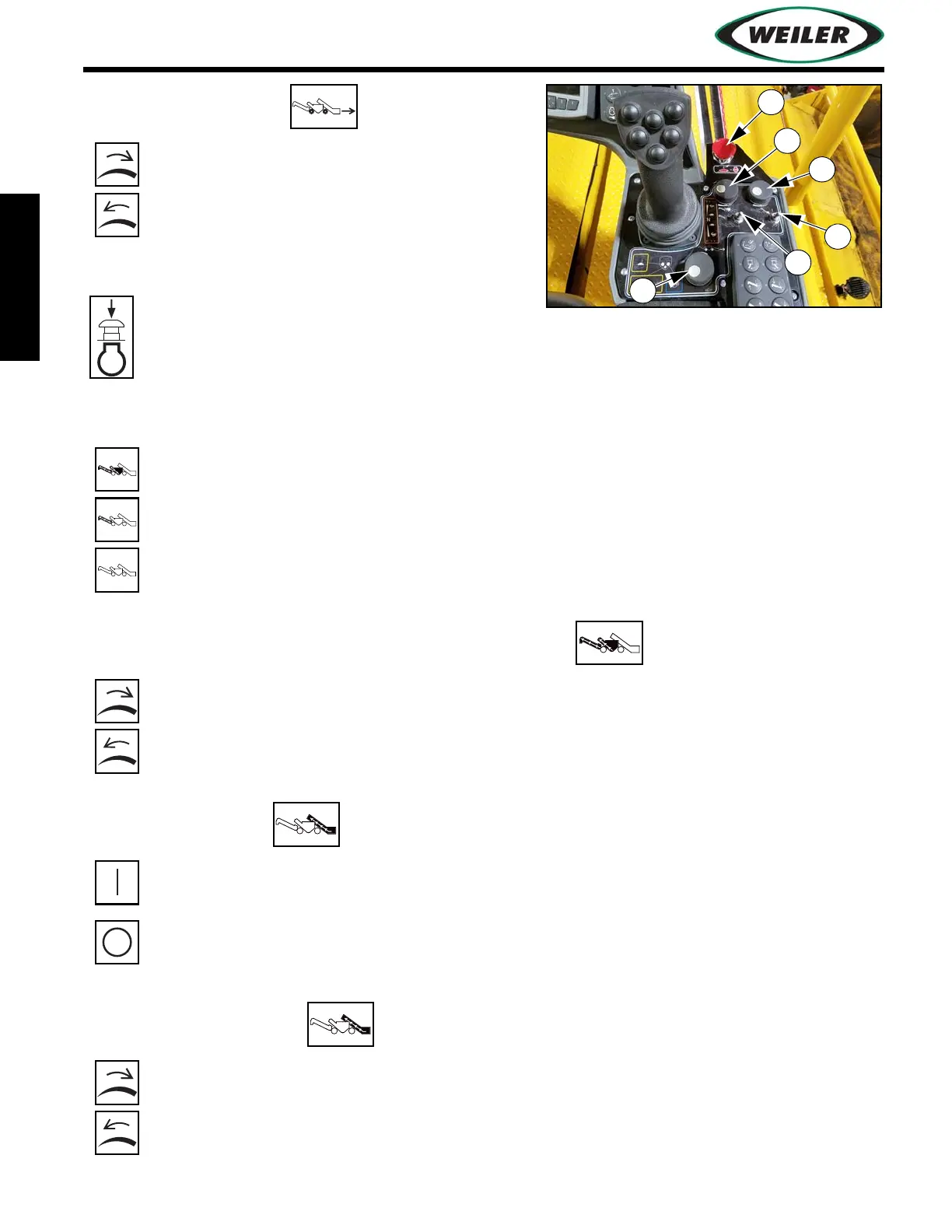

WEILER E1650 REMIXING TRANSFER VEHICLE
2-8
Machine Controls
2
Machine Controls
(8) Propel Speed Dial
(9) Engine Stop Button
(10) Storage Hopper & Discharge Conveyor Switch
(11) Storage Hopper & Discharge Conveyor Speed Dial
(12) Elevator Switch
(13) Elevator Speed Dial
Turn CW to increase ground speed.
Turn CCW to decrease ground speed.
Press to stop engine quickly.
Pull to enable engine startup.
Push up to turn hopper and discharge
conveyors on.
Center to turn discharge conveyor on.
Push down to turn hopper and discharge
conveyors off.
Turn CW to increase elevator forward speed.
Turn CCW to decrease elevator forward speed.
Push up to turn elevator on.
Push down to turn elevator off.
Turn CW to increase elevator forward speed.
Turn CCW to decrease elevator forward speed.
11
10
9
8
12
13
STOP
