WEILER E1650 REMIXING TRANSFER VEHICLE
2-9
Machine Controls
2
Machine Controls

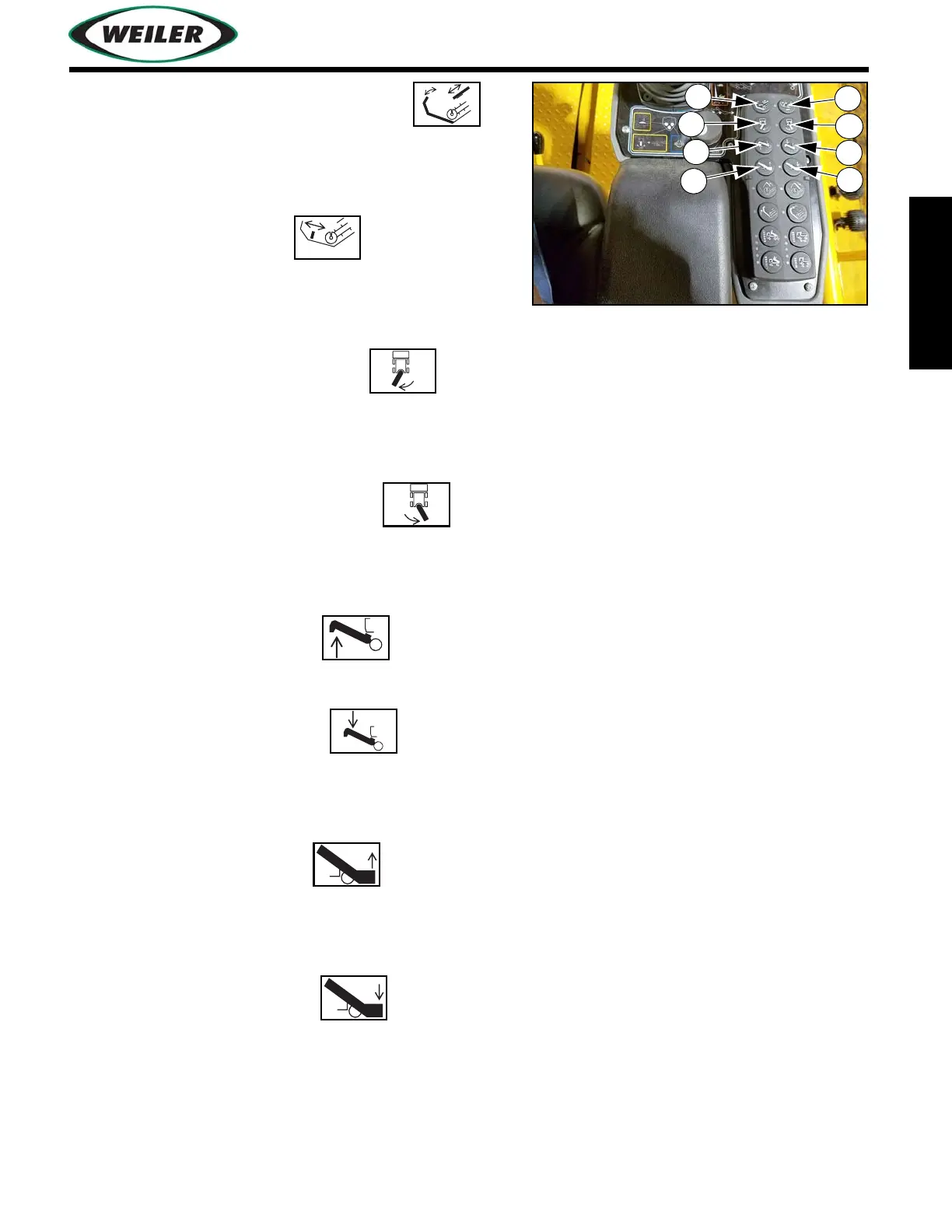

(14) Auto Hopper Dump/Baffle Button
Press and release to cycle auto hopper/baffle on/off.
(15) Dump Assist Button
Press and release to cycle hopper scraper on/off.
(16) Conveyor Swing Left Button
Press and hold to swing conveyor left.
(17) Conveyor Swing Right Button
Press and hold to swing conveyor right.
(18) Conveyor Raise Button
Press and hold to raise conveyor.
(19) Conveyor Lower Button
Press and hold to lower conveyor.
(20) Elevator Raise Button
Press and hold to raise elevator.
(21) Elevator Lower Switch
Press and hold to lower elevator.
