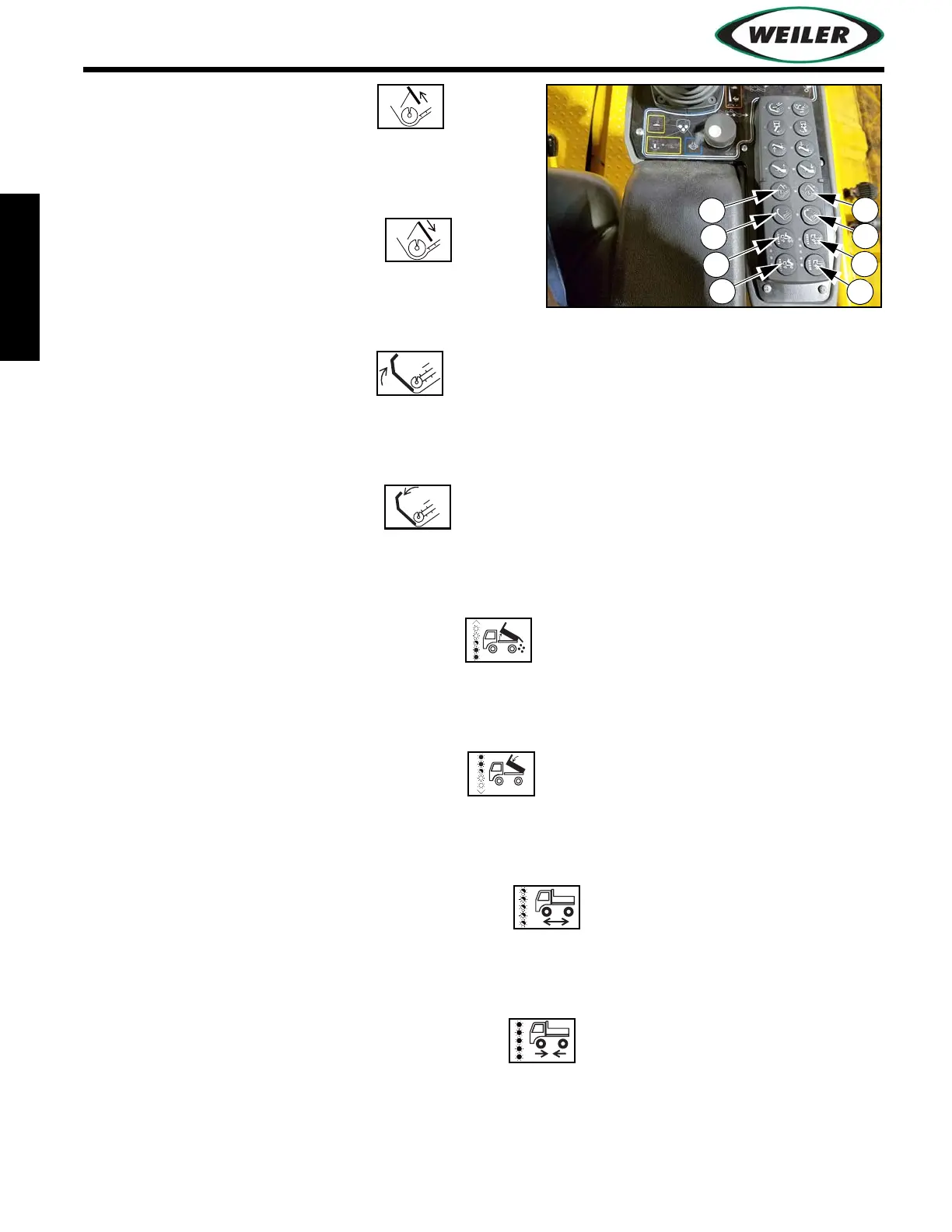

WEILER E1650 REMIXING TRANSFER VEHICLE
2-10
Machine Controls
2
Machine Controls
(22) Storage Baffle Raise Button
Press and hold to raise storage baffle.
(23) Storage Baffle Lower Button
Press and hold to lower storage baffle.
(24) Hopper Dump Raise Button
Press and hold to raise dump hopper.
(25) Hopper Dump Lower Button
Press and hold to lower dump hopper.
(26) Truck Signal Light Raise Button (Opt)
Press to strobe lights in an upward motion for 30 seconds.
(27) Truck Signal Light Lower Button (Opt)
Press to strobe lights in a downward motion for 30 seconds.
(28) Truck Signal Light Move Button (Optional)
Press to flash lights signaling truck move position.
(29) Truck Signal Light Hold Button (Optional)
Press to turn lights on solid signaling truck hold position.
27
26
25
24
23
22
29
28
