WEILER E1650 REMIXING TRANSFER VEHICLE
2-22
Machine Controls
2
Machine Controls

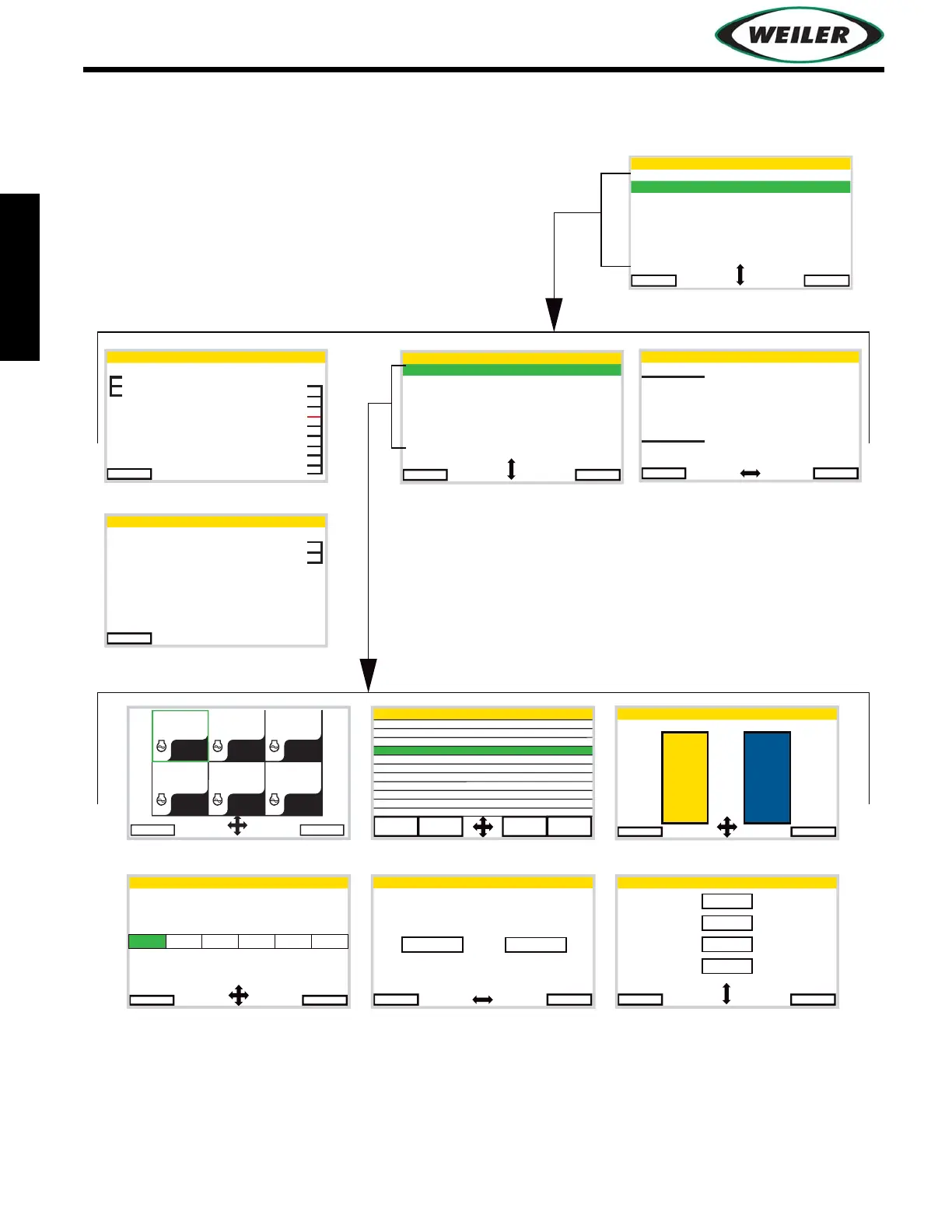

Menu Screen
View engine Diagnostics
View Drive Diagnostics
View Elevator/Storage Diagnostics
View Sensor Diagnostics
View CAN Diagnostics
System Settings
View Errors
Exit Enter
View CAN Diagnostics
Rear Keypad
Exit
Elevator Right Keypad
Elevator Left Keypad
Dash Right Keypad
Dash Center Keypad
Output Module 2
Output Module 1
Controller - 11.0 VDC
Display - 12.0 VDC
Engine - 11.0 VDC
CAN-A CAN-B
View CAN Diagnostics
Exit
Stoarge/Discharge Knob
Propel Knob
Propel Lever
CAN-B
System Settings
Gauge Setup
System Parameter Settings
Back Light Setup
Clock Setup
Units Selection
Language Selection
Exit Enter
Update Display Program
View Errors
Exit
None
Machine Errors
OC: 0
FMI: 0
SPN: 0
Active Faults: 0 of 0
Engine Errors
Clear
Back Light Setup
Exit
NightDay
Select
Clock Setup
Exit
Hour
Select
Minute AM/PM Day Month Year
12 30 AM 9 9 2016
1891 75.0 24.0
125.0112.0
VDC VDC VDC
VDC
SelectExit
52.0
VDC VDC
Language Selection
English
Svenska
Norsk
Espanol
Exit Select
Units Selection
Exit Select
Standard
Metric
System Parameter Settings
Exit
Remix Stall Pressure
Elevator Delay
Reset All
Tire Wash Override
Distance Control Enable
Tire Spray Enable
Parameter Name
0
0
0
0
0
0
0
0
Val ue
Chain Spray Enable
Chain Spray Time
Chain Tension Override
0
Spray Pump Time 0
Page
Up
Page
Down
Select
