WEILER E1650 REMIXING TRANSFER VEHICLE
2-23
Machine Controls
2
Machine Controls
Electronic Display Screen Descriptions
The system incorporates gauges and diagnostics with a display of current readings.

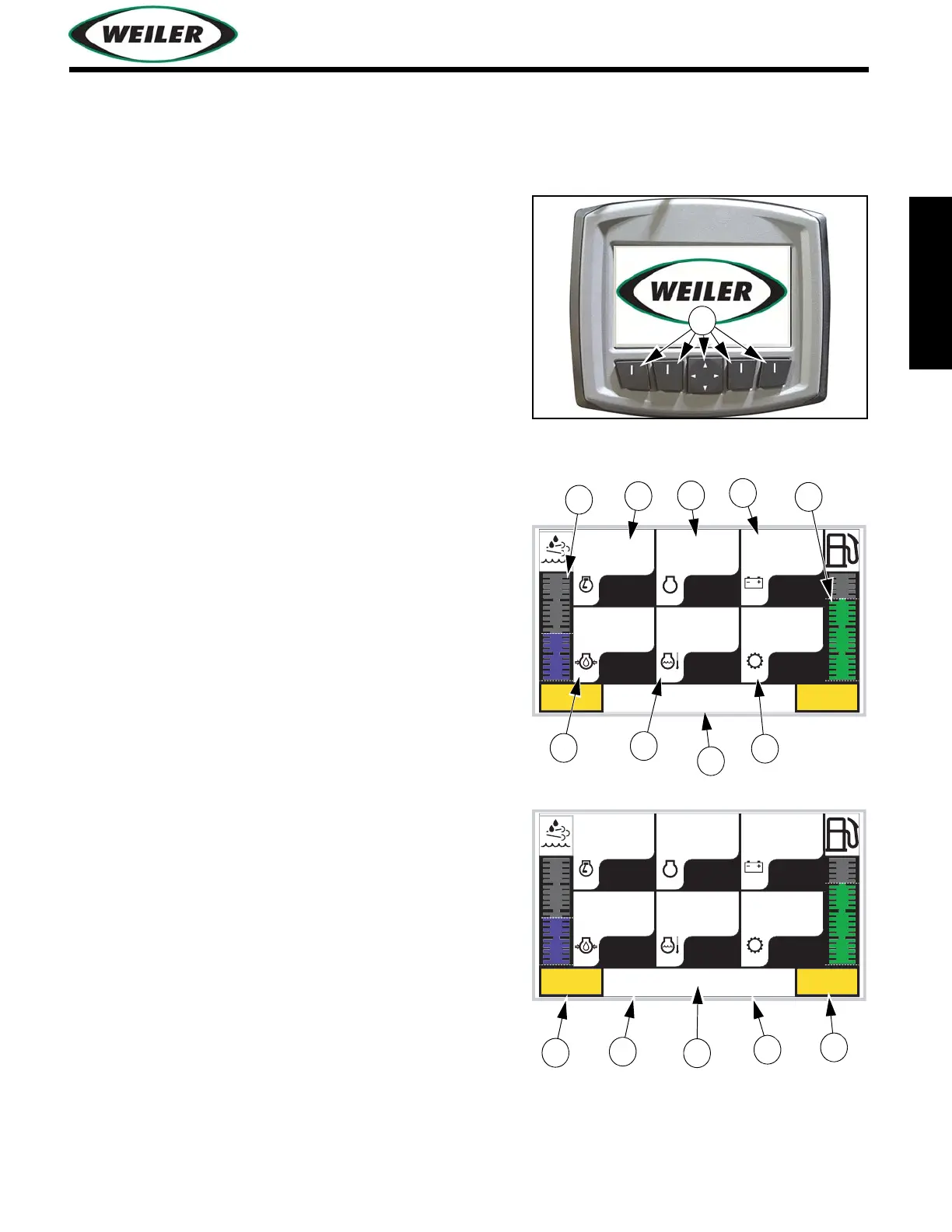

Start-Up Screen Display
Appears for 5 seconds after Ignition Switch is moved to
on position.
(1) Control Buttons
Functions change, depending on screen being
displayed. Button functions will be displayed with
each screen.
Main Operating Screen
(1) Main Screen
Parameters displayed on the six panels are user
selectable from a list of engine and machine items.
To select parameters to display, enter Menu Screen
and select Systems Settings.
(2) DEF level (T4F only)
(3) Engine rpm
(4) Percent engine load
(5) System Voltage
(6) Fuel Level
(7) Engine oil pressure
(8) Coolant temperature
(9) Ground speed
(10) Machine hours
(11) Time
(12) Date
(13) Press to display gauge screen.
(14) Press to enter menu screen.
