WEILER E1650 REMIXING TRANSFER VEHICLE
2-24
Machine Controls
2
Machine Controls
Electronic Display Pop-Up Messages
• Automatic Feeder Control Active
• Automatic Feeder Control Disabled
• Center Handle to Release Park Brake
• Chain Spray Level Low
• Discharge Conveyor High Pressure, Cycle Elevator / Storage / Discharge Switches to Reactivate
• Discharge Conveyor Pressure High, Elevator and Storage Shutdown
• Elevator High Pressure Shutdown, Cycle Elevator / Storage / Discharge Switches to Reactivate
• Elevator Pressure High
• Engine Stop Switch Pressed
• Generator Off
• Generator On
• High Coolant Temperature
• Hydraulic Charge Filter Restriction
• Low Fuel Level
• Low DEF Level
• Release Park Brake to Propel
• Storage High Pressure Shutdown, Cycle Elevator / Storage / Discharge Switches to Reactivate
• Storage Pressure High, Conveyor Shutdown
• Turn Elevator / Storage / Discharge Switches Off to Start
• Turn Park Brake Off to Activate Distance Control

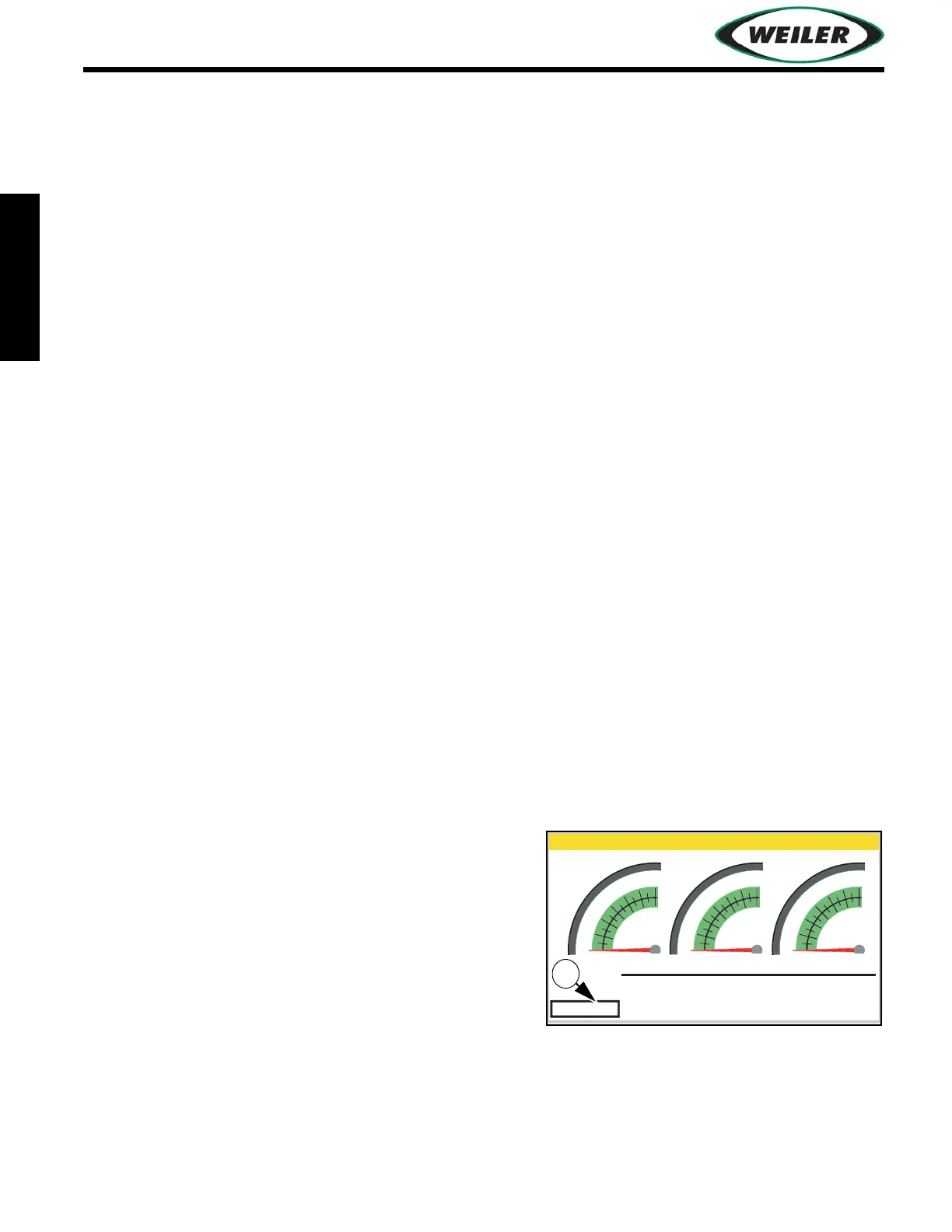

Gauge Screen
(1) EXIT Button
Press EXIT button to exit to previous screen.
Gauge Data
Elevator Storage Discharge
6001 5633 4578
PSIPSIPSI
0
1
2
3
4
5
6
0
1
2
3
4
5
6
0
1
2
3
4
5
6
PSI x1000 PSI x1000 PSI x1000
Distance To Paver
Set Distance: 1.0 FT
Actual Distance: 2.0 FT
Exit
