WEILER E1650 REMIXING TRANSFER VEHICLE
2-28
Machine Controls
2
Machine Controls

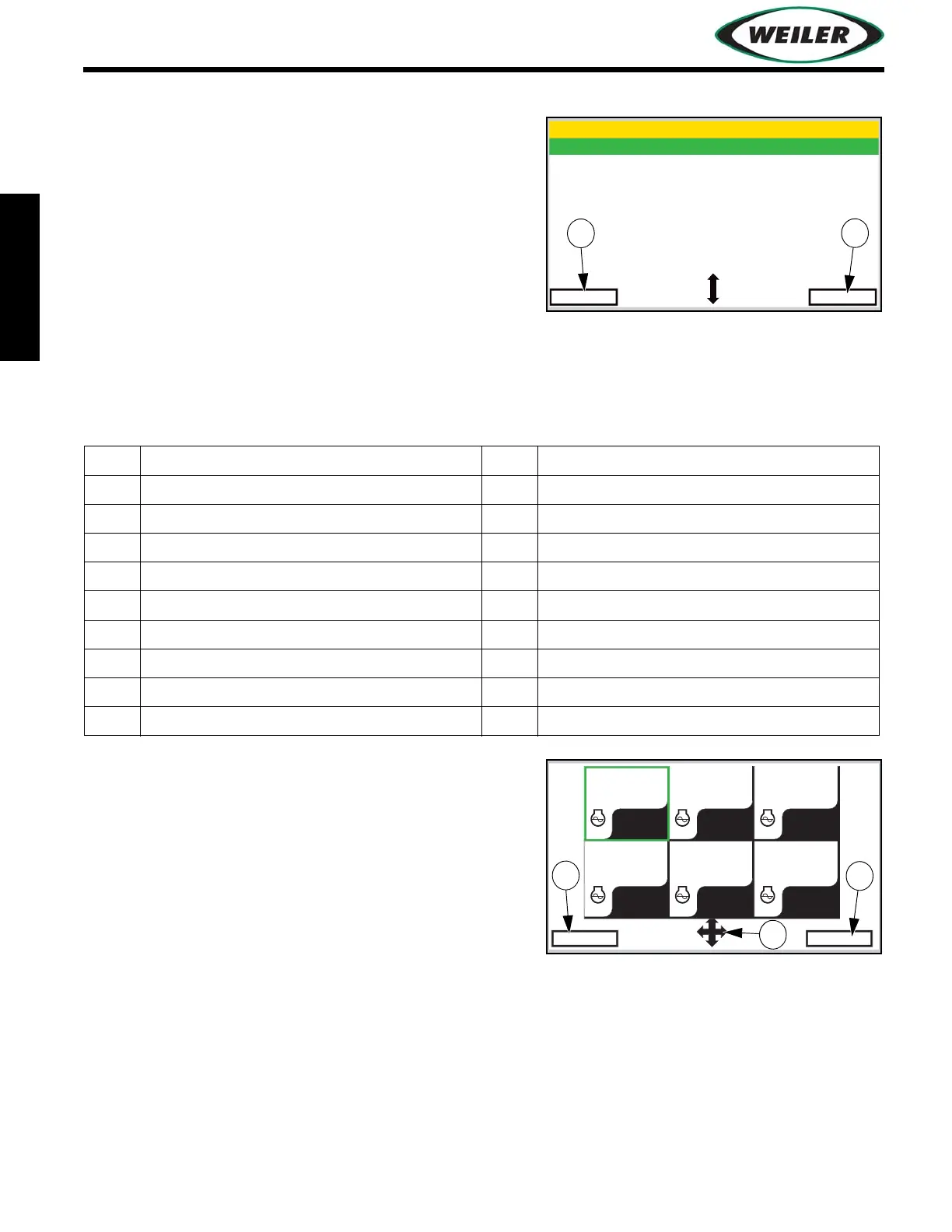

System Settings Screen
Use center control button to move box over selection of
screen to enter.
Press (1) to enter selected screen.
Press (2) to exit to previous screen.
Gauge Setup Screen
The following monitored parameters are available:
To select a parameter, use Navigation Control Button (1)
to highlight desired quadrant. Select (2) quadrant and
scroll through parameters until desired parameter is
highlighted, select (2) parameter. Exit (3) to return to
Menu Screen.
1 Generator Voltage 10 Ground Speed
2 Battery Voltage 11 Fuel Level
3 Hours 12 Fuel Temperature
4 Engine rpm 13 Fuel Rate
5 Percent Load 14 Fuel Pressure
6 Hydraulic Temperature 15 Conveyor Pressure
7 Coolant Temperature 16 Elevator Pressure
8 Engine Oil Pressure 17 Storage Pressure
9 Manifold Temperature 18 Steering Position
10 Boost Pressure 19 Paver Hopper Insert Sonic Enable
System Settings
Gauge Setup
System Parameter Settings
Back Light Setup
Clock Setup
Units Selection
Language Selection
Exit Enter
Update Display Program
2
1
1891 75.0 14.0
52.0125.0112.0
VDC VDC VDC
VDC VDC VDC
SelectExit
