WEILER E1650 REMIXING TRANSFER VEHICLE
3-22
Operating Instructions
3
Paving

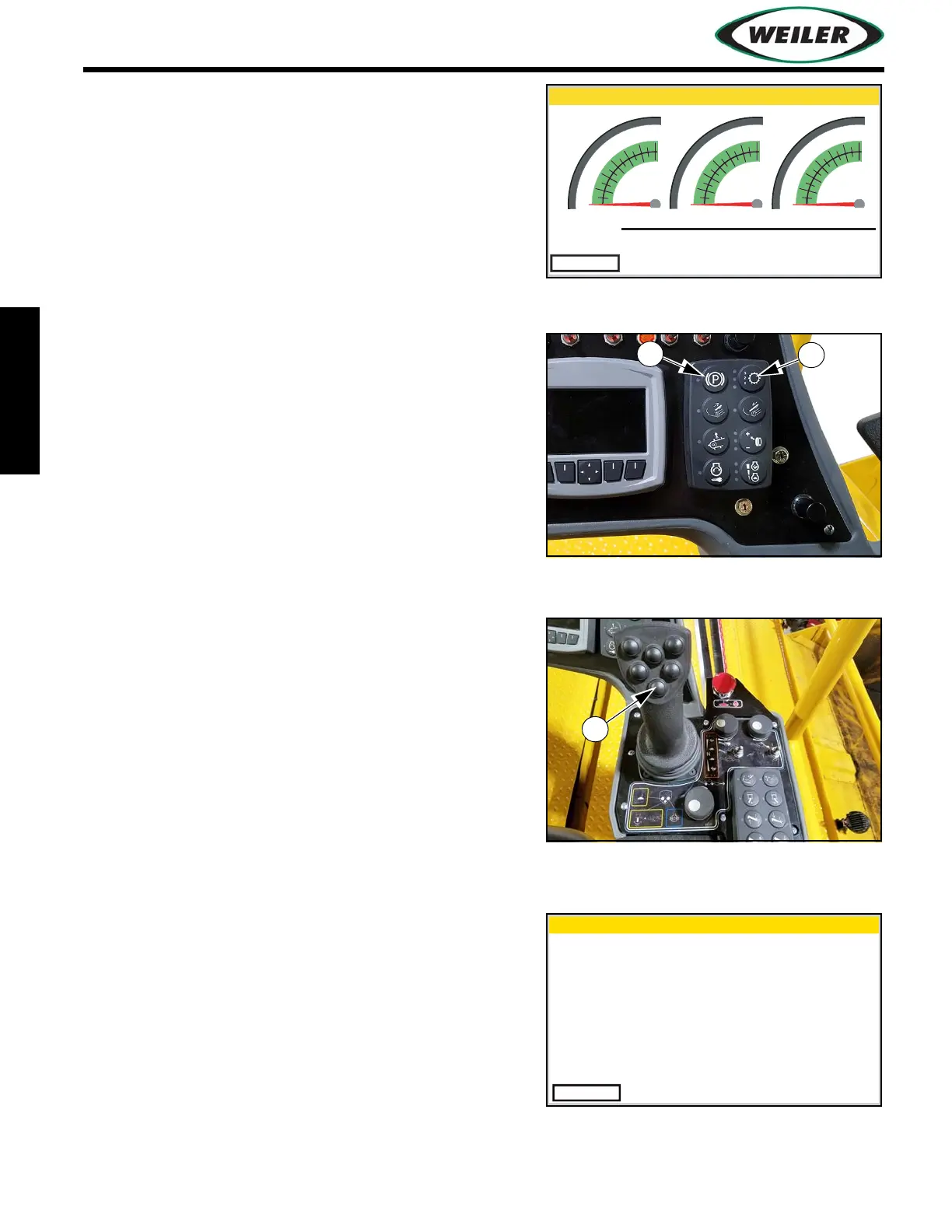

6. Monitor electronic display “Gauge Data” screen and
verify “Actual Distance” is within the desired range.
Screen shown is an example screen. The “Actual
Distance” will depend on operator’s desired position
of the discharge conveyor relative to the paver’s
hopper.
7. Verify park brake (5) is off.
8. Cycle Propel 3-Speed Button (6) to work low.
9. Turn distance control on by pressing and releasing
Distance-From-Paver Button (7).
After pressing Distance-From-Paver Button, the
following screen will appear on electronic display.
Gauge Data
Elevator Storage Discharge
6001 5633 4578
PSIPSIPSI
0
1
2
3
4
5
6
0
1
2
3
4
5
6
0
1
2
3
4
5
6
PSI x1000 PSI x1000 PSI x1000
Distance To Paver
Set Distance: 1.0 FT
Actual Distance: 2.0 FT
Exit
5
6
7
Distance Control Setup
Exit
Move Propel Lever
Forward and Center
Propel Speed Dial to
Activate Distance Control
