WM 68331 04/2021
LIFE-BASE EN 101
6 Operation
6.3.6 Fastening the portable unit with
retaining claws
Applies to • LIFE-BASE light XS
• LIFE-BASE light
Requirement The retaining claws are attached to the portable unit.
1. Suspend the portable unit on the equipment rail using
the retaining claws.
2. Warning! Risk of injury due to inadequate fastening
of the portable unit!

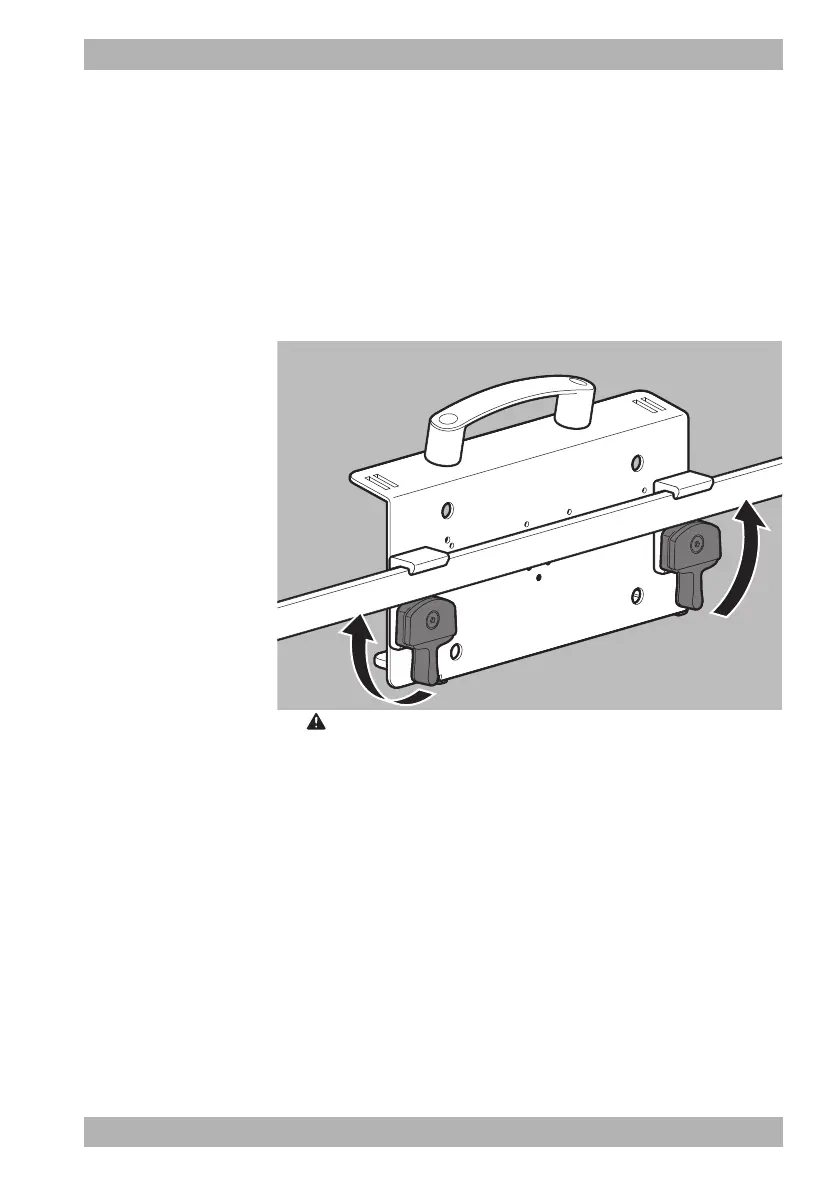

Push the locking levers outwards until the locking mechanism
noticeably engages.
When doing so, note: The locking levers must be parallel to
the equipment rail.
Result The portable unit is fastened to an equipment rail with
retaining claws.
