7 Disassembly
3. Remove the portable unit from the device.
4. Remove the shoulder strap from the portable unit
(see "7.3 Removing the belt from the portable unit",
page 119).
Result The device is removed from the portable unit.
7.5.4 Removing the device from LIFE-BASE 1 NG XS
Applies to • MEDUMAT Standard
2
• MEDUVENT Standard
• MEDUCORE Standard
2
• MEDUCORE Standard
Required auxiliary
equipment
Screwdriver with crosshead PH1
Requirement Disassembly is prepared (see "7.5.1 Preparing disassembly",
page 123).

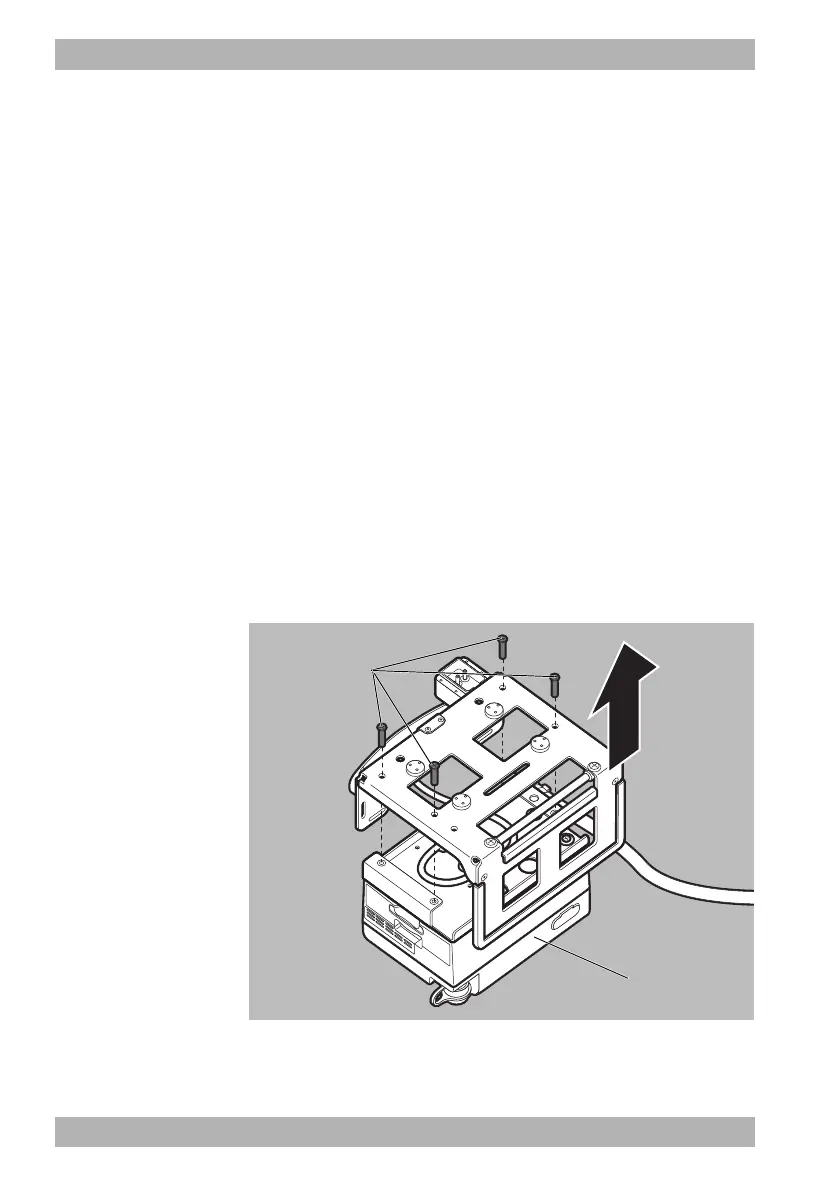

1. Place the portable unit and device with the control panel
membrane facing downwards.
2. Undo 4 screws 102 from the portable unit.
3. Remove the portable unit from the spacer plate.
102
MEDUMAT Standard
2
