WM 68331 04/2021

LIFE-BASE EN 139

7 Disassembly

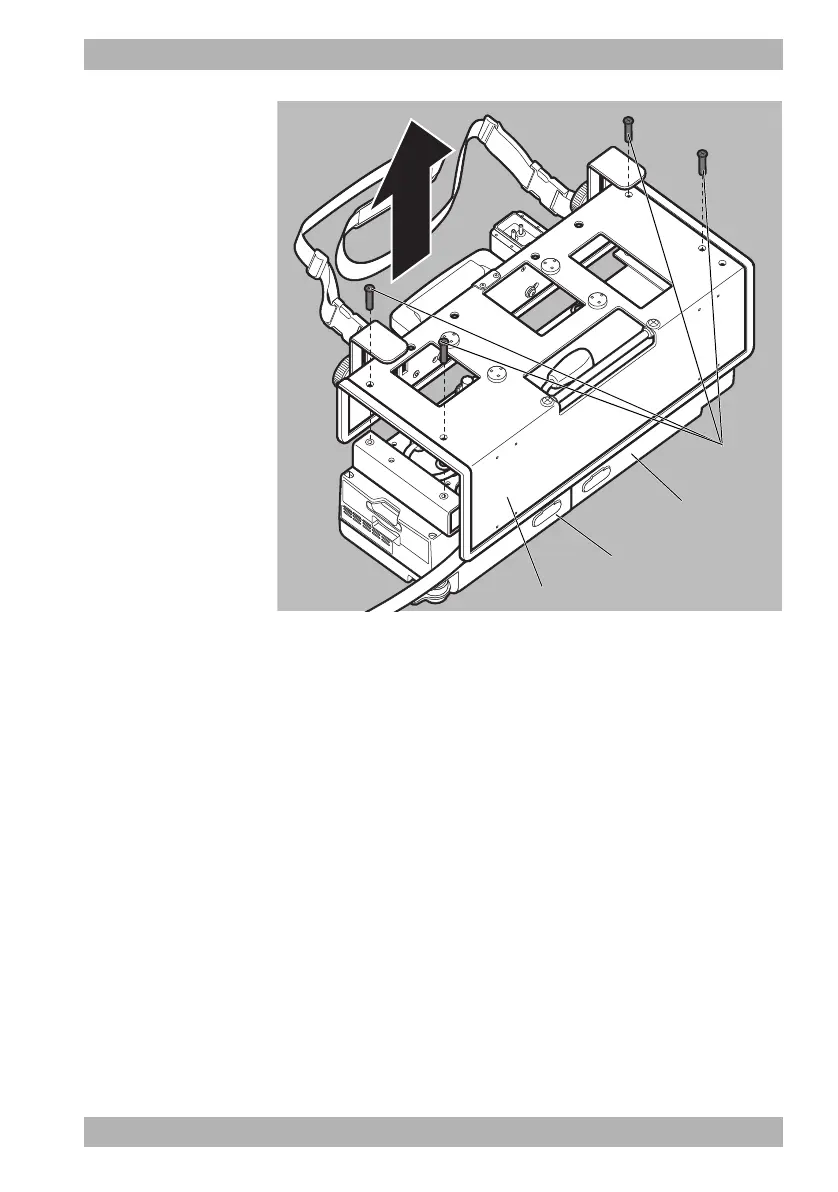

3. With LIFE-BASE 1 NG XL: Undo 4 screws 102 from

the portable unit

With LIFE-BASE 3 NG: Undo 4 screws 102 and

4 protective disks 104 from the portable unit.

4. Remove the portable unit from the spacer plate.

MEDUCORE Standard

MEDUMAT Standard

LIFE-BASE 1 NG XL

102
