7 Hygienic reprocessing

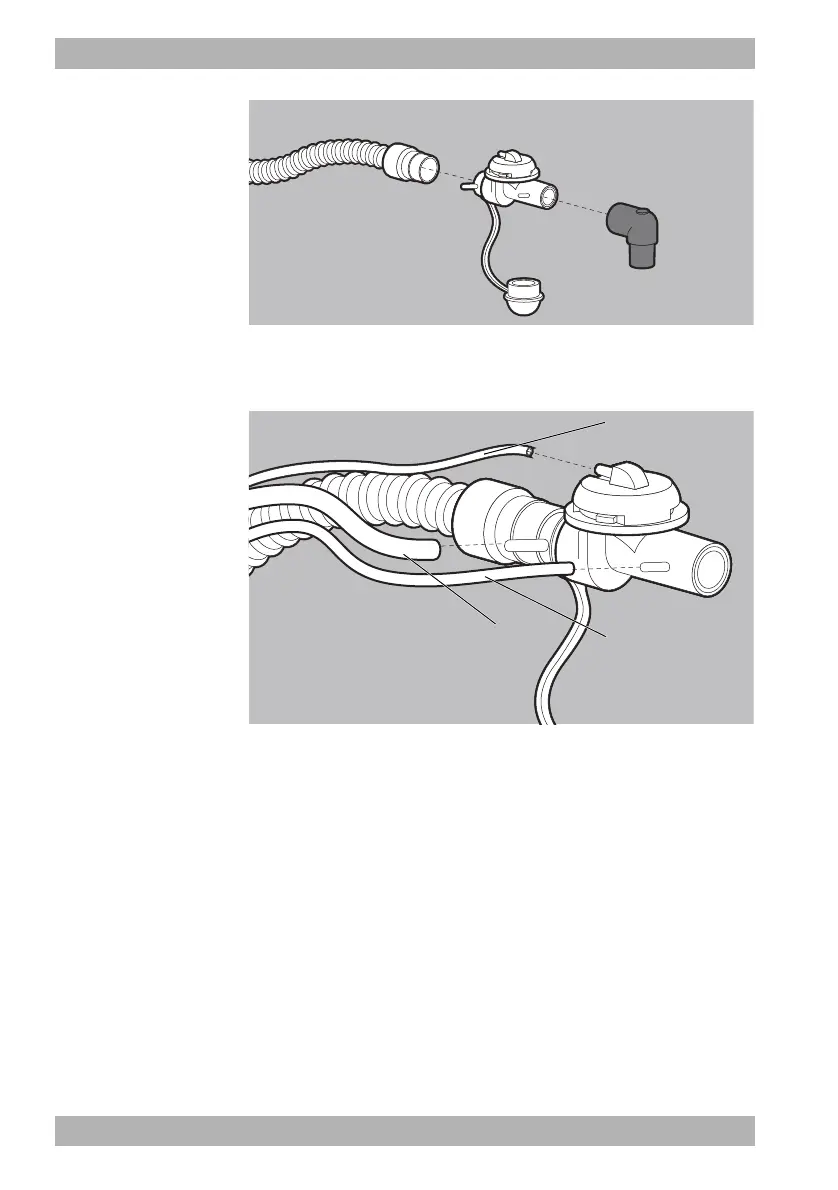

3. Connect the elbow to the patient valve.
4. Connect the patient valve to the ventilation hose.
5. Connect the following tubes to the patient valve:
• PEEP control tube 1 (slimmest tube)
• Pressure measuring tube 2 (medium tube)
• Flexible oxygen tube 3 (thickest tube)
Please note: The tubes must be firmly attached to the patient
valve.
6. Place all the tubes of the measuring circuit and the connecting
cable of the MEDUtrigger in the protective sleeve.
7. Close off the patient end of the reusable breathing circuit with
the protective cap.
