Whirlpool CHW9060 - Installation Clearances

2-3
• A sturdy and solid floor to support the
washer with a total weight (water and load)
of 400 lbs (180 kg).
Do not operate the washer in temperatures
below 32°F (0°C). Some water can remain
in the washer and can cause damage in low
temperatures.
Installation clearances
• The location must be large enough to allow
the washer door to be fully opened.
• Additional spacing should be considered for
ease of installation and service.
• Additional clearances might be required for
wall, door, and floor moldings.
• Additional spacing of 1” (2.5 cm) on all sides
of the washer is recommended to reduce
noise transfer.
• Companion appliance spacing should also
be considered.

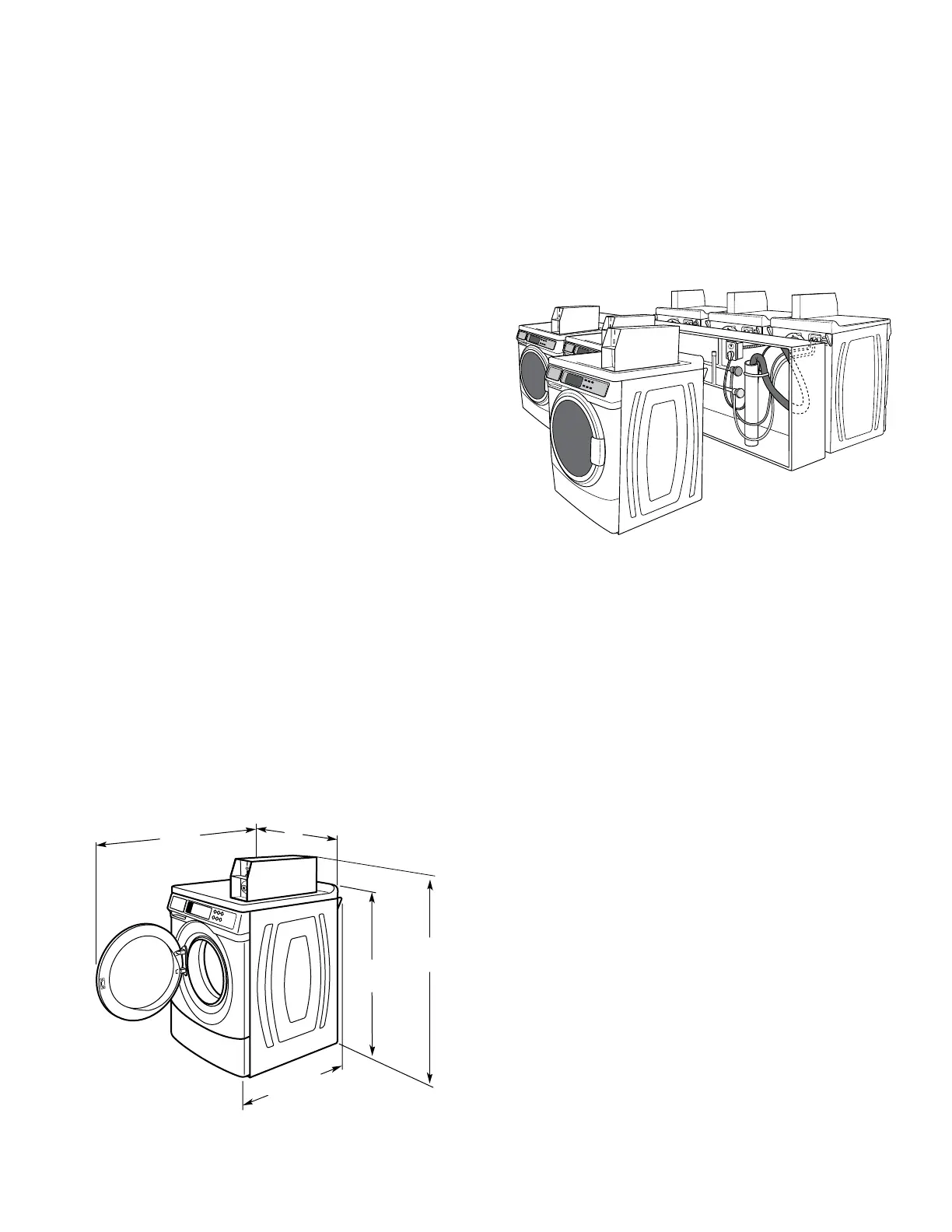

Washer dimensions:
A oor drain should be provided under a
bulkhead. Prefabricated bulkheads with
electrical outlets, water inlet lines, and drain
facilities should be used only where local
codes permit.
4
Alternate Parts
Your installation may require additional parts. If you are
interested in purchasing one of the items listed here, contact the
distributor where the washer was purchased.
If you have You will need to buy
Laundry tub or standpipe
taller than 96" (2.4 m)
Sump pump system (if not already
available)
Overhead sewer Standard 20 gal. (76 L),
30" (762 mm) tall drain tub or utility
sink and sump pump (available
from local plumbing suppliers)
Floor drain Siphon break, Part Number
285834; additional drain hose,
Part Number 8318155; and
connector kit, Part Number 285835
Drain hose too short 4 ft (1.2 m) drain hose extension
kit, Part Number 285863
Water faucets beyond
reach of ll hoses
2 longer water ll hoses:
6 ft (1.8 m) Part Number 76314
10 ft (3.0 m) Part Number 350008
Accessories
Enhance your washer with these premium accessories.
For more high-quality items or to order, call 1-800-901-2042, or
visit us at www.whirlpool.com/accessories. In Canada call:
1-800-807-6777 or visit us at www.whirlpoolparts.ca.
Part Number Accessory
8212487RP 5 ft (1.5 m) nylon braided inlet hose
(2-pack)
8212526 Washer drip tray, ts under all
31682 All purpose appliance cleaner
1903WH Laundry supply storage cart
Options
Pedestal
You have the option of purchasing pedestals separately for this
washer. The pedestal will add to the total height of the washer.
Optional pedestal
Pedestal
Height
Approximate
height with washer
Color Model
Number
2
7
⁄8" (73 mm) 47.5" (1207 mm) White WHP0400VW
Location Requirements
Selecting the proper location for your washer improves
performance and minimizes noise and possible washer “walk.”
Your washer can be installed under a custom counter, or in a
basement, laundry room, closet, or recessed area. See “Drain
System.” Companion appliance location requirements should
also be considered. Proper installation is your responsibility.
You will need
A water heater set to deliver 120°F (49°C) water to the
■
washer.
A grounded electrical outlet located within 6 ft (1.8 m)
■
of where the power cord is attached to the back of the
washer. See “Electrical Requirements.”
Hot and cold water faucets located within 4 ft (1.2 m) of
■
the hot and cold water ll valves, and water pressure of
20-100 psi (137.9-689.6 kPa).
A level oor with a maximum slope of 1" (25 mm) under
■
entire washer. Installing the washer on soft oor surfaces,
such as carpets or surfaces with foam backing, is not
recommended.
A sturdy and solid oor to support the washer with a total
■
weight (water and load) of 400 lbs (180 kg).
Do not operate your washer in temperatures below 32°F (0°C).
Some water can remain in the washer and can cause damage
in low temperatures.
Installation clearances
The location must be large enough to allow the washer
■
door to be fully opened.
Additional spacing should be considered for ease of
■
installation and servicing. The door opens more than 90°,
and it is not reversible.
Additional clearances might be required for wall, door, and
■
oor moldings.
Additional spacing of 1" (25 mm) on all sides of the washer
■
is recommended to reduce noise transfer.
Companion appliance spacing should also be considered.
■
Washer Dimensions
50
1
/2"
(1282 mm)
37
13
/16"
(961 mm)
27"
(686 mm)
28
13
/16"
(732 mm)
44
5
/8"
(1134 mm)
Door is not reversible.
