5. Unscrew the pump filter and pull it out of the
filter housing. If necessary, use a pair of
pliers to loosen it.
6. To disconnect the tub-to-pump and pump-to-
drain hose, squeeze the ears of the clamps
and pull the hoses off.
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
1. Unplug washer or disconnect power.
2. Turn off the water supply to the washer.
3. Remove the lower service panel
(See page 4-21).
4. Place a towel or shallow pan below the
pump to catch any water that may be left in
the system.

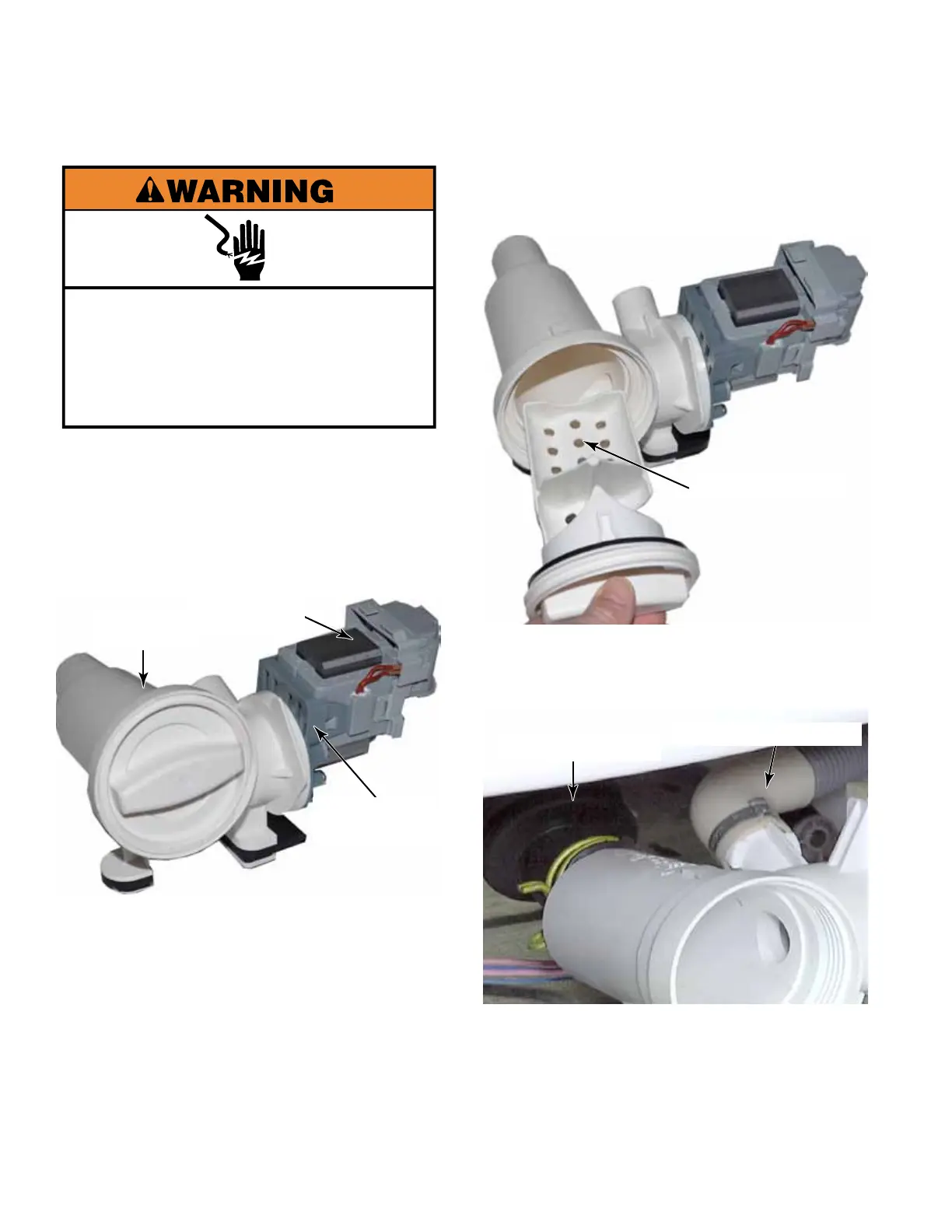

DRAIN PUMP
Drain Pump Filter
Tub-To-Pump Hose
Pump-To-Drain Hose
Pump Impeller
Assembly
Filter
Housing
Pump Motor
Assembly
To Next Page
