4-19
5. Remove the hinge by lifting the hinge blocks
off the molded plastic pins.
6. Slide the blocks off each end of the hinge
shaft. There needs to be some white lithium
grease for lubrication on the shaft for these
hinge blocks.
7. To remove the door handle, remove two
T-20 screws that secure the door handle to
the inside of the outer trim ring.
8. Release two locking tabs with a flat blade
screwdriver. Lift the handle just enough to
hold the edge.

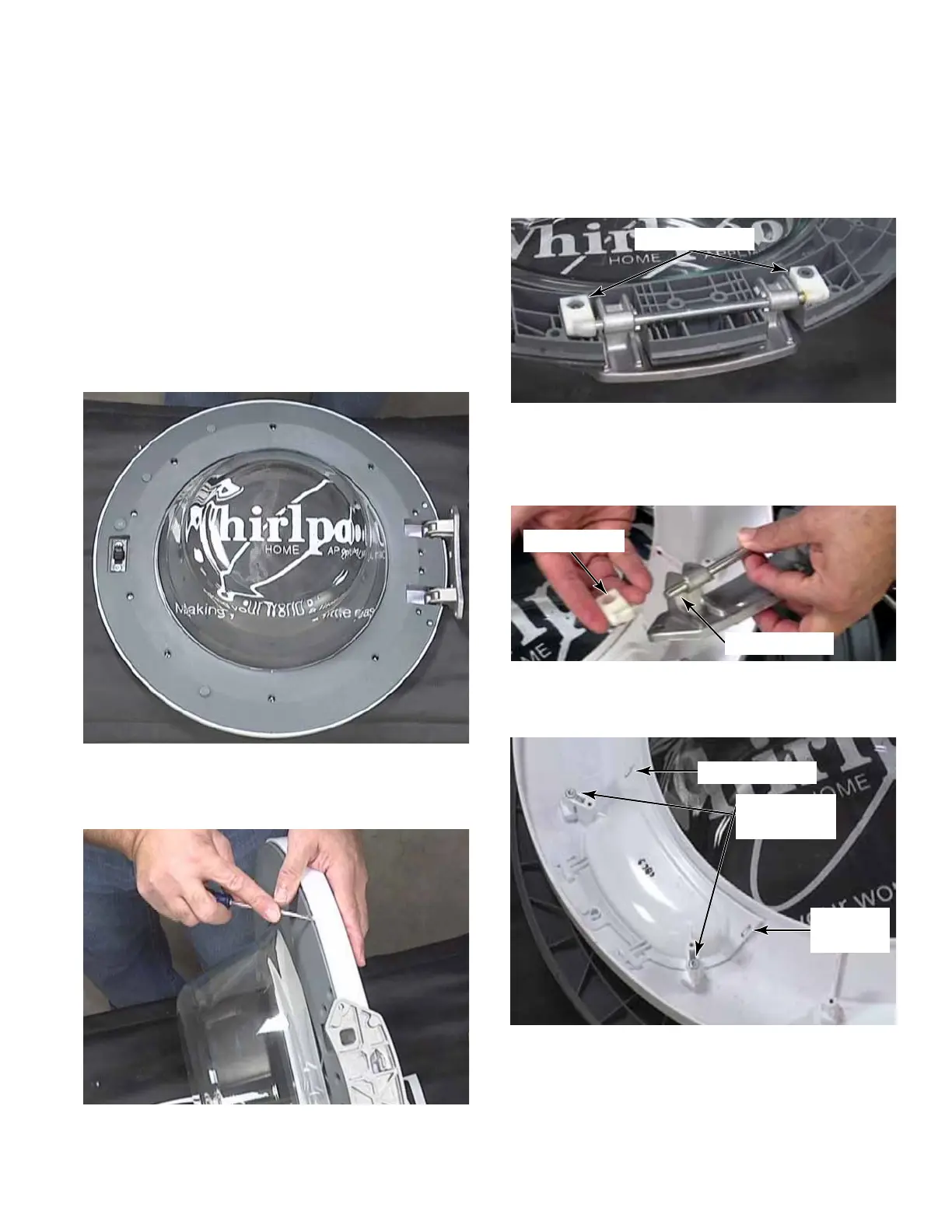

DOOR PARTS AND DISASSEMBLY
1. The door contains the outer trim, the door
handle, the inner trim, the glass bowl, the
hinge and the door hook.
NOTE: To avoid damage, lay a towel, or
another covering, on the washer top and
place removed hardware and tools on the
covering.
2. To disassemble the door, remove fourteen
T-20 screws from the inside of the door.
3. Use a small flat blade screwdriver to release
the clips around the edge of the outer door
trim to start separating it from the inner door.
4. Finish removing the outer trim by hand.
Hinge Blocks
Hinge Block
Hinge Shaft
Two T-20
Screws
Locking
Tab
Locking Tab
To Next Page
