4-39
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
1. Unplug washer or disconnect power.
2. Turn off the water supply to the washer.
3. Remove the chemical dispenser assembly
(See page 4-14).
4. Remove the back panel (See page 4-28).
5. Remove the front panel (See page 4-36).
6. To remove the flanged end of the dispenser
outlet hose, work the flange out of the hole
in the outer tub.
NOTE: When reassembling the dispenser
outlet hose, orient the arrow on the tube
toward the arrow on the outer tub.

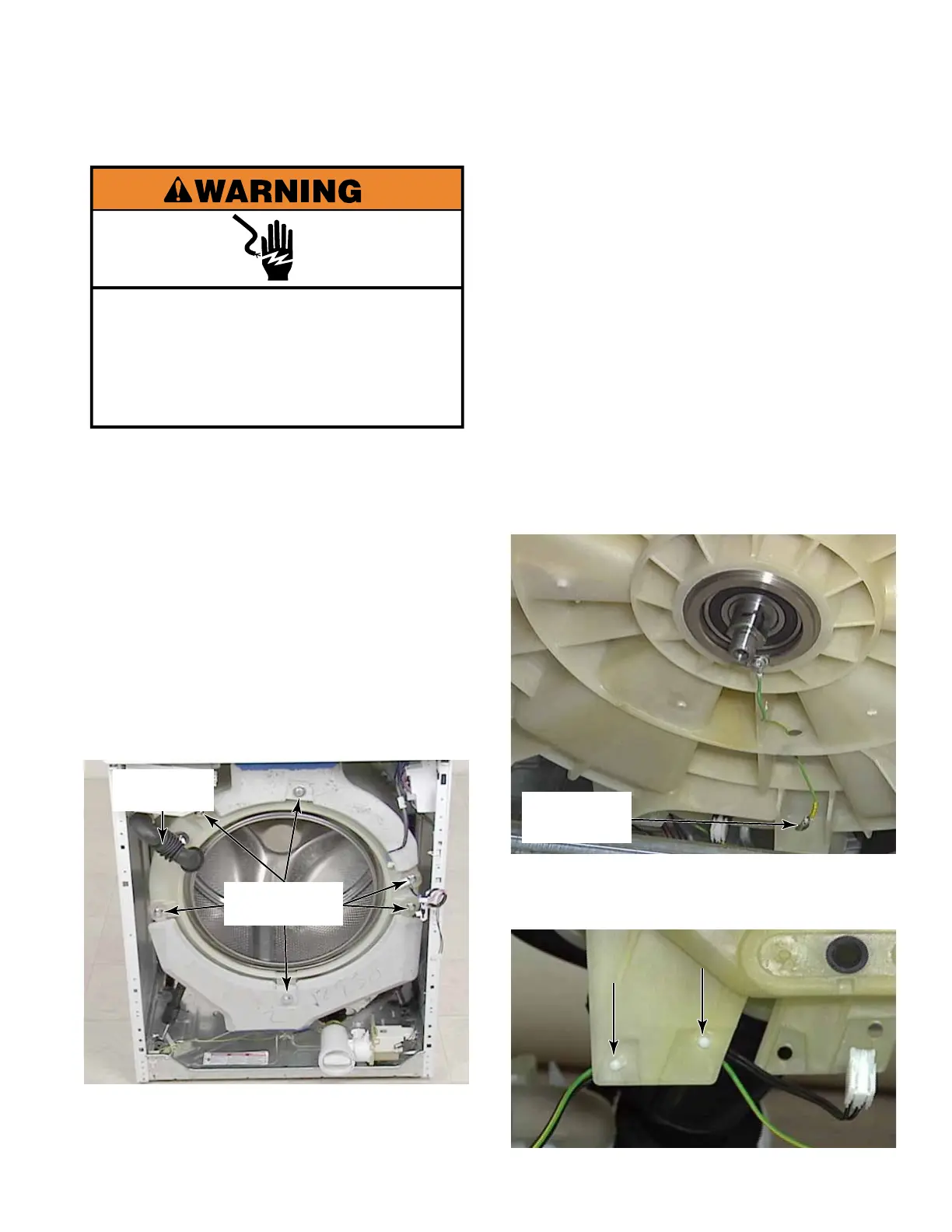

OUTER TUB AND SPIN BASKET ASSEMBLY
7. Remove the bellow (See page 4-37).
8. Remove the tub-to-pump hose
(See page 4-25).
9. Remove the drive belt (See page 4-31).
10. Remove the motor (See page 4-32).
11. Press the locking tab and remove the wire
connector from the temperature sensor.
12. Disconnect the ground wire to the hub
at the spade connection about 12 inches
from the hub. Follow the ground wire from
the hub to the connector to locate the
disconnecting point.
13. To remove the wire retainers, press the
Christmas tree clips out of the holes in the
bottom of the outer tub.
Dispenser
Outlet Hose
Front Weight
Screws
Ground Wire
Disconnect
To Next Page
