4-11

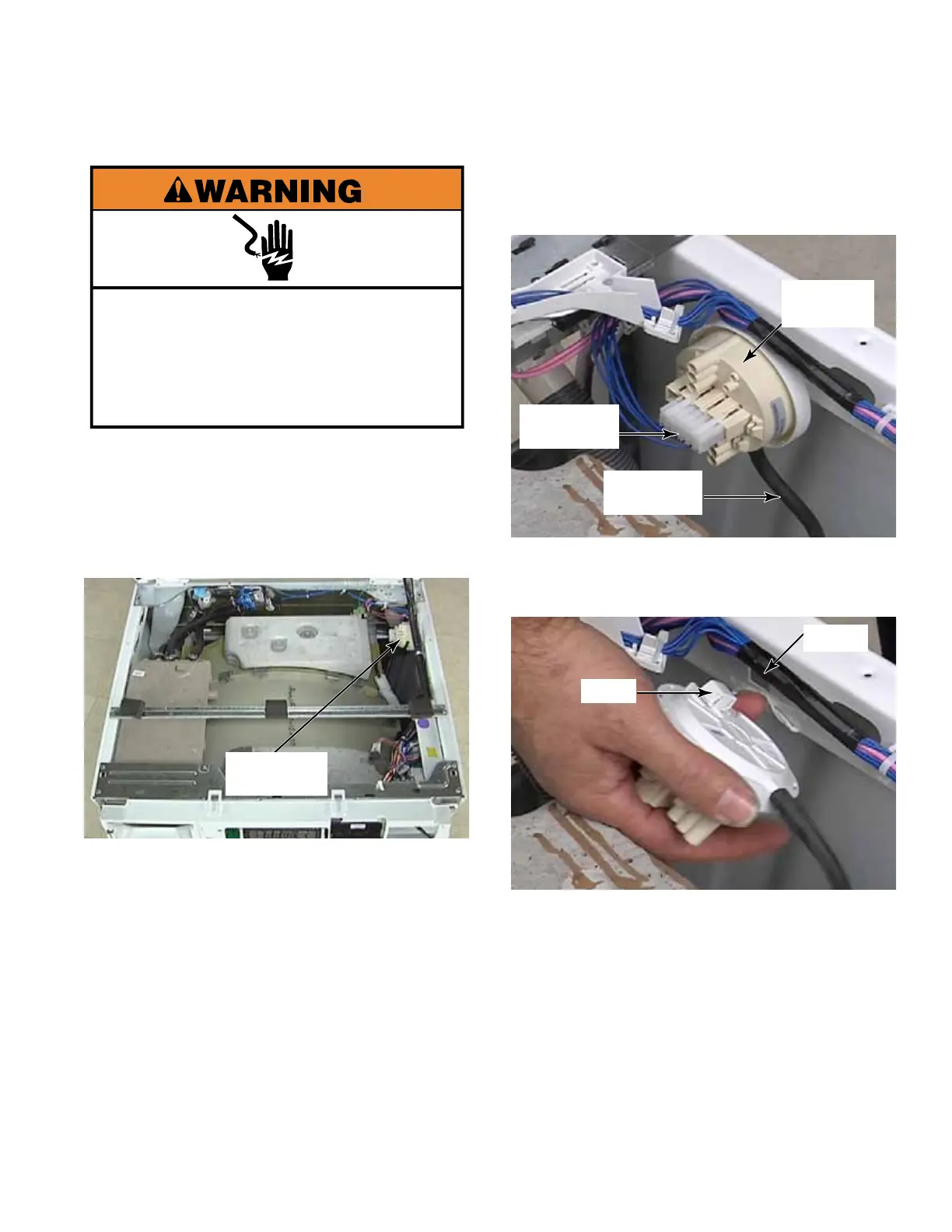

Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
1. Unplug washer or disconnect power.
2. Turn off the water supply to the washer.
3. Open the washer top (See page 4-3).
4. To disconnect the wire harness, press the
locking tabs and pull the wire harness off
the pressure switch.
PRESSURE SWITCH
5. Rotate the pressure switch 45 degrees and
pull the rectangular tab out of the slot in the
top of the washer side panel.
6. Disconnect the air hose at the bottom of the
pressure switch, there is no clamp, just a
pressure fit.
NOTE: Hose should be snug to avoid air
leaks.
Pressure
Switch
Wire
Connector
Pressure
Hose
Key
Slot
Pressure
Switch
