4-37
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.

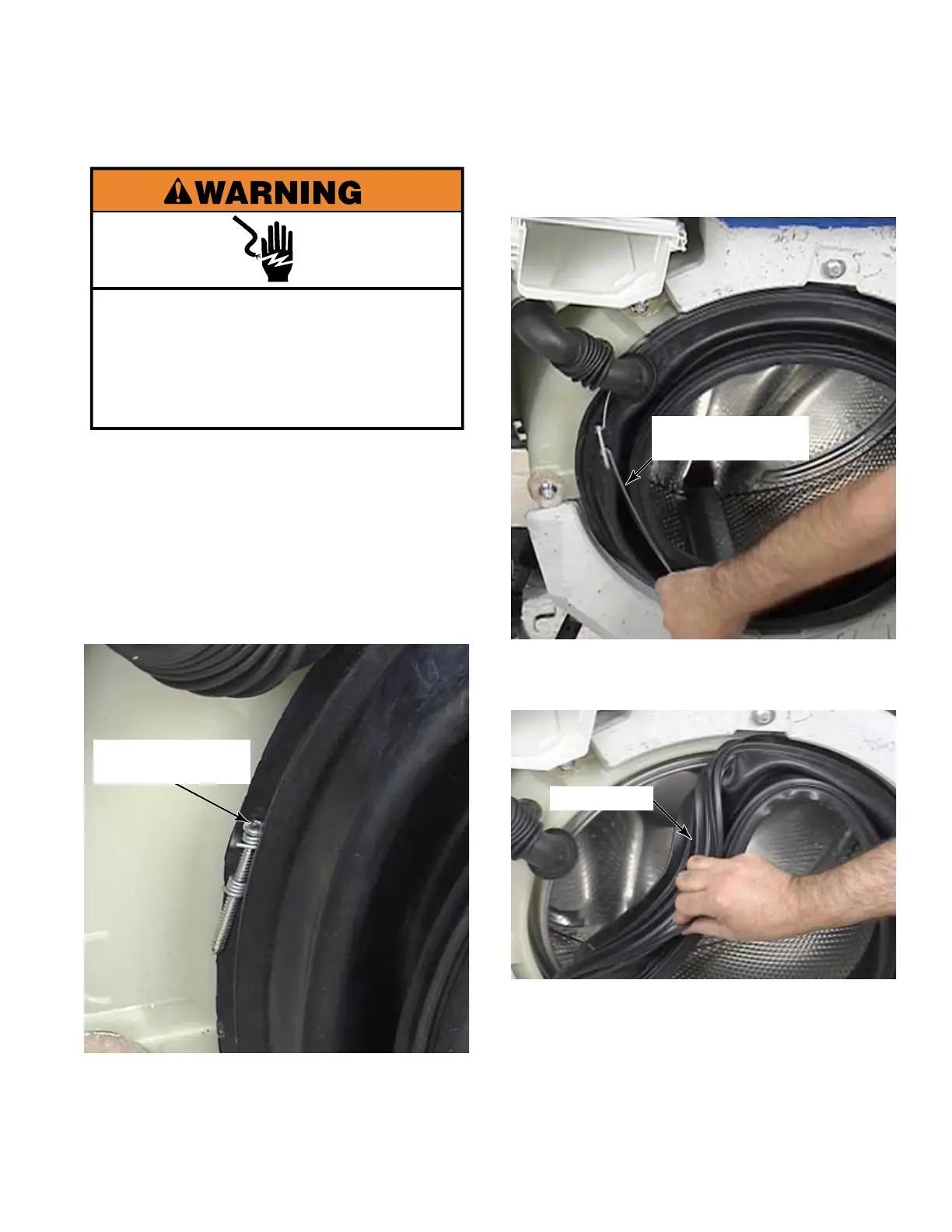

1. Unplug washer or disconnect power.
2. Turn off the water supply to the washer.
3. Remove the front panel (See page 4-36).
4. Loosen the Phillips screw of the clamp
securing the back of the bellow to outer tub.
BELLOW
5. Remove the bellow retaining clamp from
around the bellow.
6. Roll the bellow off the flange of the outer tub
to remove it.
Bellow Retaining
Clamp Screw
Bellow Retaining
Clamp
Bellow
To Next Page
