5-7

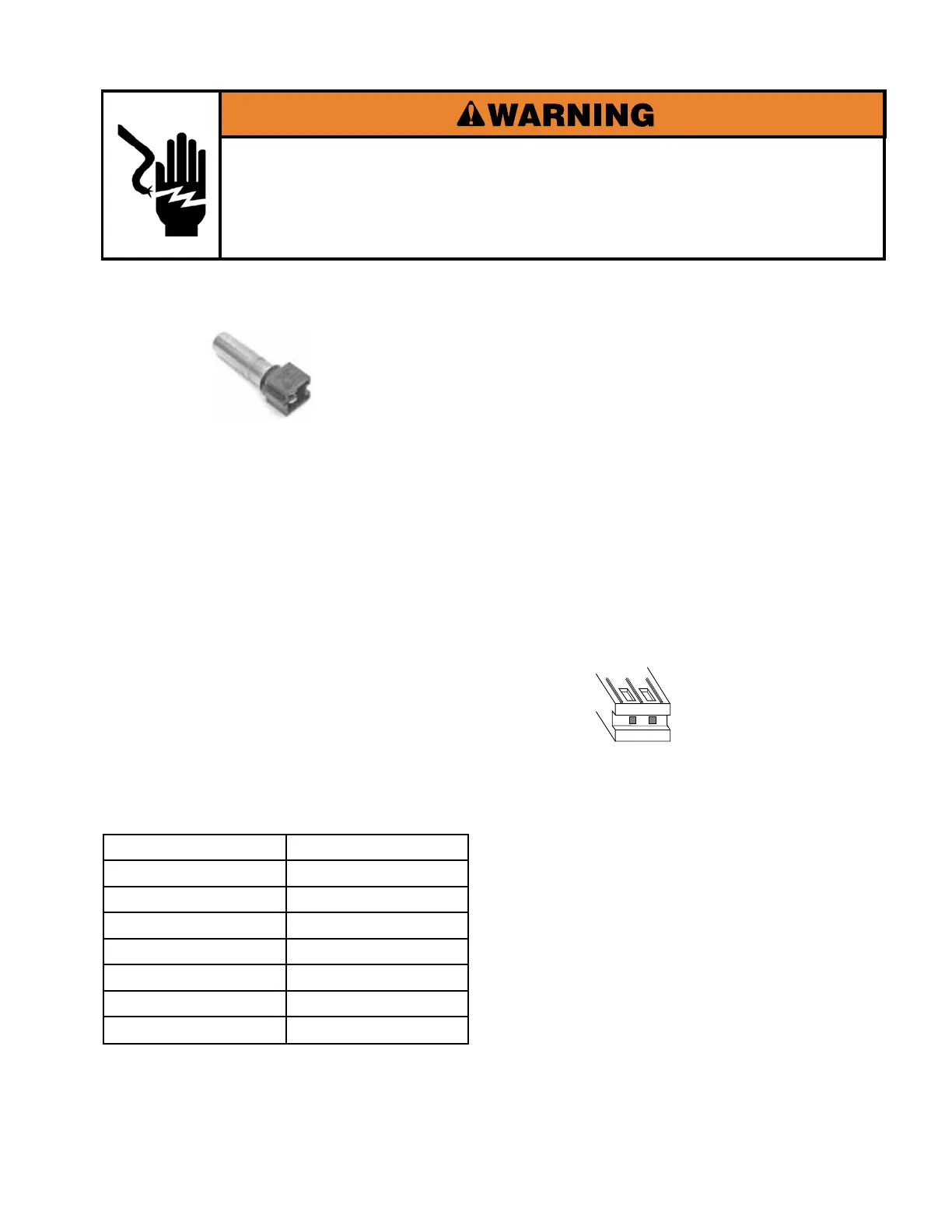

TEMPERATURE SENSOR
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.
See page 4-30 for the procedure to access
the temperature sensor.
To check temperature sensor at component
terminals, perform the following steps:
1. Unplug washer or disconnect power.
2. Disconnect the wire connector from the
temperature sensor.
3. Set the ohmmeter to the R X 1K scale.
4. To check the temperature sensor, touch
the ohmmeter test leads to the sensor
terminals. The meter should indicate as
shown in the chart below.
Temperature Result
32°F (0°C) 35.9k Ω
86°F (30°C) 9.7k Ω
104°F (40°C) 6.6k Ω
122°F (50°C) 4.6k Ω
140°F (60°C) 3.2k Ω
158°F (70°C) 2.3k Ω
203°F (95°C) 1k Ω
To check the temperature sensor at the CCU,
perform the following steps.
1. Unplug washer or disconnect power.
2. Disconnect the temperature sensor
connector TH2 from the CCU
(See page 4-9).
3. Set the ohmmeter to the R X 1K scale.
4. Touch the ohmmeter test leads to connector
pins 1 and 2. The meter should indicate as
shown in the previous chart.
1 2
Connector
TH2 at CCU
To Next Page
