5-8

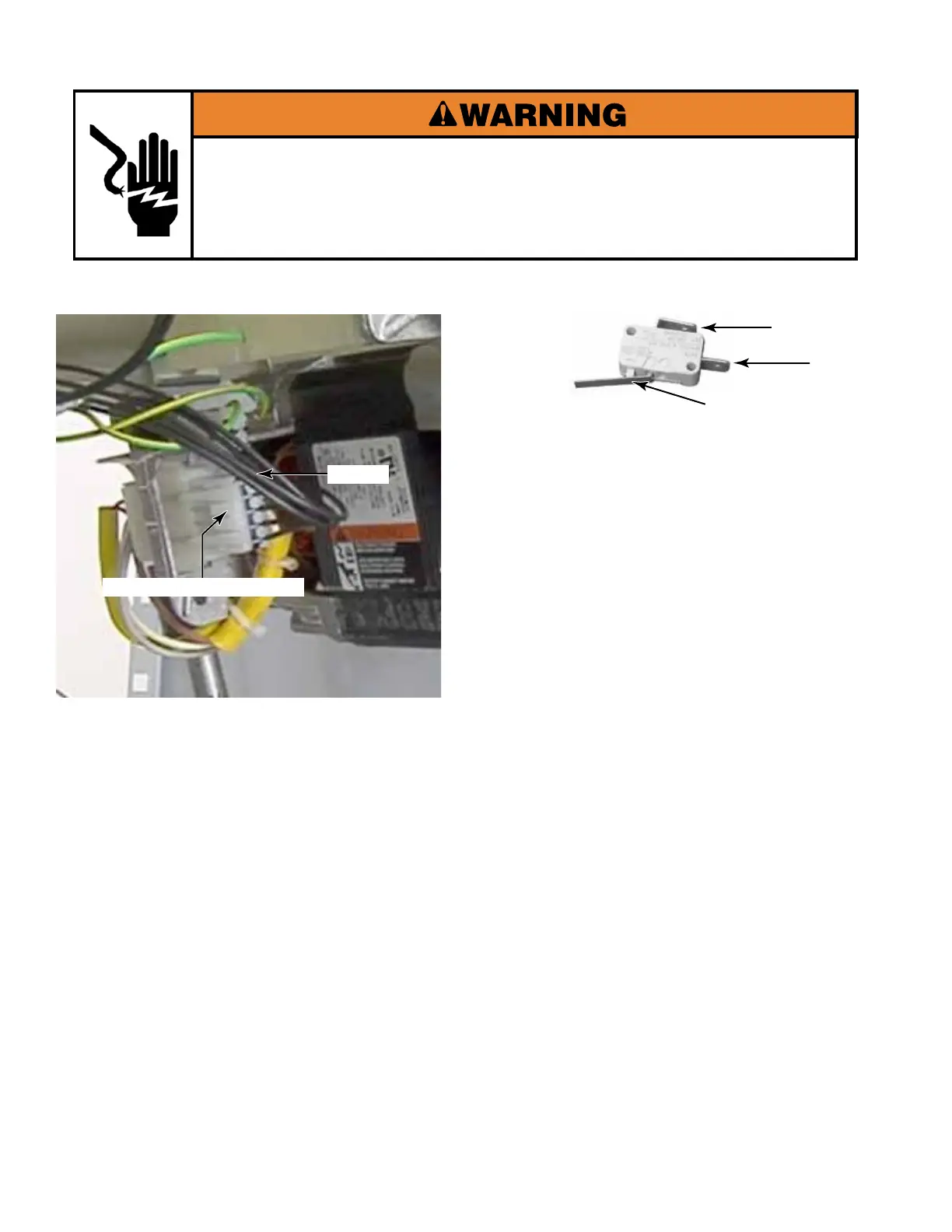

Pin 1
Drive Motor Connector
DRIVE MOTOR
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.
See page 4-32 for the procedure to access
the drive motor.
1. Unplug washer of disconnect power.
2. Disconnect the 5-wire connector from the
drive motor.
3. Set the ohmmeter to the R X 1 scale.
4. Touch the ohmmeter test leads to
the following motor pins. For each
measurement, the meter should indicate
approximately 6 Ω.
Pins 1 and 2
Pins 2 and 3
Pins 1 and 3
GROUND SWITCH
See page 4-26 for the procedure to access a
ground switch.
1. Unplug washer or disconnect power.
2. Disconnect the wire connectors from either
of the ground switch terminals.
3. Set the ohmmeter to the R X 1 scale.
4. Touch the ohmmeter test leads to the
two ground switch terminals. The meter
should indicate an open circuit (infinite Ω)
with the actuator button pushed in, and a
Closed circuit (0 Ω) with the actuator button
released.
Com
N.C.
Actuator Button
To Next Page
