4-13
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.

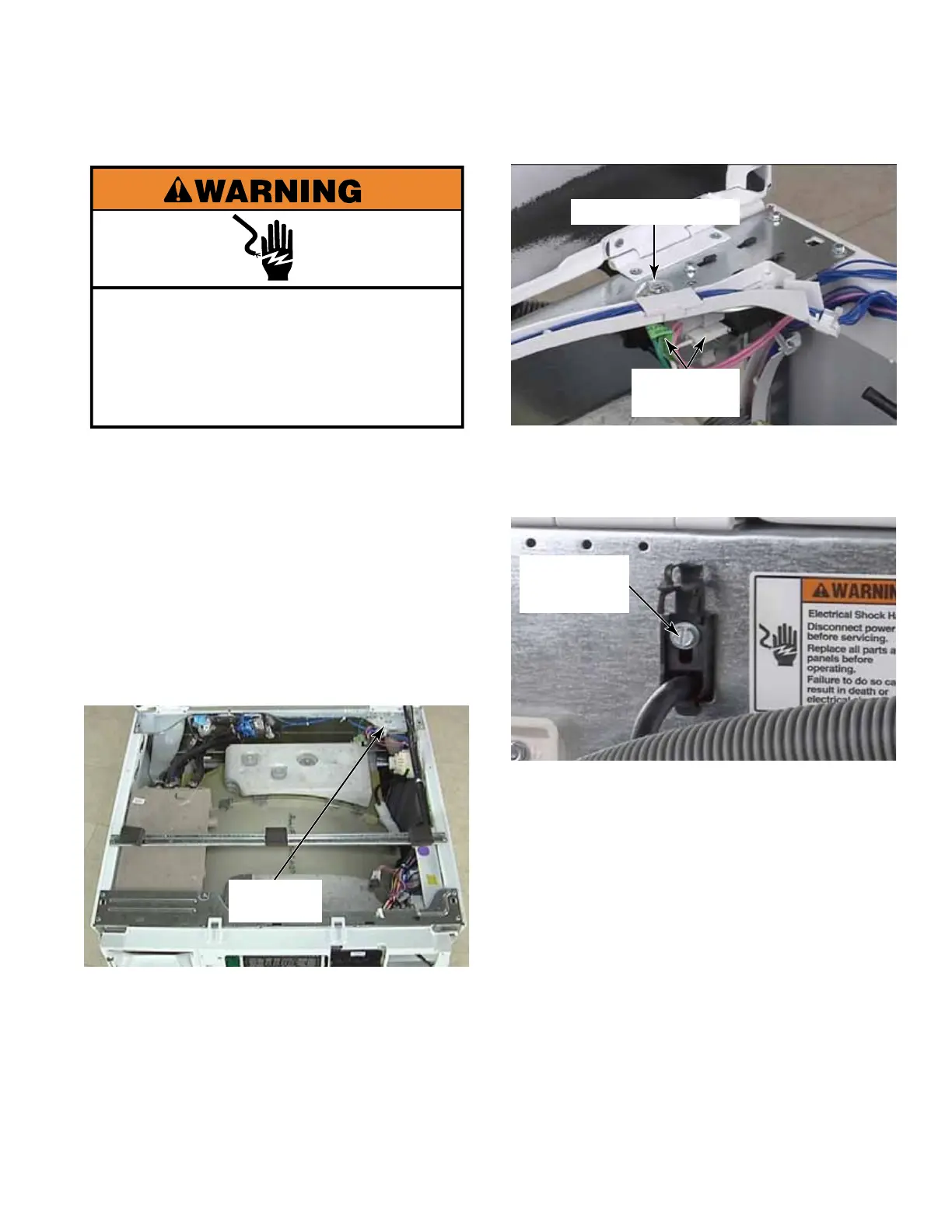

POWER SUPPLY CORD
7. Remove the one 1/4” hex head screw
securing the power supply cord strain relief
to the back panel of the washer.
8. Push the wire connectors out the back panel
of the washer.
2 Wire
Connectors
Ground Wire Screw
1. Unplug washer or disconnect power.
2. Turn off the water supply to the washer.
3. Open the washer top (See page 4-3).
4. Remove the screw from the green ground
wire. (See first picture in next column)
5. Pull the connectors with white and black
wires from the RFI line filter terminals.
6. Pull the washer away from the wall far
enough to access the power supply cord on
the back panel.
1/4” Hex
Head Screw
RFI Line
Filter
To Next Page
