DOOR AND HINGE
ASSEMBLY
1. Open the washer door.
2. Remove two 1/4” hex head screws that
secure the hinge to the front panel.
3. Lift the door and hinge assembly up and pull
the hooks out of the slots in the front panel.
DOOR HOOK
1. Open the washer door.
2. Remove two T-20 screws that secure the
hook to the door.
3. Depress the locking tab. Lift and slide the
hook out of the slot in the door.
REASSEMBLY NOTE: When reinstalling
the door hook, do not tighten the hook
completely. The hook should remain loose
enough to move as it needs to center itself
when the door closes.

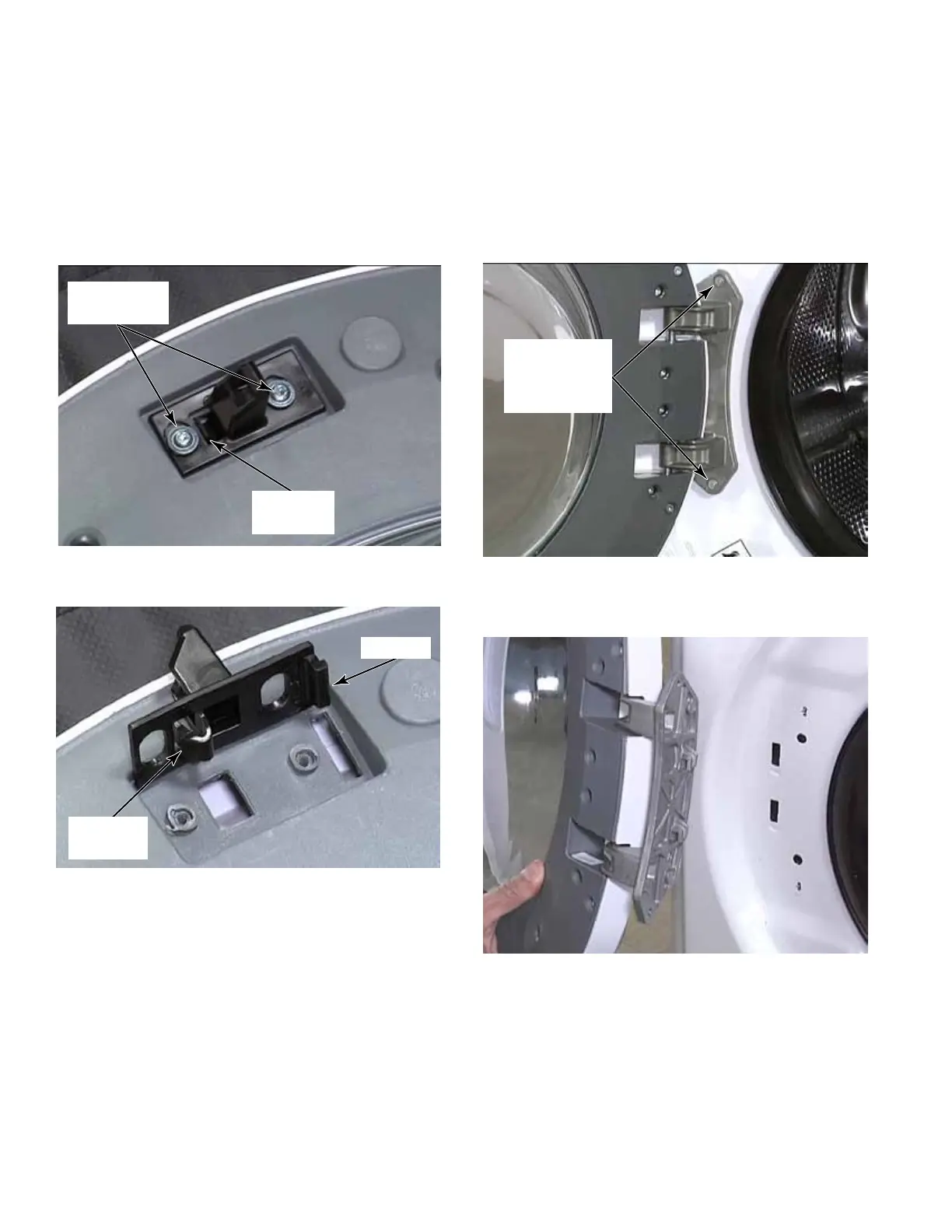

Two T-20
Screws
Locking
Tab
Two 1/4”
Hex Head
Screws
Locking
Tab
Hook
