5-3

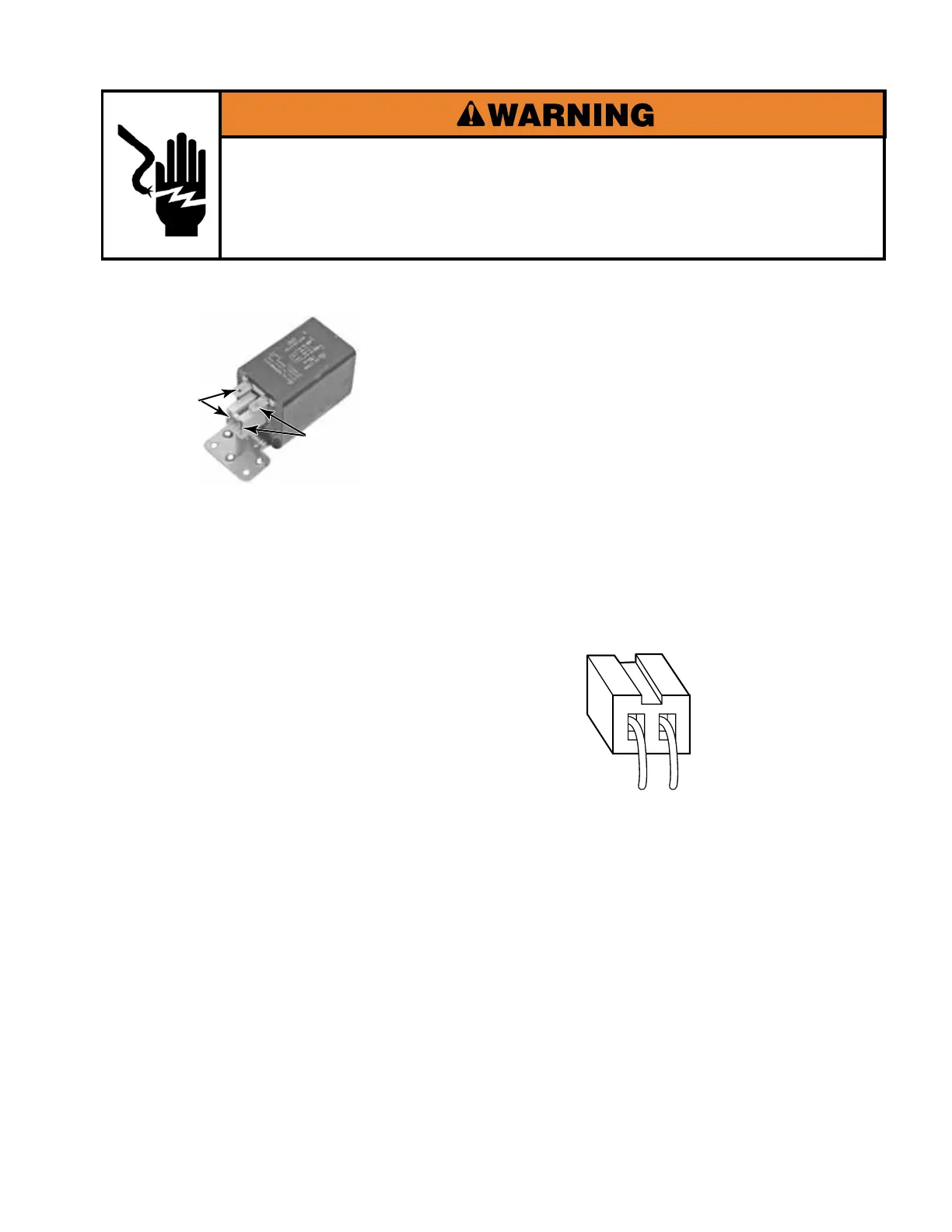

RFI LINE FILTER
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.
See page 4-12 for the procedure to access
the RFI line lter.
To check the RFI line lter at the component
terminals, perform the following steps.
1. Unplug washer or disconnect power.
2. Disconnect the wire connectors from the
RFI line filter.
3. Set the ohmmeter to the R X 1 scale.
4. Touch the ohmmeter test leads to the
following connector pins (shown above).
The meter should indicate 0 ohms for each
measurement.
Pins A and B
Pins C and D
To check the RFI line lter at the CCU,
perform the following steps.
1. Unplug washer or disconnect power.
2. Disconnect the RFI line filter connector IF2
from the CCU (See page 4-9).
3. Set the ohmmeter to the R X 1 scale.
4. Touch the ohmmeter test leads to wire
harness connector pins 1 and 2. The meter
should indicated 30 ohms.
Pins A & B
Pins C & D
2 1
Connector
IF2 At CCU
