4-24
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
1. Unplug washer or disconnect power.
2. Turn off the water supply to the washer.
3. Remove the drain pump (See page 4-22).

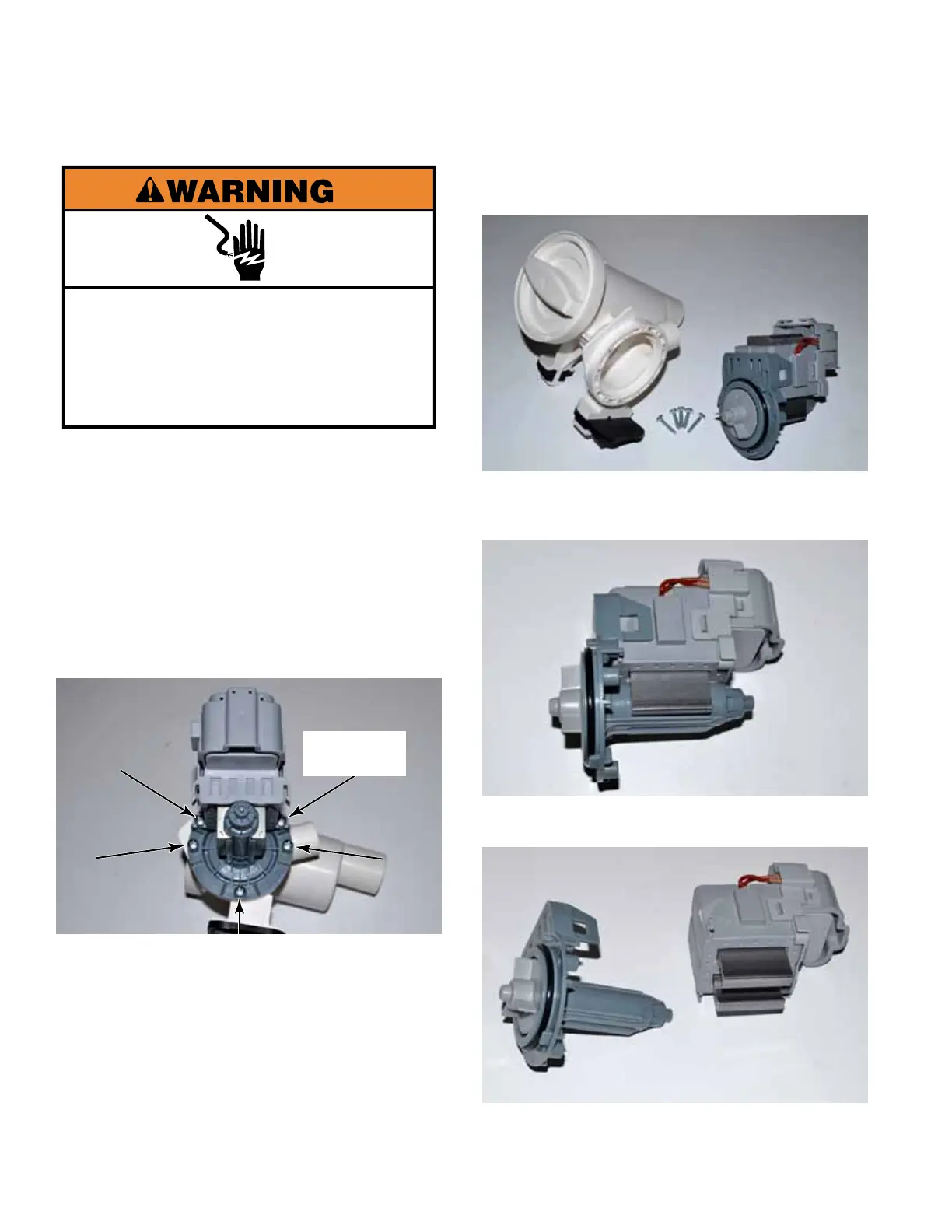

4. Remove five #2 Phillips screws securing
the impeller and motor to the filter housing.
The two screws that secure the motor are
slightly longer than the other three.
DRAIN PUMP MOTOR
5. Pull the motor and impeller from the filter
housing.
6. Use a flat blade screwdriver to release the
two tabs securing the impeller to the motor.
7. Slide the impeller off the motor.
5 Phillips
Screws
To Next Page
