Whirlpool CHW9060 - CHEMICAL DISPENSER; CONTROL PANEL AND FACIA

4-2
1. Unplug washer or disconnect power.
2. Turn off the water supply to the washer.
3. Remove four T-20 security machine screws
from the front of the facia.
4. Remove the chemical dispenser drawer
from the washer.
5. Remove two T-20 security sheet metal
screws, that were hidden by the chemical
dispenser drawer, at the left end of the
control panel.

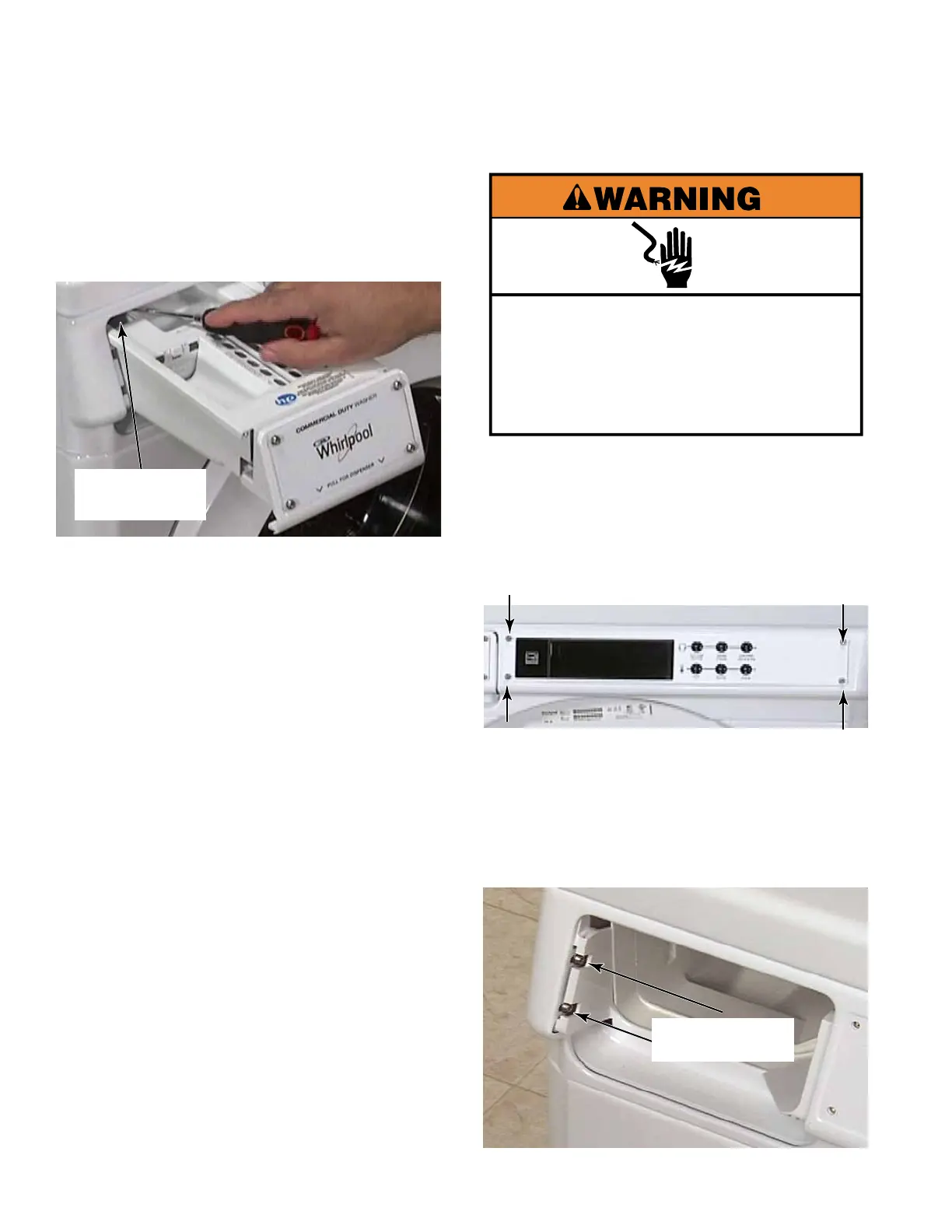

1. To remove the chemical dispenser drawer,
pull the drawer out as far as it will go.
2. Press the release tab down in the top left
back corner with a flat blade screwdriver.
3. Pull the drawer out of the washer.
4. To remove the chemical cup insert for
cleaning, lift it out of the chemical drawer.
5. To remove the locking tab, unclip it from
the slots in the top left back corner of the
chemical dispenser drawer. To reinstall it,
clip it into the slots.
6. To remove the front decorative plate,
remove four T-20 security sheet metal
screws.
TECH TIP:
n The chemical dispenser drawer decorative
front plate is secured with sheet metal
screws. The facia is secured with machine
screws. Avoid interchanging these screws.
n The front of the chemical dispenser drawer
is called the handle, and it can come off
if pulled too hard. To reinstall the handle,
straighten the tabs, hook the top 3 tabs
onto the drawer and rotate the front down
to engage the 3 tabs at the bottom into the
slots of the drawer.
CHEMICAL DISPENSER
DRAWER AND PARTS
FACIA AND CONTROL
PANEL COVER
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
Two T-20
Security Screws
Drawer
Release Tab
