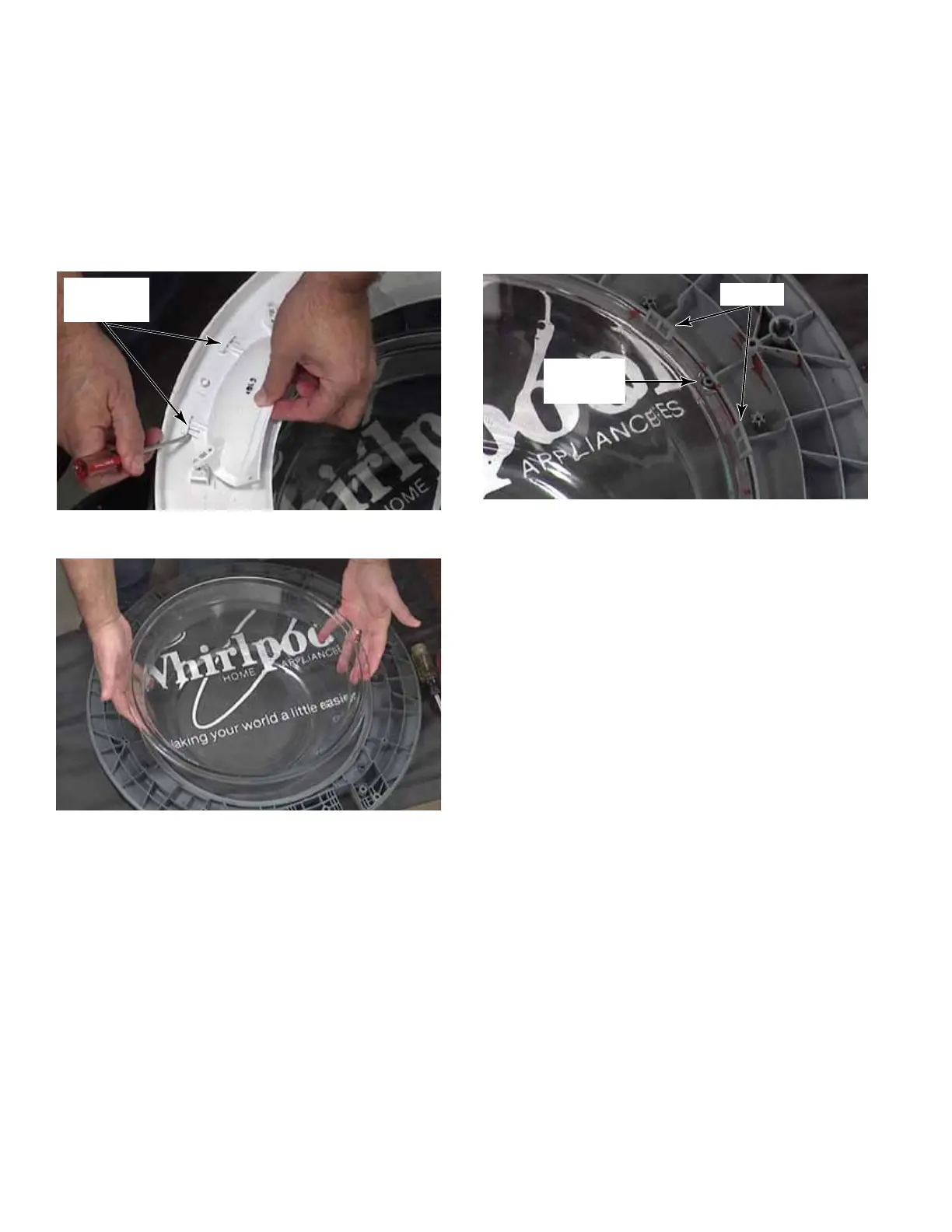

9. Release two locking clips at the other end
of the handle with a flat blade screwdriver.
Pull the edge of the handle to slide the tabs
out from the slots in the outer trim ring.
Remove the handle.
10. Separate door bowl from inner trim ring.
11. When reassembling the bowl and inner
trim ring, locate the notch on the rim of the
bowl. Locate the post and tabs on the inner
trim ring. Slide the rim of the bowl under the
two notches with the post in the notch.
12. There is no gasket or sealing material
between the inner trim ring and the bowl.
The bellow seats and seals against the
glass of the bowl, which should keep water
from reaching this area. This is why the
glass bowl needs to be cleaned periodically
to avoid build up of hair and debris.
Locking
Clips
Notch
& Post
Tabs
