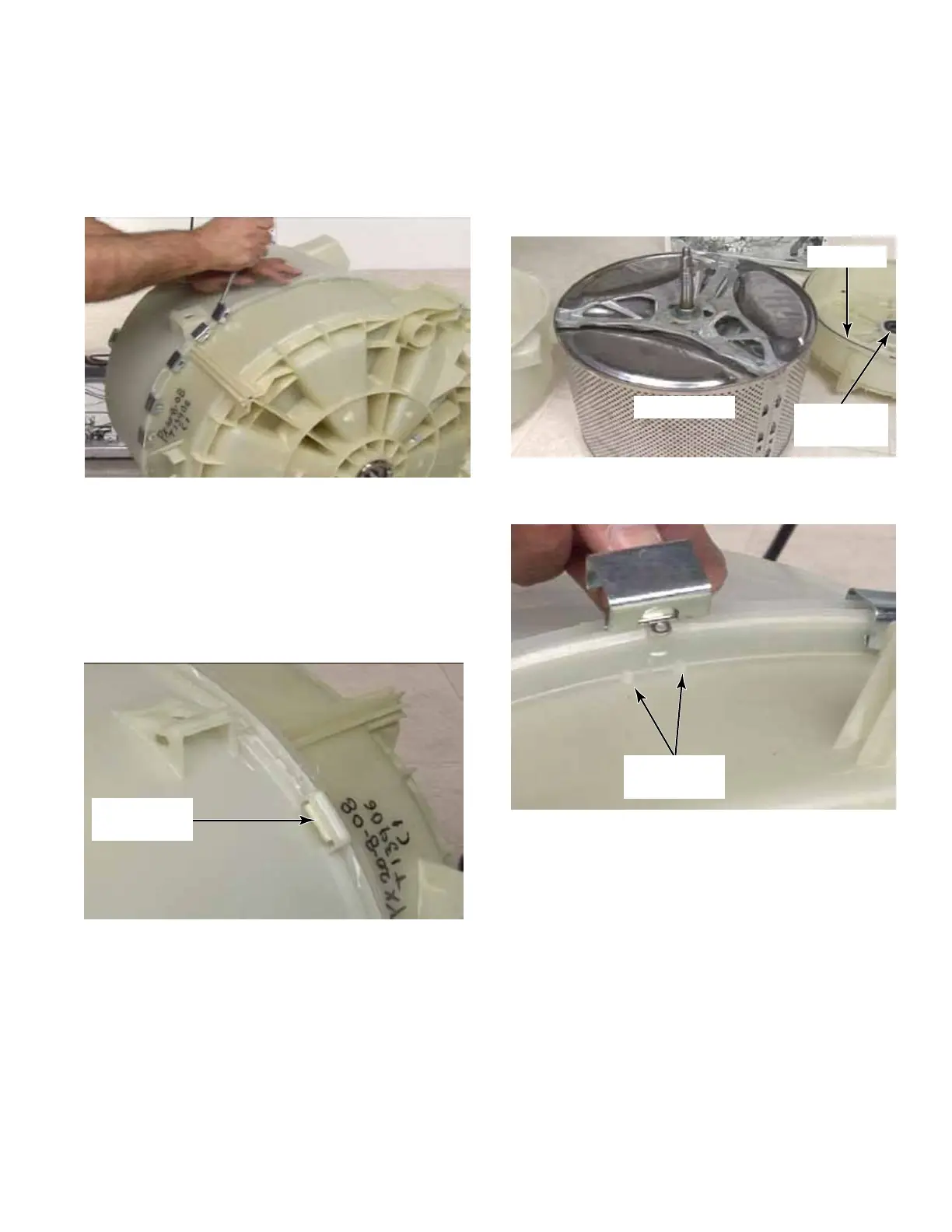

26. The gasket that seals the two tub halves
together should be removed and replaced in
the channel around edge of back tub half.
27. When replacing the metal clips, place
them at each location of 2 raised indicators.
28. Tap clips onto outer tub with a hammer.
29. There may be more clip locations than
there are clips. Use the extra clips supplied
with the replacement part, or mark the areas
where clips are missing before removal of
the clips.
22. To remove the tub clamps, pry them off
with a flat blade screwdriver.
23. Press the tab on 2 of the 3 guides around
the edge of the outer tub to release the
tub halves. The 3 guides will assist in re-
aligning the tub halves during reassembly.
24. Once the halves have been separated the
spin basket can be pulled from the back tub
half.
25. The bearings and seals are located in the
back half of the outer tub.
Alignment
Guide Tab
Spin Basket
Bearing
And Seal
Gasket
Raised
Indicators
