4-47

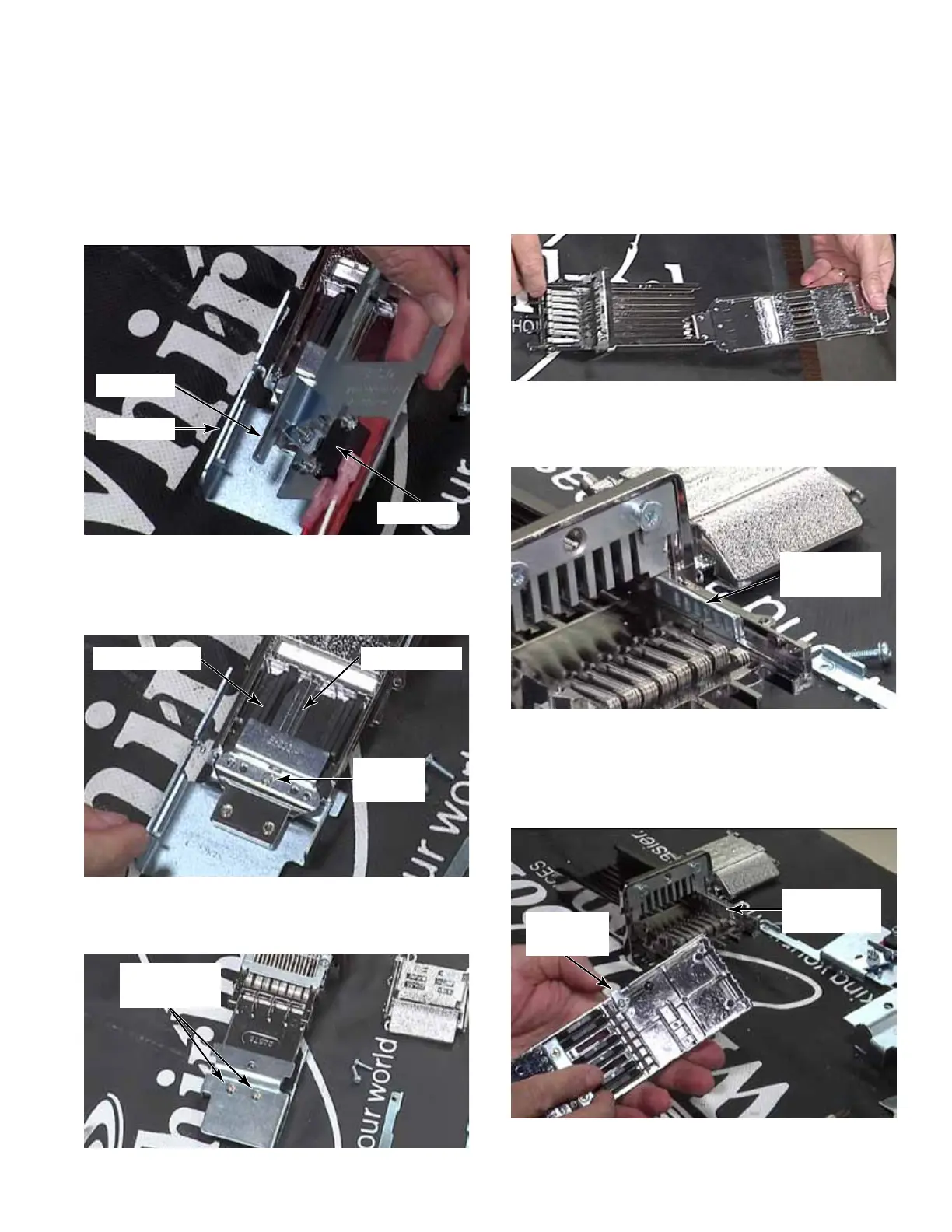

12. Turn coin slide back to the upright position
and push the sliding portion of the assembly
out the front.
13. Take note of the ratchet key installed along
the edge of the slide. Make sure to reinstall
this piece during reassembly.
14. There is a ratcheting tab on the bottom of
the slide that catches in the holes. During
normal operation, this keeps the slide from
being able to be pulled back out until it has
been slid all the way in.
9. The switch is attached to the top half of
the extension. Rotate the top half, from the
side, to remove the tab from the slot of the
bottom extension half.
10. To access spare inserts, remove Phillips
screw securing the retainer. There are spare
inserts with slots as well as blanks. Take
spare inserts out of the storage area.
11. Turn the coin slide over and remove two
Phillips screws that secure the bottom half
of the extension to the coin slide.
Slot
Switch
Tab
Spare SlotSpare Blank
Phillips
Screw
Two Phillips
Screws
Ratchet
Key
Ratchet
Tab
Ratchet
Key
