4-11

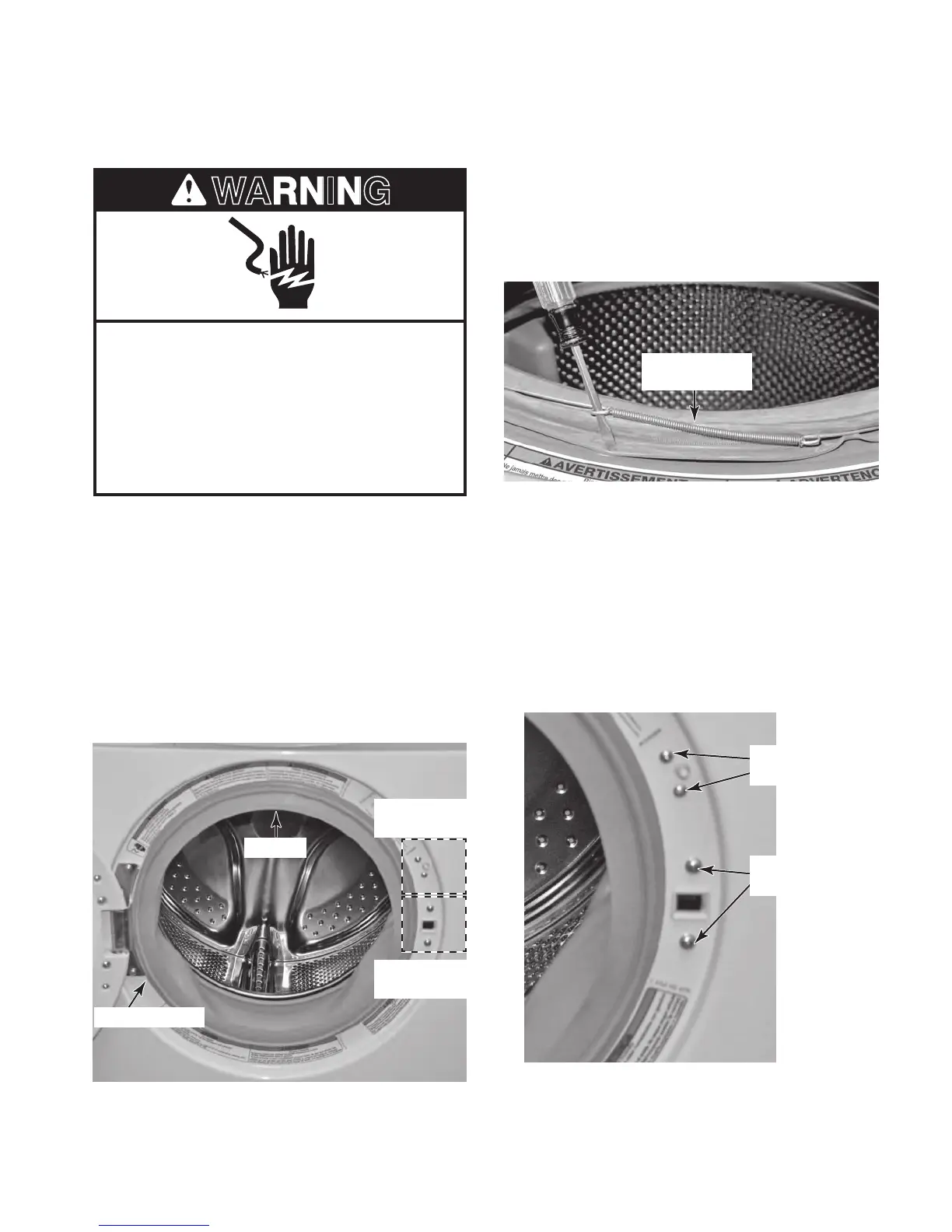

7. To remove the door switch assembly:
a) Pull the bellows off the lip of the front
panel beside the door switch assem-
bly just enough to access the switch
assembly.
b) Remove the two screws from the door
switch assembly and two screws from
the door lock assembly.
REMOVING THE DOOR SWITCH, DOOR LOCK ASSEMBLY
AND THE BELLOWS
1. Unplug washer or disconnect power.
2. Turn off the water supply to the washer.
3. Remove the top cover and the console
(see page 4-2 for the procedures).
4. Remove the lower front access panel
(see step 3 on page 4-9 for the proce-
dure).
5. Open the washer door.
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
WARNING
6. Using a small screwdriver or a pair of
long-nosed pliers, pull the tension spring
on the retaining wire out from around
the front of the bellows, and remove the
wire.
Retaining Wire
Tension Spring
Bellows
Door Switch
Assembly
Retaining Wire
Door Switch
Assembly Screws
Door Lock
Assembly Screws
Door Lock
Assembly
Continued on the next page.
