4-12
Bellows Retaining
Clamp Screw

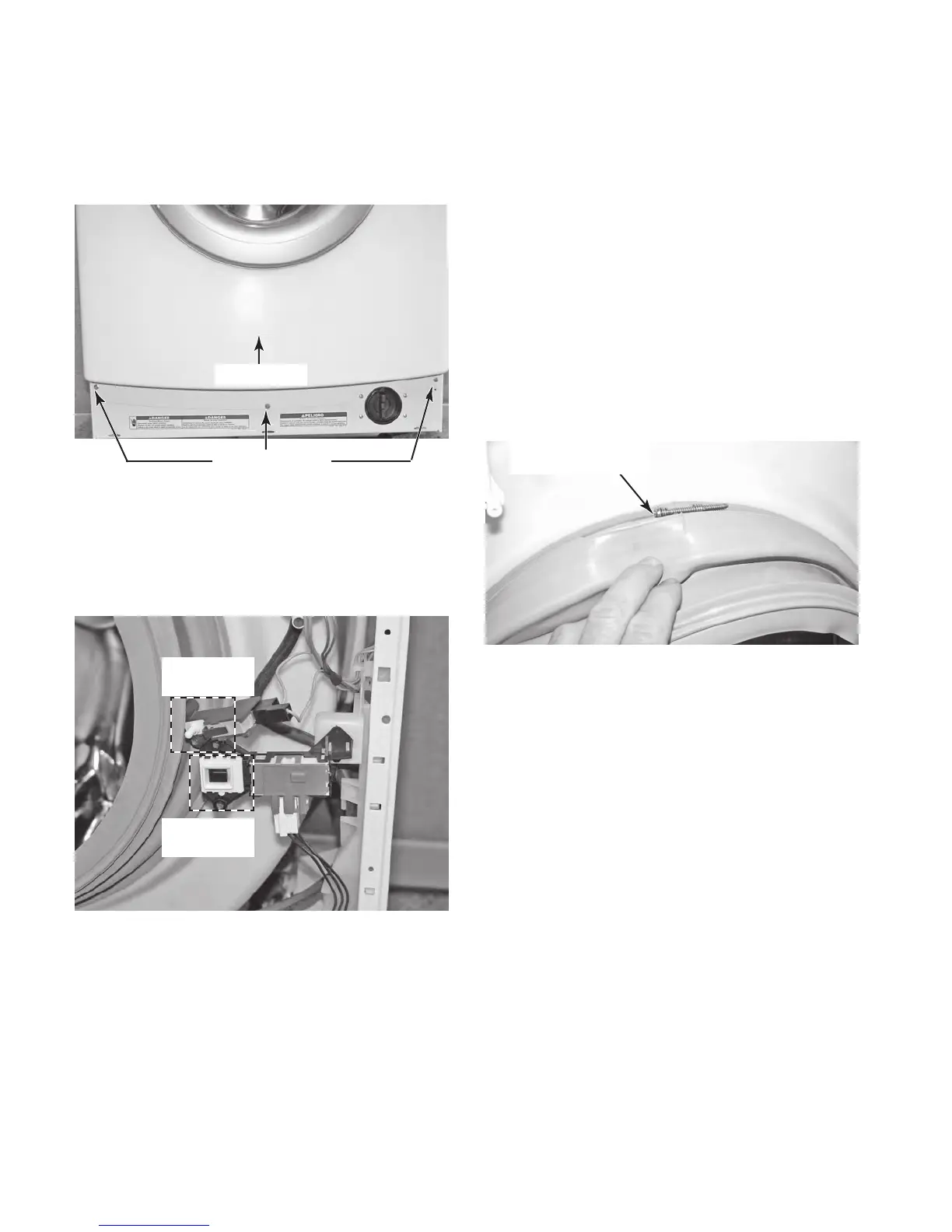

8. To remove the bellows:
a) Remove the two screws from the door
switch assembly and door lock assem-
bly (see the photo in step 7b).
b) Remove the front panel from the wash-
er (see page 4-9 for the procedure).
c) Turn the bellows retaining clamp screw
counterclockwise until the clamp is
loose enough to remove it from around
the bellows (see the top right photo).
NOTE: It may be necessary to com-
pletely remove the screw from one
end of the clamp.
c) Close the washer door.
d) Remove the three hex-head screws
from the bottom of the front panel and
remove the panel from the unit.
Front Panel
Bottom Screws
e) Disconnect the two connectors from
the door switch assembly and door
lock assembly.
Door Switch
Assembly
Door Lock
Assembly
To Next Page
