Operation
4618−1/A1
Winterthur Gas & Diesel Ltd.
3/ 5
2.2 WECS-9520 Manual Control Panel
The WECS−9520 manual control panel is a multi-purpose module that has an LCD
display (1, Fig. 2) and 15 function buttons (3).
1
2
3
xx
START
AHEAD
AIR
RUN
AUX.
BLOWER
PRESEL.
SPEED
CONTROL
MODE
REMOTE
AUTOM.
CONTROL
SAFETY
SYSTEM
RESET
STOP
ECR
MANUAL
CONTROL
SHD
OVERRIDE
START
ASTERN
SLOW
TURNING
AUX.
BLOWER
STOP
FUEL
CONTROL
MODE
LOCAL
MANUAL
CONTROL
SOUND
OFF-ALM.
ACKN.
WECS−9520 MANUAL CONTROL
xx
xx
xx
xx
xx
xx
xx

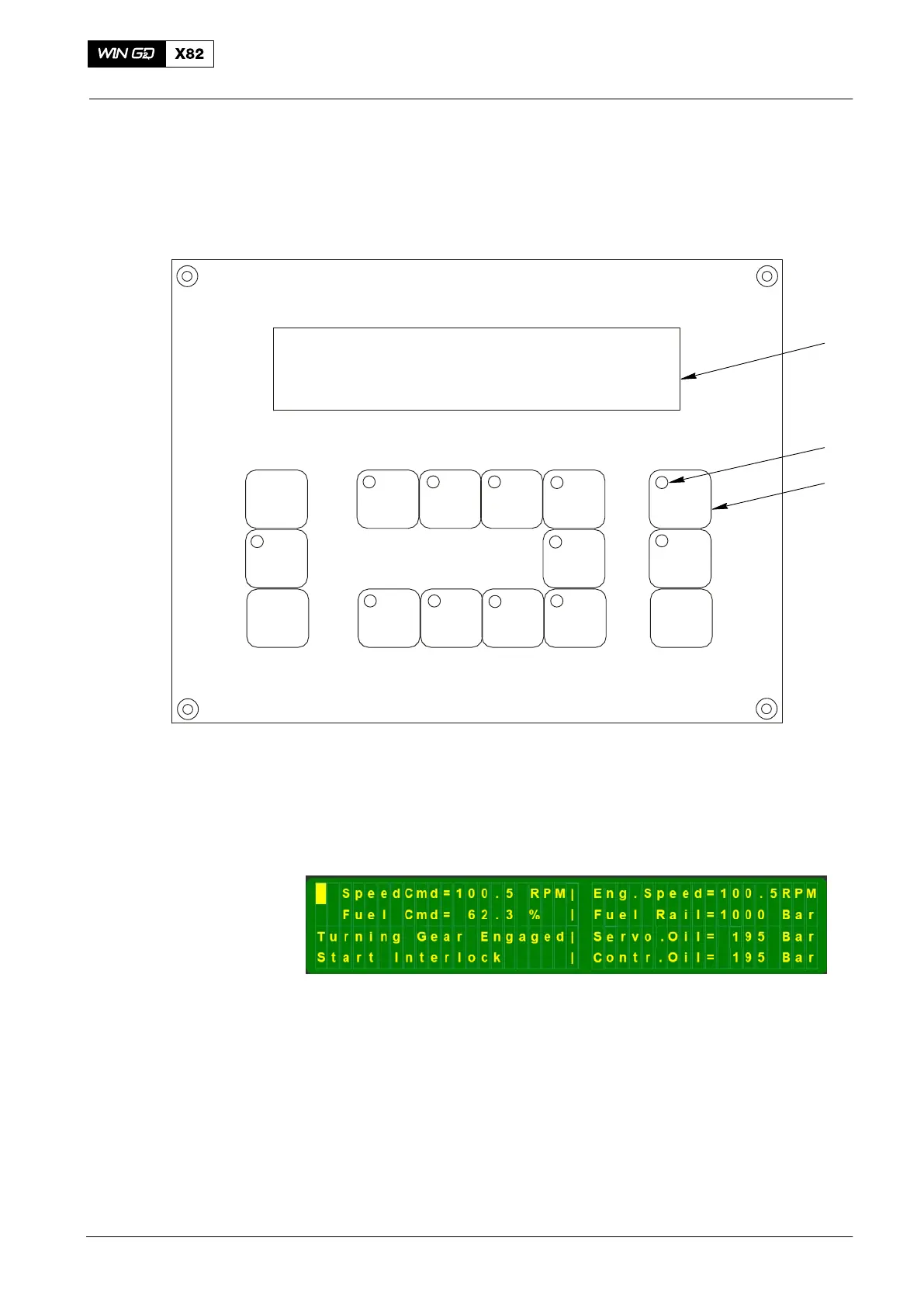

Fig. 2: WECS-9520 Manual Control Panel
1 LCD display 3 Function buttons
2 LED
A typical LCD display is shown below.
Important conditions are shown on the left in the third and fourth lines as follows:
D Turning Gear Engaged and No Aux. Blower Running
D Emergency stop
D Overspeed
D Shut-down signal active
D Shut-down signal is possible
D Slow-down signal request
D Start interlock (together with an indication in the third line).
Local Control Panel
2014
