Wolf Wall Ovens - Page 40

WWaallll OOvveennss
Electronic Control System
3-20
OFF
ON
TIMER
CLOCK
TEMPERATURE
BAKE
OVEN
ROAST
BROIL
BAKE STONE
CONV. BAKE
CONV. ROAST
CONV. BROIL
CONVECTION
1
2
3
4
56
7
89
ENTER
0
CLEAR
LIGHT
PROBE
COOK TIME
SELF CLEAN
STOP TIME
PANEL LOCK
ON/OFF
ON/OFF
3 00
0
75
°
key comm
1.07
:

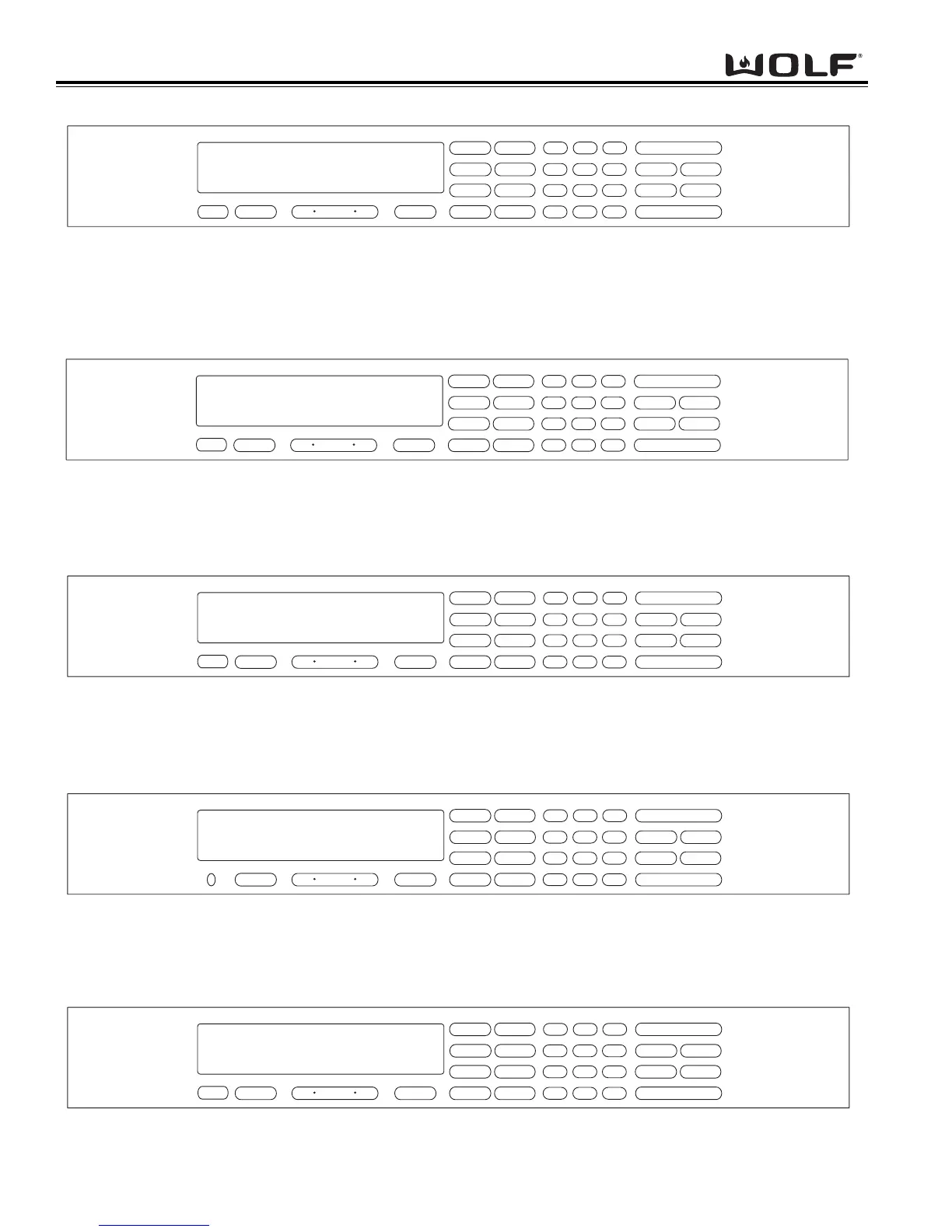

Figure 3-65. Keyboard Reporting Errors on Key(s) - This error indicates a failure between the Oven Controller and
the Head Assembly. (Reported by Display)
OFF
ON
TIMER
CLOCK
TEMPERATURE
BAKE
OVEN
ROAST
BROIL
BAKE STONE
CONV. BAKE
CONV. ROAST
CONV. BROIL
CONVECTION
1
2
3
4
56
7
89
ENTER
0
CLEAR
LIGHT
PROBE
COOK TIME
SELF CLEAN
STOP TIME
PANEL LOCK
ON/OFF
ON/OFF
3 00
0
75
°
comm err
1.07
:
Figure 3-66. Communication Lost with the Oven Controller Board - This error indicates a Head Assembly failure.
(Reported by Oven Controller)
OFF
ON
TIMER
CLOCK
TEMPERATURE
BAKE
OVEN
ROAST
BROIL
BAKE STONE
CONV. BAKE
CONV. ROAST
CONV. BROIL
CONVECTION
1
2
3
4
56
7
89
ENTER
0
CLEAR
LIGHT
PROBE
COOK TIME
SELF CLEAN
STOP TIME
PANEL LOCK
ON/OFF
ON/OFF
3 00
0
75
°
checksum
1.07
:
Figure 3-67. Eeprom Checksum is incorrect - Checked at power up, and when OVEN OFF key is pressed.
This error indicates an Oven Controller failure.
OFF
ON
TIMER
CLOCK
TEMPERATURE
BAKE
OVEN
ROAST
BROIL
BAKE STONE
CONV. BAKE
CONV. ROAST
CONV. BROIL
CONVECTION
1
2
3
4
56
7
89
ENTER
0
CLEAR
LIGHT
PROBE
COOK TIME
SELF CLEAN
STOP TIME
PANEL LOCK
ON/OFF
ON/OFF
3 00
0
75
°
probe shorted
1.07
:
Figure 3-68. Meat Probe Sensed as being Shorted - This error occurs if the meat probe is not inserted all of the
way. This error may indicate a meat probe failure.
OFF
ON
TIMER
CLOCK
TEMPERATURE
BAKE
OVEN
ROAST
BROIL
BAKE STONE
CONV. BAKE
CONV. ROAST
CONV. BROIL
CONVECTION
1
2
3
4
56
7
89
ENTER
0
CLEAR
LIGHT
PROBE
COOK TIME
SELF CLEAN
STOP TIME
PANEL LOCK
ON/OFF
ON/OFF
3 00
0
75
°
eeprom
1.07
:
Figure 3-69. Cannot Read or Write to the Eeprom - This error indicates an Oven Controller failure.
