Component Access and Removal
WWaallll OOvveennss
4-4
C-Channel Top and Bottom Removal
Unplug the switch actuator wire harness connector from
the stepper motor control board and pull the wire har-
ness out from its routing. Next, extract the screws that
secure the c-channels to the mounting bracket.
(See Figure 4-5). Now, tilt the c-channels down slightly
and lift off the mounting pins and remove from the unit.
(See Figure 4-6). Now, you can separate the top and
bottom c-channel by sliding the two apart.
Switch Actuator and Plunger Removal
The switch actuator and plunger is mounted to the bot-
tom c-channel. Once the c-channels have been
removed, extract the two screws from the switch actua-
tor bracket and remove. (See Figure 4-7). Now, slide
the plunger out from the c-channel. (See Figure 4-8).

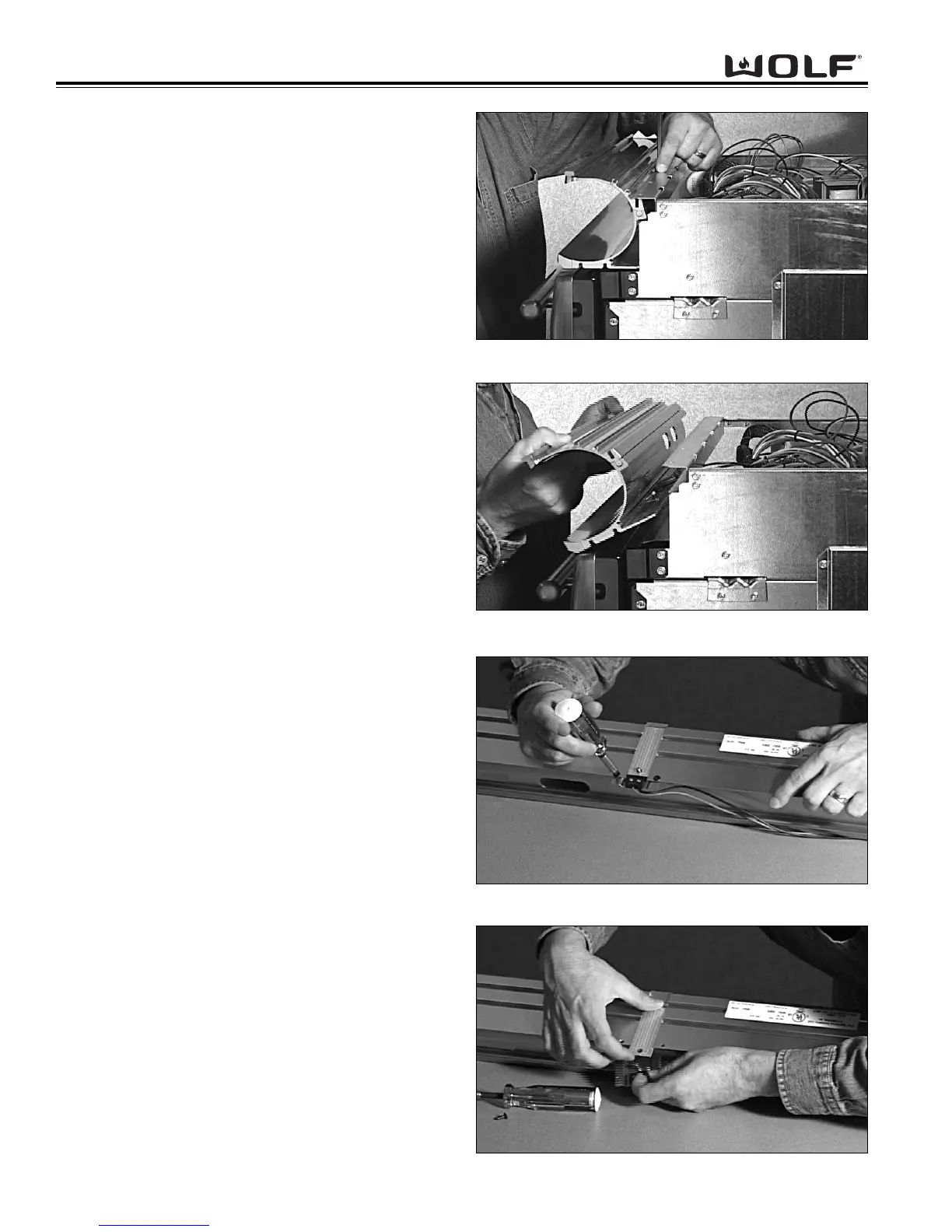

Figure 4-5. C-Channel Top and Bottom Removal.
Figure 4-6. C-Channel Top and Bottom Removal.
Figure 4-7. Switch Actuator Removal.
Figure 4-8. Switch Actuator Plunger Removal.
