Component Access and Removal
WWaallll OOvveennss
4-11

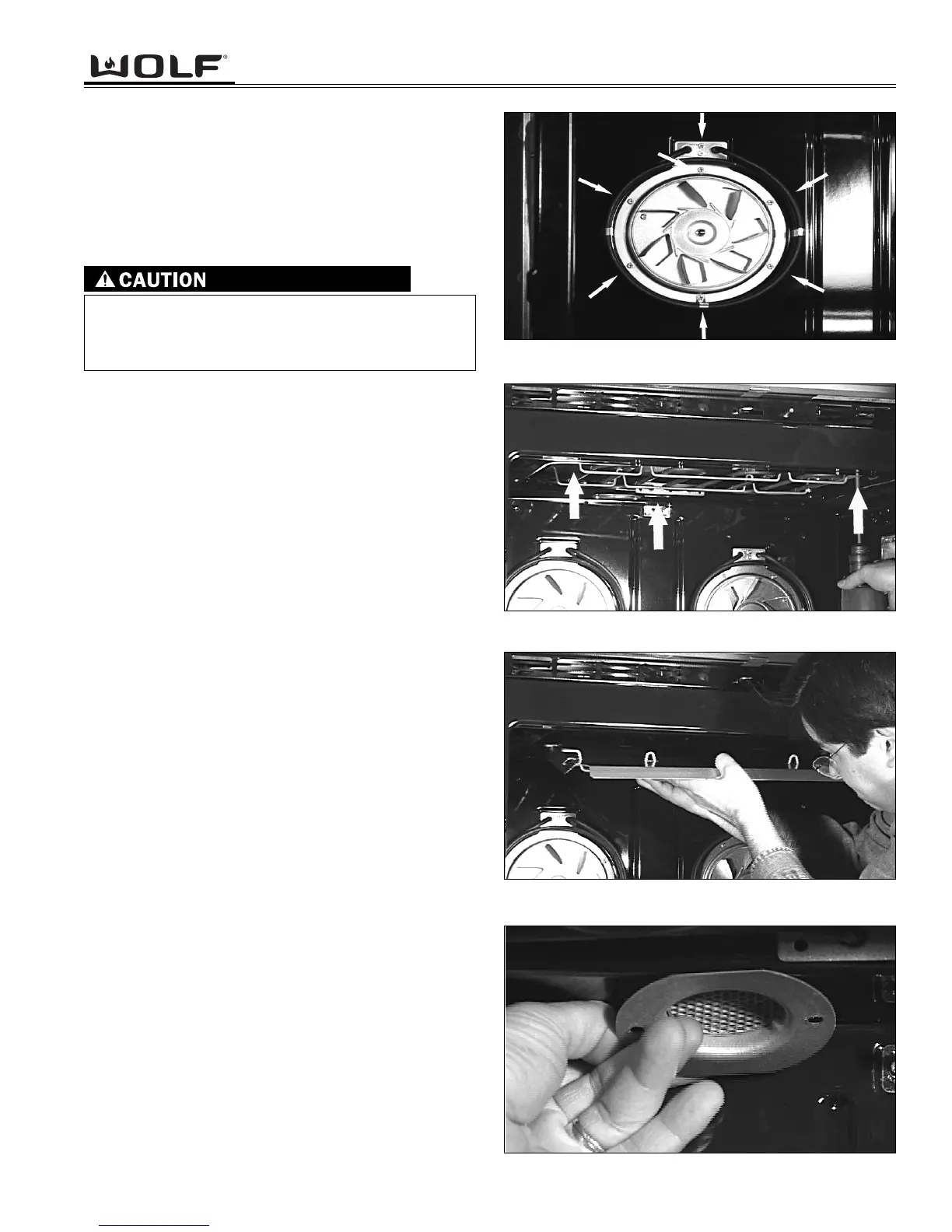

Convection Fan Assembly Removal
The racks, rack guides and convection baffle plate will
need to be removed first. Then, extract the seven
screws around the convection fan and the top screw
located between the element (where the element goes
through the oven cavity). (See Figure 4-31). Now, pull
fan assembly into oven cavity and disconnect wiring
and remove.
Broil Element and Broil Pan Removal
To have more room when removing the broil element,
remove the racks from the unit. Next, extract the four
screws that secure the element and broil pan to the
ceiling of the oven cavity. (See Figure 4-32). Now,
extract the two screws that secure the element leads
through the oven cavity. Then, pull the element forward
and down into the oven cavity until the terminals and
wires are exposed. (See Figure 4-33). Now, discon-
nect the wires and remove the element and broil pan.
Smoke Catalyst Removal
The catalyst is located in the rear ceiling of the oven
cavity. To remove, extract the two screws and pull cata-
lyst straight down and remove. (See Figure 4-34).
DO NOT remove convection fan by pulling on the
fan blade. The fan blade may bend resulting in
misalignment. To remove the convection fan, pull
fan assenbly out by the heating element.
Figure 4-31. Convection Fan Removal.
Figure 4-34. Smoke Catalyst Removal.
Figure 4-32. Broil Element Removal.
Figure 4-33. Broil Element Removal.
