Component Access and Removal
WWaallll OOvveennss
4-8
Upper Cooling Fan Removal
First, remove the air diverter bracket located in front of
the cooling fan. (See Figure 4-20). Next, extract the
three screws at the rear of the unit which secures the
cooling fan to the unit. (See Figure 4-21). Now, lift the
cooling fan up and disconnect the wiring from the fan
motor terminals and remove. (See Figure 4-22).
Terminal Block Removal
NOTE: You may want to mark the location of the wiring
to ensure proper placement when reassembling.
Disconnect the wires from the power cord at the termi-
nal block. Now, disconnect the wiring from the terminal
connectors on the block. Next, extract the two screws
which secure the terminal block to the mounting plate
and remove. (See Figure 4-23).

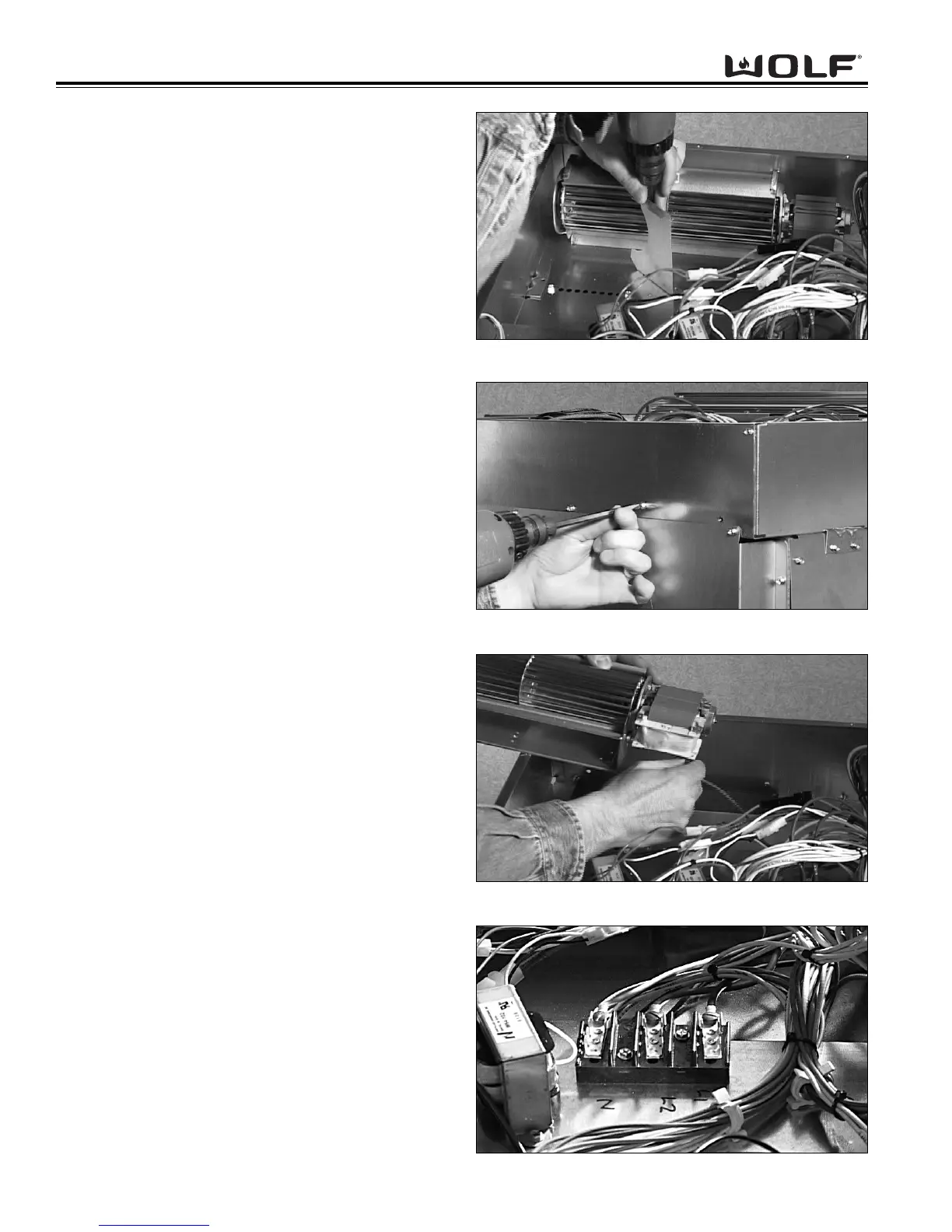

Figure 4-20. Air Diverter Removal.
Figure 4-21. Upper Cooling Fan Removal.
Figure 4-22. Disconnecting Wires from Cooling Fan.
Figure 4-23. Terminal Block Removal .
