Component Access and Removal
WWaallll OOvveennss
4-9
OVEN CAVITY COMPONENTS:
Left and Right Rack Guide Removal
First, remove oven racks. Then, extract the screws in
each corner, top and bottom of the rack guide and lift
guide out. (See Figure 4-24).
Oven Lights Removal
To remove the oven lights you will need to remove the
oven racks and guides. Next, the light cover will need
to be removed by gently pulling the light cover off the
light housing. (See Figure 4-25). Now, to remove the
light bulb, lift the bulb straight up and out of the light
bulb socket.
NOTE: When replacing the light bulb with a new one,
wrap a clean cloth around the new bulb so fingerprints
are not left on the new bulb. The greasy residue from
fingerprints may cause the new bulb to burn out prema-
turely.
Convection Baffle Plate Removal
First, the racks and rack guides will need to be
removed. Now, extract the screws in each corner, the
top and bottom of the convection baffle plate and
remove. (See Figure 4-26).
TURN OFF THE ELECTRICAL POWER GOING TO
THE OVEN BEFORE SERVICING.

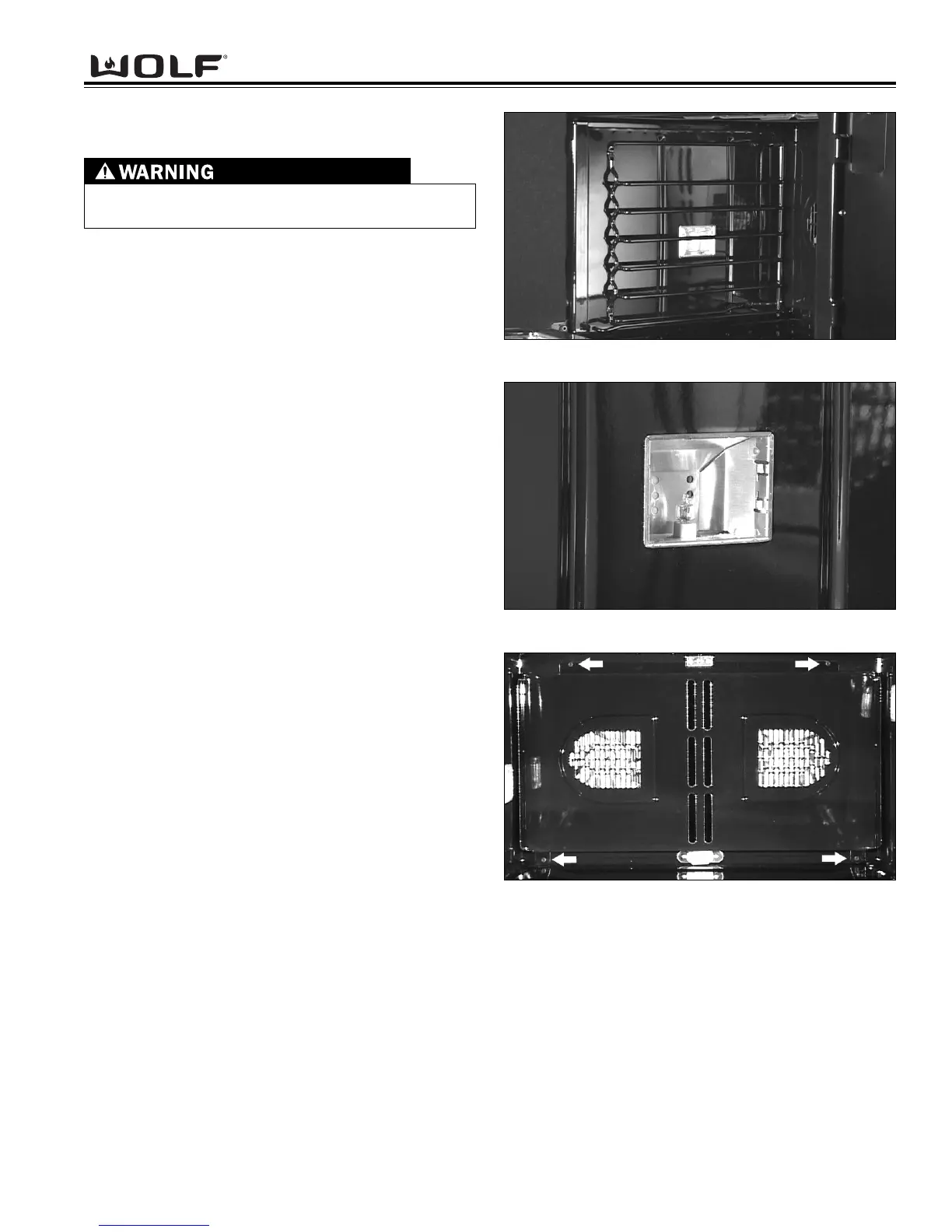

Figure 4-24. Rack Guide Removal.
Figure 4-25. Oven Light Removal.
Figure 4-26. Convection Baffle Removal.
