Woom OFF 4 - Installing the Pedals

34 Instructions for use
EN

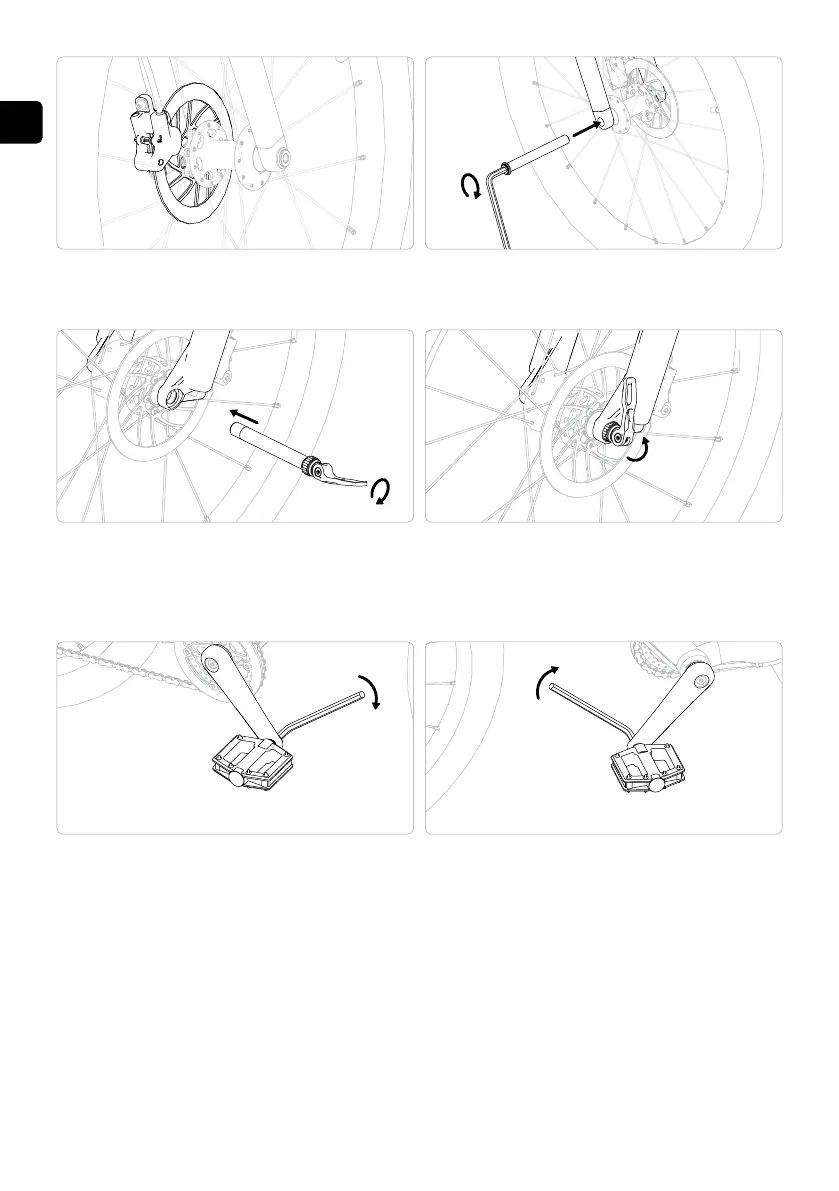

Install the front wheel. The disc brake rotor must be on the
left! Ensure that the disc brake rotor sits centrally between the
brake pads in the caliper.
woom OFF: Insert the thru-axle and tighten to the required
torque (see chapter 8).
woom OFF AIR: Insert the thru-axle and tighten it. Use the
dial underneath the lever to adjust the tension of the quick-
release lever.
woom OFF AIR: Then close the quick-release lever. If the
quick-release lever is hard to close, ease o the tension by
turning the dial. In the closed position, the lever should point
upwards.
5�2�6 Installing the pedals
Screw the pedal marked “R” into the right crank arm in the
direction of the arrow and tighten it with the hex key to the
required torque (see chapter 8).
Screw the pedal marked “L” into the left crank arm in the
direction of the arrow and tighten it with the hex key to the
required torque (see chapter 8).
